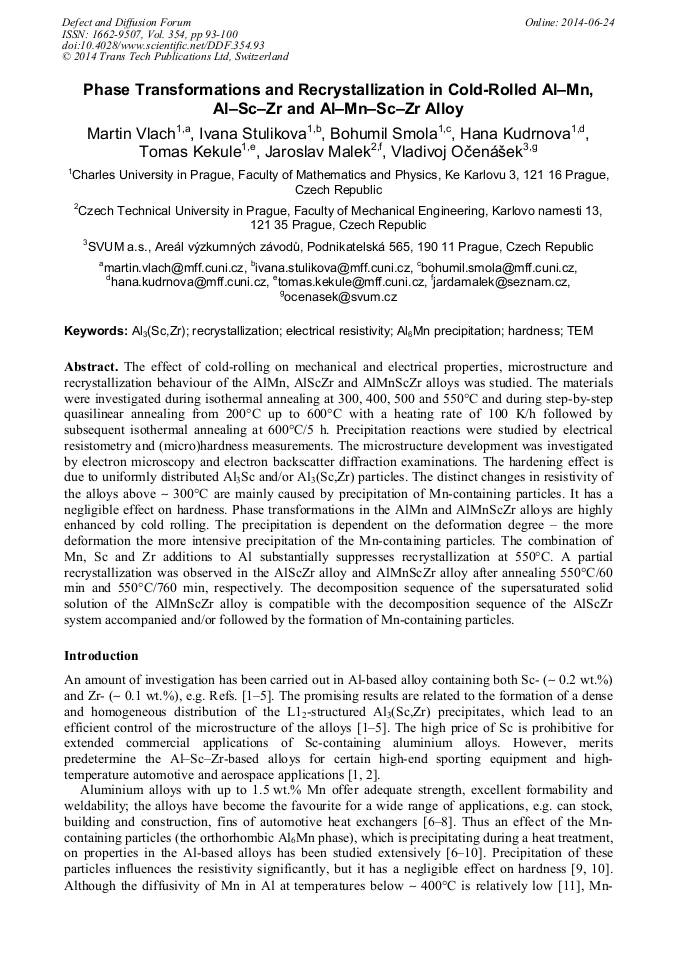

Phase Transformations and Recrystallization in Cold-Rolled Al–Mn, Al–Sc–Zr and Al–Mn–Sc–Zr Alloy

Abstract:

The effect of cold-rolling on mechanical and electrical properties, microstructure and recrystallization behaviour of the AlMn, AlScZr and AlMnScZr alloys was studied. The materials were investigated during isothermal annealing at 300, 400, 500 and 550°C and during step-by-step quasilinear annealing from 200°C up to 600°C with a heating rate of 100 K/h followed by subsequent isothermal annealing at 600°C/5 h. Precipitation reactions were studied by electrical resistometry and (micro) hardness measurements. The microstructure development was investigated by electron microscopy and electron backscatter diffraction examinations. The hardening effect is due to uniformly distributed Al₃Sc and/or Al₃(Sc,Zr) particles. The distinct changes in resistivity of the alloys above ∼ 300°C are mainly caused by precipitation of Mn-containing particles. It has a negligible effect on hardness. Phase transformations in the AlMn and AlMnScZr alloys are highly enhanced by cold rolling. The precipitation is dependent on the deformation degree – the more deformation the more intensive precipitation of the Mn-containing particles. The combination of Mn, Sc and Zr additions to Al substantially suppresses recrystallization at 550°C. A partial recrystallization was observed in the AlScZr alloy and AlMnScZr alloy after annealing 550°C/60 min and 550°C/760 min, respectively. The decomposition sequence of the supersaturated solid solution of the AlMnScZr alloy is compatible with the decomposition sequence of the AlScZr system accompanied and/or followed by the formation of Mn-containing particles.

• Periodical: Defect and Diffusion Forum (Volume 354)
• Pages: 93-100
• DOI: https://doi.org/10.4028/www.scientific.net/DDF.354.93
• Online since: June 2014
• Authors: Martin Vlach*, Ivana Stulíková, Bohumil Smola, Hana Kudrnová, Tomáš Kekule, Jaroslav Málek, Vladivoj Očenášek
• Keywords: Al₃(Sc,Zr), Al₆Mn Precipitation, Electrical Resistivity, Hardness, Recrystallization, TEM

References

[1] L.S. Toropova, D.G. Eskin, M.L. Kharakterova and T.V. Dobatkina, in: Advanced Aluminium Alloys Containing Scandium – Structure and Properties, Gordon and Breach Science Publisher, The Netherlands 1998.

DOI: 10.4324/9781315097541

[2] Ch. Booth-Morrison, D.C. Dunand and D.N. Seidman: Acta Mater 59 (2011), p.7029.

[3] M. Vlach, I. Stulíková, B. Smola, N. Žaludová and J. Černá: J. Alloys Compd. 492 (2010), p.143.

DOI: 10.1016/j.jallcom.2009.11.126

[4] W. Lefebvre, F. Danoix, H. Hallem, B. Forbord, A. Bostel and K. Marthinsen: J. Alloys Compd. 470 (2009), p.107.

DOI: 10.1016/j.jallcom.2008.02.043

[5] M. Kolář, V. Očenášek, J. Uhlíř, I. Stulíková, B. Smola, M. Vlach, V. Neubert and K. Šperlink, Mater. Sci. Forum Vol. 567–568 (2008), p.357.

DOI: 10.4028/www.scientific.net/msf.567-568.357

[6] M. Karlik, T. Manik and H. Lauschmann: J. Alloys Compd. 515 (2012), p.108.

[7] M. Pokova, M. Cieslar and J. Lacaze: Acta Phys Pol A 122 (2012), p.625.

[8] Z. Jia, G. Hu, B. Forbord and J. K. Solberg: Mat. Sci. Eng. A 444 (2007), p.284.

[9] M. Vlach, I. Stulíková, B. Smola and N. Žaludová: Mater. Charact. 61 (2010), p.1400.

[10] M. Vlach, I. Stulikova, B. Smola, J. Piesova, H. Cisarova, S. Danis, J. Plasek, R. Gemma, D. Tanprayoon and V. Neubert: Mat. Sci. Eng. A 548 (2012), p.27.

DOI: 10.1016/j.msea.2012.03.063

[11] K.E. Knipling, D.C. Dunand and D.N. Seidman: Z. Metallkd. 97 (2006), p.246.

[12] M. Vlach, I. Stulikova, B. Smola, H. Cisarova, T. Kekule, J. Malek, D. Tanprayoon and V. Neubert: Defect and Diffusion Forum 334-335 (2013), p.161.

DOI: 10.4028/www.scientific.net/ddf.334-335.161

[13] P. Olafsson, R. Sandstrom and A. J. Karlsson: J. Mater. Sci. 32 (1997), p.4383.
