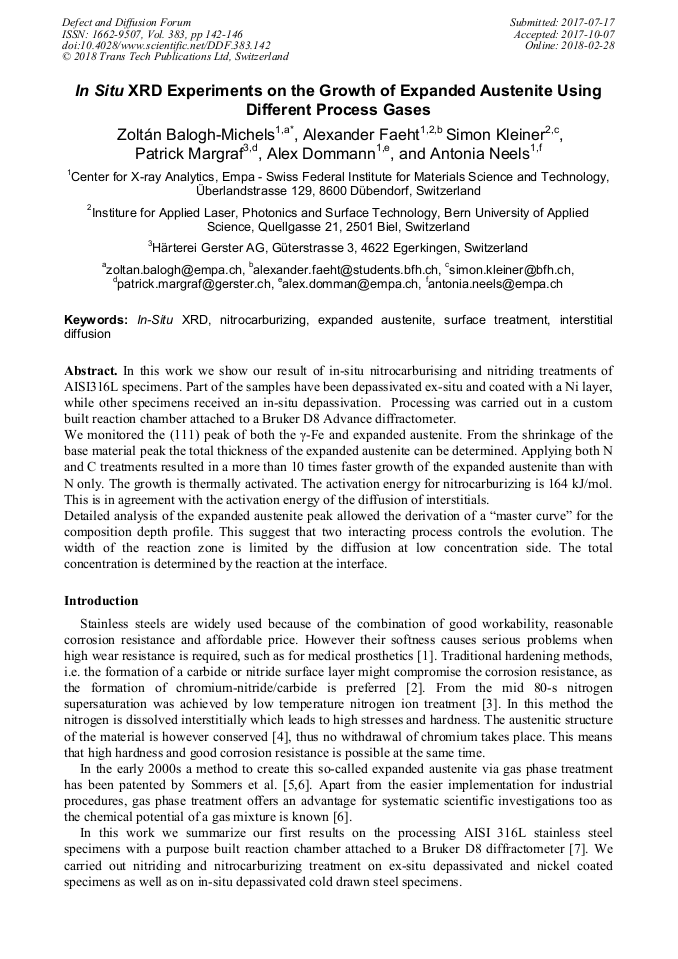

In Situ XRD Experiments on the Growth of Expanded Austenite Using Different Process Gases

Abstract:

In this work we show our result of in-situ nitrocarburizing and nitriding treatments AISI316L specimens. Part of the samples have been depassivated ex-situ and coated with a Ni layer, while other specimens received in-situ depassivation. Processing was carried out in a custom built reaction chamber attached to a Bruker D8 Advance diffractometer. We monitored the 111 peak of both the base material and expanded austenite. From the shrinkage of the base material peak the total thickness of the expanded austenite can be determined. Applying both N and C resulted in a more than 10 times faster growth of the expanded austenite than with N only. The growth is thermally activated. The activation energy for nitrocarburizing is 164 kJ/mol. This is in agreement with the activation energy of the diffusion of interstitials. Detailed analysis of the expanded austenite peak allowed the derivation of a “master curve” for the composition depth profile. This suggest that two interacting process controls the evolution. The width of the reaction zone is limited by the diffusion at low concentration side. The total concentration is determined by the reaction at the interface.

• Periodical: Defect and Diffusion Forum (Volume 383)
• Pages: 142-146
• DOI: https://doi.org/10.4028/www.scientific.net/DDF.383.142
• Online since: February 2018
• Authors: Zoltán Balogh-Michels*, Alexander Faeht, Simon Kleiner, Patrick Margraf, Alex Dommann, Antonia Neels
• Keywords: Expanded Austenite, In Situ XRD, Interstitial Diffusion, Nitrocarburizing, Surface Treatment

References

[1] J. Buhagiar, H. Dong, T. Bell, Low temperature plasma surface alloying of medical grade austenitic steel with carbon and nitrogen, Surf. Eng. 23 (2007) 313-317.

DOI: 10.1179/174329407x215195

[2] J.R. Davis, ASM Speciality Handbook: Stainless steels, ASM International, (1994).

[3] K. Ichii, K. Fujimura, T. Takase, Structure of the nitride layer of 18-8 stainless steel, Technol. Rep. Kansai Uiv. 27 (1986) 135-144.

[4] T. Christiansen, M.A.J. Somers, On the crystallographic structure of S-phase, Scripta Mater. 50 (2004) 35-37.

[5] M.A.J. Somers, T. Christiansen, P. Møller, Danish Patent DK174707B1 and PCT/DK03/00497.

[6] T. Christiansen, M.A.J. Somers, Controlled Dissolution of Colossal Quantities of Nitrogen in Stainless Steel, Metall. Mater. Trans. A 37 (2006) 675-682.

DOI: 10.1007/s11661-006-0039-5

[7] Z. Balogh-Michels, A. Faeht, S. Kleiner, A. von Känel, J. -M. Rufer, A. Dommann, P. Margraf, G. Tschopp, A. Neels, In-situ kinetics study on the growth of expanded austenite in AISI 316L stainless steels by XRD, J. Appl. Phys., 122, 025111 (2017).

DOI: 10.1063/1.4993189

[8] O. Öztürk, D.L. Williamson, Phase and composition depth distribution analyses of low energy high flux N implanted stainless steel, J. Appl. Phys. 77 (1995) 3839.

DOI: 10.1063/1.358561

[9] T. Christiansen, M.A.J. Somers, Determination of the concentration dependent diffusion coefficient of nitrogen in expanded austenite, Int. J. Mater. Res., 99 (2008) 999-1005.

DOI: 10.3139/146.101729

[10] D. Manova, S. Mändl, J.W. Gerlach, D. Hirsch, H. Neumann, B. Rauschenbach, In situ x-ray diffraction investigations during low energy ion nitriding of austenitic stainless steel grade 1. 4571, J. Phys. D: Appl. Phys., 47 (2014) 365301.

DOI: 10.1088/0022-3727/47/36/365301

[11] U. Gösele, K.N. Tu, Growth kinetics of planar binary diffusion couples: Thin-film case" versus "bulk cases, J. Appl. Phys. 53 (1982) 3252-3260.

DOI: 10.1063/1.331028

[12] Z. Erdélyi, D.L. Beke, P. Nemes, G.A. Langer, On the validity of the continuum approach for nonlinear diffusional mixing of multilayers, Philos. Mag. 79 (1999) 1757-1768.

DOI: 10.1080/01418619908210390

[13] Z. Balogh and G. Schmitt, Diffusion in Metals and Alloys, in D.E. Laughlin and K. Hono (Eds), Physical Metallurgy Ed. 5, Elsevier, Amsterdam, 2014, Ch. 5. 7. 1 pp.525-535.

[14] B.E. Deal, A.S. Grove, General relationship for the thermal oxidation of silicon, J. Appl. Phys. 36 (1965) 3770-3778.

[15] P. Thibaux, A. Métenier, C. Xhoffer. Metall., Carbon Diffusion Measurement in Austenite in the Temperature Range 500 °C to 900 °C, Mater. Trans. A 38 (2007) 1169-1176.

DOI: 10.1007/s11661-007-9150-5

[16] R.P. Smith, Diffusivity of carbon in gamma iron-cobalt alloys, Trans AIME, 230 (1964) 476.

[17] D. Wu, Y. Ge, H. Kahn, F. Ernst, A.H. Heuer, Diffusion profiles after nitrocarburising austenitic stainless steel, Surf. Coat. Technol. 279 (2015) 180-185.

DOI: 10.1016/j.surfcoat.2015.08.048
