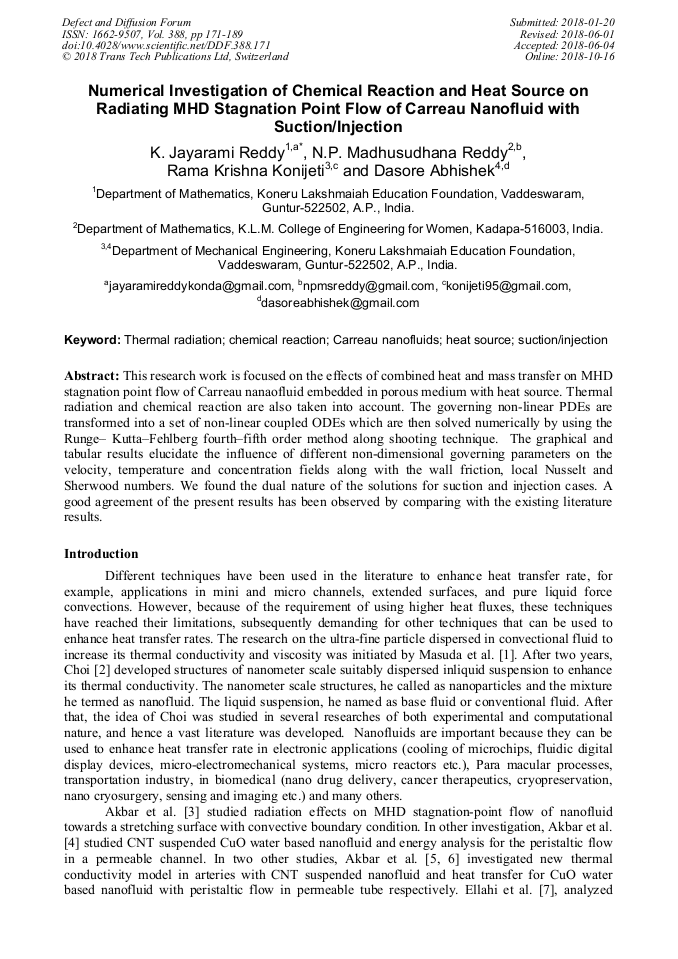

Numerical Investigation of Chemical Reaction and Heat Source on Radiating MHD Stagnation Point Flow of Carreau Nanofluid with Suction/Injection

Abstract:

This research work is focused on the effects of combined heat and mass transfer on MHD stagnation point flow of Carreau nanaofluid embedded in porous medium with heat source. Thermal radiation and chemical reaction are also taken into account. The governing non-linear PDEs are transformed into a set of non-linear coupled ODEs which are then solved numerically by using the Runge– Kutta–Fehlberg fourth–fifth order method along shooting technique. The graphical and tabular results elucidate the influence of different non-dimensional governing parameters on the velocity, temperature and concentration fields along with the wall friction, local Nusselt and Sherwood numbers. We found the dual nature of the solutions for suction and injection cases. A good agreement of the present results has been observed by comparing with the existing literature results.

• Periodical: Defect and Diffusion Forum (Volume 388)
• Pages: 171-189
• DOI: https://doi.org/10.4028/www.scientific.net/DDF.388.171
• Online since: October 2018
• Authors: Konda Jayarami Reddy*, N.P. Madhusudhana Reddy, Rama Krishna Konijeti, Abhishek Dasore
• Keywords: Carreau Nanofluids, Chemical Reaction, Heat Source, Suction/Injection, Thermal Radiation

References

[1] H. Masuda, A. Ebata, K. Teramae and N. Hishinuma, Alternation of thermal conductivity and viscosity of liquid by dispersing ultra-fine particles, NetsuBussei 4, (1993), 227-233.

DOI: 10.2963/jjtp.7.227

[2] S.U.S. Choi, Enhancing thermal conductivity of fluids with nanoparticle, in: D.A. Siginer, H.P. Wang (Eds.), Developments and Applications of Non-Newtonian Flows, ASME FED, 66, (1995), 99-105.

[3] N.S. Akbar, S. Nadeem, R. UlHaq and Z.H. Khan, Radiation effects on MHD stagnation-point flow of nanofluid towards a stretching surface with convective boundary condition, Chin. J. Aeronaut. 26 (6), (2013), 1389-1397.

DOI: 10.1016/j.cja.2013.10.008

[4] N. S. Akbar, M. Raza and R. Ellahi, CNT suspended CuO + H2O nano fluid and energy analysis for the peristaltic flow in a permeable channel, Alexandria Engineering Journal, 54, (2015), 623-633.

DOI: 10.1016/j.aej.2015.05.009

[5] N.S Akbar, M. Raza and R. Ellahi, Anti-bacterial applications for new thermal conductivity model in arteries with CNT suspended nanofluid, Vol. 16 (22), (2016), 1650063-1 to 1650063-14.

DOI: 10.1142/s0219519416500639

[6] N.S Akbar, M. Raza and R. Ellahi, Copper oxide nanoparticles analysis with water as base fluid for peristaltic flow in permeable tube with heat transfer, Computer Methods and Programs in Biomedicine, Vol. 130, (2016), 22-30.

DOI: 10.1016/j.cmpb.2016.03.003

[7] R. Ellahi, M. Hassan, A. Zeeshan and Ambeen A Khan, Shape effects of nanoparticles suspended in HFE-7100 over wedge with entropy generation and mixed convection, Vol. 6, (2016), 641-651.

DOI: 10.1007/s13204-015-0481-z

[8] R. Ellahi, M. Hassan and A. Zeeshan, Aggregation effects on water base nano fluid over permeable wedge in mixed convection, Asia-Pacific Journal of Chemical Engineering, 11, (2016), 179-186.

DOI: 10.1002/apj.1954

[9] R. Ellahi, M. Hassan and A. Zeeshan, Mechanisms of different nanoclusters in nano based fluids with natural convection and variable surface, Mathematical Sciences Letters, 5(1), (2016), 1-7.

DOI: 10.18576/msl/050101

[10] M. Akbarzadeh, S. Rashidi, M. Bovand and R. Ellahi, A sensitivity analysis on thermal and pumping power for the flow of nanofluid inside a wavy channel, Journal of Molecular Liquids, Vol. 220, (2016), 1-13.

DOI: 10.1016/j.molliq.2016.04.058

[11] A. Zeeshan and R. Ellahi, Shape effect of nanosize particles in unsteady mixed convection flow of nanofluid over disk with entropy generation, Journal of Process Mechanical Engineering, Sagepub.

DOI: 10.1177/0954408916646139

[12] A. Zeeshan, A. Majeed and R. Ellahi, Unsteady ferromagnetic liquid flow and heat transfer analysis over a stretching sheet with the effect of dipole and prescribed heat flux, Int. Journal of Mechanics in Medicine and Biology, Vol. 223, (2016).

DOI: 10.1016/j.molliq.2016.07.145

[13] Sidra Aman, I. Khan, Z. Ismail and M.Z. Salleh, impacts of gold nanoparticles on MHD mixed convection Poiseuille flow of nanofluid passing through a porous medium in the presence of thermal radiation, thermal diffusion and chemical reaction, Neural Comput & Applic. DOI 10.1007/s00521-016-2688-7.

DOI: 10.1007/s00521-016-2688-7

[14] Nor AthirahMohdZin, I. Khan and S. Sharidan, the impact silver nanoparticles on MHD free convection flow of Jeffrey fluid over an oscillating vertical plate embedded in a porous medium, Journal of Molecular Liquids, 222, (2016), 138–150.

DOI: 10.1016/j.molliq.2016.06.098

[15] Asma Khalid, I. Khan and S. Sharidan, Heat transfer in ferrofluid with cylindrical shape nanoparticles past a vertical plate with ramped wall temperature embedded in a porous medium, Journal of Molecular Liquids, 221, (2016), 1175–1183.

DOI: 10.1016/j.molliq.2016.06.105

[16] Ali, F., MadehaGohar and I. Khan, MHD flow of water-based Brinkman type nanofluid over a vertical plate embedded in a porous medium with variable surface velocity, temperature and concentration. Journal of Molecular Liquids, 223, (2016), 412-419.

DOI: 10.1016/j.molliq.2016.08.068

[17] M. Sheikholeslami and R. Ellahi, Electrohydrodynamic nanofluid hydrothermal treatment in an enclosure with sinusoidal upper wall, Applied Sciences, Vol. 5, (2015), 294-306.

DOI: 10.3390/app5030294

[18] M. Sheikholeslami and M.M. Rashidi, Effect of space dependent magnetic field on free convection of Fe3O4-water nanofluid, Journal of the Taiwan Institute of Chemical Engineers, 56, (2015), 6-15.

DOI: 10.1016/j.jtice.2015.03.035

[19] M. Sheikholeslami and M.M. Rashidi, Ferrofluid heat transfer treatment in the presence of variable magnetic field, Eur. Phys. J. Plus, 130, (2015), 115.

DOI: 10.1140/epjp/i2015-15115-4

[20] M. Sheikholeslami and S. Abelman, Two phase simulation of nanofluid flow and heat transfer in an annulus in the presence of an axial magnetic field, IEEE Transactions on Nanotechnology 14 (3), (2015), 561-569.

DOI: 10.1109/tnano.2015.2416318

[21] U. Khan, S.T. Mohyud-Din and B. B. Mohsin, Convective heat transfer and thermo-diffusion effects on flow of nanofluid towards a permeable stretching sheet saturated by a porous medium, Aerospace Science and Technology, 50, (2016), 196-203.

DOI: 10.1016/j.ast.2015.12.032

[22] R. U. Haq, Z. H. Khan, W. A. Khan and I. A. Shah, Viscous dissipation effects in water driven carbon nanotubes along a stream wise and cross flow direction, International Journal of Chemical Reactor Engineering.

DOI: 10.1515/ijcre-2016-0059

[23] P. Singh and M. Kumar, Mass transfer in MHD flow of alumina water nanofluid over a flat plate under slip conditions, Alexandria Eng. Journal, 45, (2015), 383-387.

DOI: 10.1016/j.aej.2015.04.005

[24] R. Kandasamy, R. Mohamad and M. Ismoen, Impact of chemical reaction on Cu, Al2O3 and SWCNTs-nanofluid flow under slip conditions, Eng. Sci. & Tech. An Int. Journal, 19, (2016), 700-709.

DOI: 10.1016/j.jestch.2015.11.011

[25] A. K. Pandey and M. Kumar, Natural convection and thermal radiation influence on nanofluid flow over a stretching cylinder in a porous medium with viscous dissipation, Alexandria Eng. Journal, (2016).

DOI: 10.1016/j.aej.2016.08.035

[26] W. A. Khan and I. Pop, Boundary-layer flow of a nanofluid past a stretching sheet Int. J. Heat Mass Transfer, 53, (2010), 2477-2483.

DOI: 10.1016/j.ijheatmasstransfer.2010.01.032

[27] O. D. Makinde and A. Aziz, Boundary layer flow of a nanofluid past a stretching sheet with a convective boundary conditions, Int. J. Thermal Sci., 50, (2011), 1326-1332.

DOI: 10.1016/j.ijthermalsci.2011.02.019

[28] S. Nadeem and N. S. Akbar, Effects of heat and mass transfer on peristaltic flow of Carreau fluid in a vertical annulus, Z. Naturforsc. 65a, (2010), 781–792.

DOI: 10.1515/zna-2010-1004

[29] C. Sulochana., G.P Ashwinkumar and N. Sandeep, Transpiration effect on stagnation-point flow of a Carreau nanofluid in the presence of thermophoresis and Brownian motion, Alexandria Engineering Journal. 55, (2016), 1151 – 1157.

DOI: 10.1016/j.aej.2016.03.031

[30] Jayarami Reddy Konda, Madhusudhana N.P., Ramakrishna Konijeti, MHD mixed convection flow of radiating and chemically reactive Casson nanofluid over a nonlinear permeable stretching sheet with viscous dissipation and heat source, Multidiscipline Modeling in Materials and Structures, (2018).

DOI: 10.1108/mmms-10-2017-0127

[31] N.S. Akbar, S. Nadeem and Z. H. Khan, Numerical simulation of peristaltic flow of a Carreau nanofluid in an asymmetric channel, Alex. Eng. J., 53 (2014), 191–197.

DOI: 10.1016/j.aej.2013.10.003

[32] A. Riaz, R. Ellahi and S. Nadeem, Peristaltic transport of a Carreau fluid in a compliant rectangular duct Alex. Eng. J., 53 (2014), 475–484.

DOI: 10.1016/j.aej.2014.01.005

[33] S. Nadeem, A. Riaz, R. Ellahi and N.S. Akbar, Series solution of unsteady peristaltic flow of a Carreau fluid in eccentric cylinders, Ain Shams Eng. J., 5 (2014), 293–304.

DOI: 10.1016/j.asej.2013.09.005

[34] T.R. Mahapatra, N. Samir Kumar, Stability of dual solutions in stagnation-point flow and heat transfer over a porous shrinking sheet with thermal radiation, Meccanica 48 (1) (2013) 23–32.

DOI: 10.1007/s11012-012-9579-5
