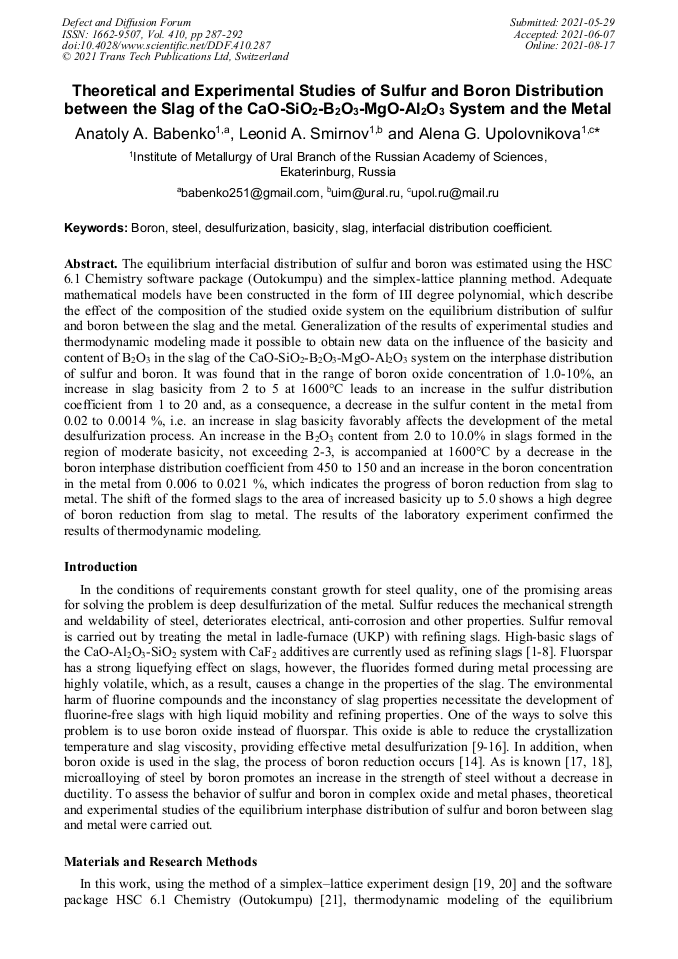

Theoretical and Experimental Studies of Sulfur and Boron Distribution between the Slag of the CaO-SiO₂-B₂O₃-MgO-Al₂O₃ System and the Metal

Abstract:

The equilibrium interfacial distribution of sulfur and boron was estimated using the HSC 6.1 Chemistry software package (Outokumpu) and the simplex-lattice planning method. Adequate mathematical models have been constructed in the form of III degree polynomial, which describe the effect of the composition of the studied oxide system on the equilibrium distribution of sulfur and boron between the slag and the metal. Generalization of the results of experimental studies and thermodynamic modeling made it possible to obtain new data on the influence of the basicity and content of B₂O₃ in the slag of the CaO-SiO₂-B₂O₃-MgO-Al₂O₃ system on the interphase distribution of sulfur and boron. It was found that in the range of boron oxide concentration of 1.0-10%, an increase in slag basicity from 2 to 5 at 1600°C leads to an increase in the sulfur distribution coefficient from 1 to 20 and, as a consequence, a decrease in the sulfur content in the metal from 0.02 to 0.0014 %, i.e. an increase in slag basicity favorably affects the development of the metal desulfurization process. An increase in the B₂O₃ content from 2.0 to 10.0% in slags formed in the region of moderate basicity, not exceeding 2-3, is accompanied at 1600°C by a decrease in the boron interphase distribution coefficient from 450 to 150 and an increase in the boron concentration in the metal from 0.006 to 0.021 %, which indicates the progress of boron reduction from slag to metal. The shift of the formed slags to the area of ​​increased basicity up to 5.0 shows a high degree of boron reduction from slag to metal. The results of the laboratory experiment confirmed the results of thermodynamic modeling.

• Periodical: Defect and Diffusion Forum (Volume 410)
• Pages: 287-292
• DOI: https://doi.org/10.4028/www.scientific.net/DDF.410.287
• Online since: August 2021
• Authors: Anatolij A. Babenko, Leonid A. Smirnov, Alena G. Upolovnikova*
• Keywords: Basicity, Boron, Desulfurization, Interfacial Distribution Coefficient, Slag, Steel

References

[1] D.A. Dyudkin, V.V. Kisilenko, Steel Production, Volume 3,Out-of-furnace Steel Metallurgy, Teplotekhnik, Moscow, (2010).

[2] S.M. Chumakov, A.M. Lamukhin, S.D. Zinchenko, The concept of production of low-sulfur steels at OAO Severstal, taking into account the technological aspects, in: Proceedings of the Sixth Congress of Steel-smelters, JSC Chermetinformation, Moscow, 2001, pp.63-66.

[3] G.A. Sokolov, Out-of-furnace Refining of Steel, Metallurgiya, Moscow, (1977).

[4] A.A. Akberdin, I.S. Kulikov, V.A. Kim et al., Physical Properties of Melts of the CaO-SiO2-Al2O3-MgO-CaF2 System, Metallurgiya, Moscow,(1987).

[5] D.Ya. Povolotsky, V.E. Roshchin, V.P. Gribanov et al., The effect of SiO2 on the volatility of slags in the CaF2-MgO-Al2O3 system, Izvestiya VUZov. Ferrous Metallurgy. 8 (1982) 39-42.

[6] P. Yan, X. Guo, S. Huang, J.V. Dyck, M. Guo, B. Blanpain, Desulphurisation of stainless steel by using CaO–Al2O3 based slags during secondary metallurgy, ISIJ International. 53 (2013) 459-467.

DOI: 10.2355/isijinternational.53.459

[7] K.Y. Ko, J.H. Park, Effect of CaF2 addition on the viscosity and structure of CaO– SiO2–MnO slags, ISIJ International. 53 (2013) 958-965.

DOI: 10.2355/isijinternational.53.958

[8] D. Takahashi, M. Kamo, Y. Kurose, H. Nomura, Deep steel desulphurisation technology in ladle furnace at KSC, Ironmaking and Steelmaking. 30 (2003) 116-119.

DOI: 10.1179/030192303225001711

[9] W. Hongming, Z. Tingwing, Z. Hua, Effect of B2O3 on melting temperature, Viscosity and desulfurization capacity of CaO-based refinning flux, ISIJ International. 51(2011) 702-708.

[10] A.A. Akberdin, G.M. Kireeva, I.A. Medvedovskaya, Influence of B2O3 on the viscosity of slags of the system CaO-SiO2-Al2O3, Izvestiya AN SSSR. Metally. 3 (1986) 55-56.

[11] A.A. Babenko, V.I. Zhuchkov, A.G. Upolovnikova, I.N. Kel, The study of the viscosity of slags of the CaO-SiO2-B2O3-25%Al2O3-8%MgO, Izvestiya VUZov. Ferrous Metallurgy. 60 (2017) 820-825.

DOI: 10.17073/0368-0797-2017-10-820-825

[12] A.A. Babenko, R.R. Shartdinov, A.G. Upolovnikova, A.N. Smetannikov, V.S. Gulyakov, Physical properties of CaO–SiO2–B2O3 slags containing 15%Al2O3 and 8%MgO, Steel Transl. 49 (2019) 667-670.

DOI: 10.3103/s0967091219100036

[13] A.A. Babenko, R.R. Shartdinov, A.G. Upolovnikova, A.N. Smetannikov, L.Yu. Mikhailova, Effect of basicity and chromium oxide on the viscosity of boron-containing slags, IOP Conference Series: Materials Science and Engineering. 966 (2020) 012012.

DOI: 10.1088/1757-899x/966/1/012012

[14] A.A. Babenko, L.A. Smirnov, A.G. Upolovnikova, Fundamental research as a basis for the creation of new technologies in steel ladle metallurgy, Materials Science Forum. 946 (2019) 493-499.

DOI: 10.4028/www.scientific.net/msf.946.493

[15] A.A. Babenko, A.N. Smetannikov, V.I. Zhuchkov, A.G. Upolovnikova, Influence of B2O3 and basicity of CaO–SiO2–B2O3–Al2O3 slag on the saturation concentration of magnesium oxide, Steel in Translation. 49 (2019) 87-90.

DOI: 10.3103/s0967091219020037

[16] L. Liu, G. Wang, Sh. Wang, Y. Dong, Y. Chai, Calculation of phase diagram of CaO-SiO2-Al2O3-MgO-B2O3 refining slag without CaF2, Advanced Materials Research. 512-515 (2012) 1558-1563.

DOI: 10.4028/www.scientific.net/amr.512-515.1558

[17] M.V. Bobylev, E.G. Koroleva, A.M. Shtannikov, Promising sparingly alloyed boron-bearing steels for the production of high-strength fasteners, Met. Sci. Heat Treat. 47 (2005) 210-214.

DOI: 10.1007/s11041-005-0053-z

[18] N.A. Bogdanov, A.B. Sychkov, I.V. Derevyanchenko et al., Development and introduction of a technology for making boron-bearing steels, Metallurgist. 43 (1999) 71-75.

DOI: 10.1007/bf02463523

[19] V.A. Kim, E.I. Nikolai, A.A. Akberdin, I.S. Kulikov, The planning experiment the study of physical - chemical properties of metallurgical slags: Toolkit, Nauka, Alma-Ata, (1989).

[20] A.A. Zharmenov, D.M. Mukanov, A.A. Babenko, M.K. Balapanov, V.A. Kim et al., Mathematical modeling and physicochemical properties of alumina slags, in: Complex Processing of Mineral Raw Materials of Kazakhstan,, T.4, Folio, Astana, (2003).

[21] A. Roine, HSC 6.0 chemistry reactions and equilibrium software with extensive thermochemical database and flowshut, Pori.: Outokumpu Research Oy, (2006).
