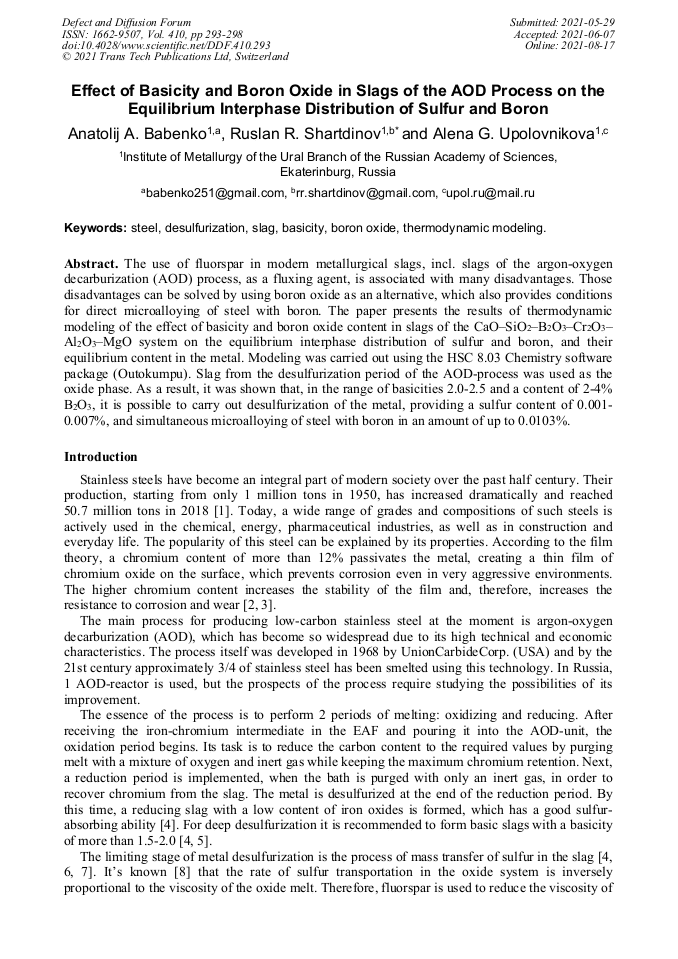

Effect of Basicity and Boron Oxide in Slags of the AOD Process on the Equilibrium Interphase Distribution of Sulfur and Boron

Abstract:

The use of fluorspar in modern metallurgical slags, incl. slags of the argon-oxygen decarburization (AOD) process, as a fluxing agent, is associated with many disadvantages. Those disadvantages can be solved by using boron oxide as an alternative, which also provides conditions for direct microalloying of steel with boron. The paper presents the results of thermodynamic modeling of the effect of basicity and boron oxide content in slags of the CaO–SiO₂–B₂O₃–Cr₂O₃–Al₂O₃–MgO system on the equilibrium interphase distribution of sulfur and boron, and their equilibrium content in the metal. Modeling was carried out using the HSC 8.03 Chemistry software package (Outokumpu). Slag from the desulfurization period of the AOD-process was used as the oxide phase. As a result, it was shown that, in the range of basicities 2.0-2.5 and a content of 2-4% B₂O₃, it is possible to carry out desulfurization of the metal, providing a sulfur content of 0.001-0.007%, and simultaneous microalloying of steel with boron in an amount of up to 0.0103%.

• Periodical: Defect and Diffusion Forum (Volume 410)
• Pages: 293-298
• DOI: https://doi.org/10.4028/www.scientific.net/DDF.410.293
• Online since: August 2021
• Authors: Anatolij A. Babenko, Ruslan R. Shartdinov*, Alena G. Upolovnikova
• Keywords: Basicity, Boron Oxide, Desulfurization, Slag, Steel, Thermodynamic Modeling

References

[1] Information on http://www.worldstainless.org/Files/issf/non-image-files/PDF/ISSF_Stainless_Steel_in_Figures_2019_English_public_version.pdf (ISSF Stainless Steel in Figures 2019).

[2] F. Crane, J. Charles, J. Furness, Selection and Use of Engineering Materials, third ed., Butterworth-Heinemann, London, (1997).

[3] C. Trépanier, M. Tabrizian, L. Yahia, L. Bilodeau, D.L. Piron, Effect of modification of oxide layer on NiTi stent corrosion resistance. J. Biomed. Mater. Res. 43 (1998) 433-440.

DOI: 10.1002/(sici)1097-4636(199824)43:4<433::aid-jbm11>3.0.co;2-#

[4] O.K. Tokovoj, Argon-Oxygen Decarburization of Stainless Steel: Monograph, Izdatel'skij centr YUUrGU, Chelyabinsk, (2015).

[5] S.K. Mehlman, Pneumatic Steelmaking Volume Two: The AOD Process, Iron and Steel Society, Warrendale, PA, (1991).

[6] A.A. Zhuhovickij, L.A. Shvarcman, Physical Chemistry, Metallurgiya, Moscow, (1976).

[7] V.I. Yavojskij, A.V. Yavojskij, Scientific Foundations of Modern Steel Production Processes, Metallurgiya, Moscow, (1987).

[8] S.I. Popel', A.I. Sotnikov, V.N. Boronenkov, Theory of Metallurgical Processes, Metallurgiya, Moscow, (1986).

[9] I.A. Magidson, A.S. Morozov, M.F. Sidorenko et al., Viscosity of chromium slags, Izvestiya. Ferrous Metallurgy. 11 (1973) 61-64.

[10] Z. Kalicka, E. Kawecka-Cebula, K. Pytel, Application of the Iida model for estimation of slag viscosity for Al2O3-Cr2O3-CaO-CaF2 systems, Arch. Metall. Mater. 54 (2009) 179-187.

[11] D.A. Dyudkin, V.V. Kisilenko, Secondary Metallurgy, Teplotekhnik, Moscow, (2010).

[12] A.A. Akberdin, I.S. Kulikov, V.A. Kim et al., Physical Properties of Melts of the CaO-Al2O3-SiO2-MgO-CaF2 System, Metallurgiya, Moscow, (1987).

[13] D.Ya. Povolockij, V.E. Roshchin, V.P. Gribanov et al., Effect of SiO2 on the volatility of slags of the Al2O3-Al2O3-CaF2 system, Izvestiya. Ferrous Metallurgy. 8 (1982) 39-42.

[14] A.I. Zajcev, B.M. Mogutnov, E.H. Shahpazov, Physical Chemistry of Metallurgical Slags, Interkontakt Nauka, Moscow, (2008).

[15] W. Hongming, Z. Tingwang, Z. Hua, Effect of B2O3 on melting temperature, viscosity and desulfurization capacity of CaO-based refining flux, ISIJ Int. 51 (2011) 702-706.

DOI: 10.2355/isijinternational.51.702

[16] A.A. Akberdin, G.M. Kireeva, I.A. Medvekovskaya, Vliyanie B2O3 na vyazkost' shlakov sistemy CaO-Al2O3-SiO2 (in Russian) Effect of B2O3 on the viscosity of slags of the CaO-Al2O3-SiO2 system, Izvestiya AN SSSR. Metally. 3 (1986) 55-56.

DOI: 10.24892/rijie/20180405

[17] A.A. Babenko, S.A. Istomin, E.V. Protopopov, A.V. Sychev, V.V. Ryabov, Viscosity of CaO – SiO2 – Al2O3 – MgO – B2O3 slag system, Izvestiya. Ferrous Metallurgy. 57 (2014) 41-43.

DOI: 10.17073/0368-0797-2014-2-41-43

[18] W. Hong-Ming, L. Gui-Rong, L. Bo, Z. Xue-Jun, Y. Yong-qi, Effect of B2O3 on melting temperature of CaO-based ladle refining slag, ISIJ Int. 17 (2010) 18-22.

[19] A.A. Akberdin, G.M. Kireeva, I.A. Medvedovskaya et al., Atlas of Viscosity Diagrams of Boron-Containing Slags, № 3971–B, Dep. v VINITI, (1986).

[20] W. Wang, D. Cai, L. Zhang, A Review of fluorine-free mold flux development, ISIJ Int. 58 (2018) 1957-1964.

DOI: 10.2355/isijinternational.isijint-2018-232

[21] Ya.E. Gol'dshtejn, V.G. Mizin, Modification and Microalloying of Pig Iron and Steel, Metallurgiya, Moscow, (1986).

[22] V.A. Golubcov, V.V. Lunev, Steel Modification for Castings and Ingots, ZNGU, Chelyabinsk-Zaporozh'e, (2009).

[23] V.L. Pilyushenko, V.A. Vihlevshchuk, Scientific and Technological Basis for Steel Microalloying, Metallurgiya, Moscow, (2000).

[24] M. Kulka, D. Mikołajczak, N. Makuch, P. Dziarski, D. Przestacki, D. Panfil-Pryka, A. Piasecki, A. Miklaszewski, Laser surface alloying of austenitic 316L steel with boron and some metallic elements: Microstructure, Materials. 13 (2020) 4852.

DOI: 10.3390/ma13214852

[25] J. Bai, Y. Cui, J. Wang, N. Dong, M. Saqlain Qurashi, H. Wei, Y. Yang, P. Han, Effect of boron addition on the precipitation behavior of S31254, Metals. 8 (2018) 497.

DOI: 10.3390/met8070497

[26] D.A. Mortimer, Segregation of boron to grain boundaries in iron and a stainless steel, J. Phys. Colloques. 36 (1975) C4-137-C4-140.

DOI: 10.1051/jphyscol:1975414

[27] M. Cetin, E. Ölmez, Corrosion, wear and mechanical properties of boron added cast 304 stainless steel, Prot Met Phys Chem Surf. 56 (2020) 619-627.

DOI: 10.1134/s2070205120030089

[28] A.A. Babenko, L.A. Smirnov, V.I. Zhuchkov, A.V. Sychev, A.G. Upolovnikova, Using of simplex lattices method for diagramming composition-viscosity of the slag system CaO-SiO2-Al2O3-MgO-B2O3, Butlerov Communications. 48 (2016) 40-44.

DOI: 10.1134/s0036029517050020

[29] A.A. Babenko, V.I. Zhuchkov, A.G. Upolovnikova, A.A. Konyshev, L.I. Leont'ev, Equilibrium boron distribution between Fe–C–Si–Al melt and boron-bearing slag, Steel Transl. 47 (2017) 599-604.

DOI: 10.3103/s0967091217090029

[30] Information on http://www.chemistry-software.com/pdf/HSC/full%20manual%20HSC%20Chemistry%205.pdf.
