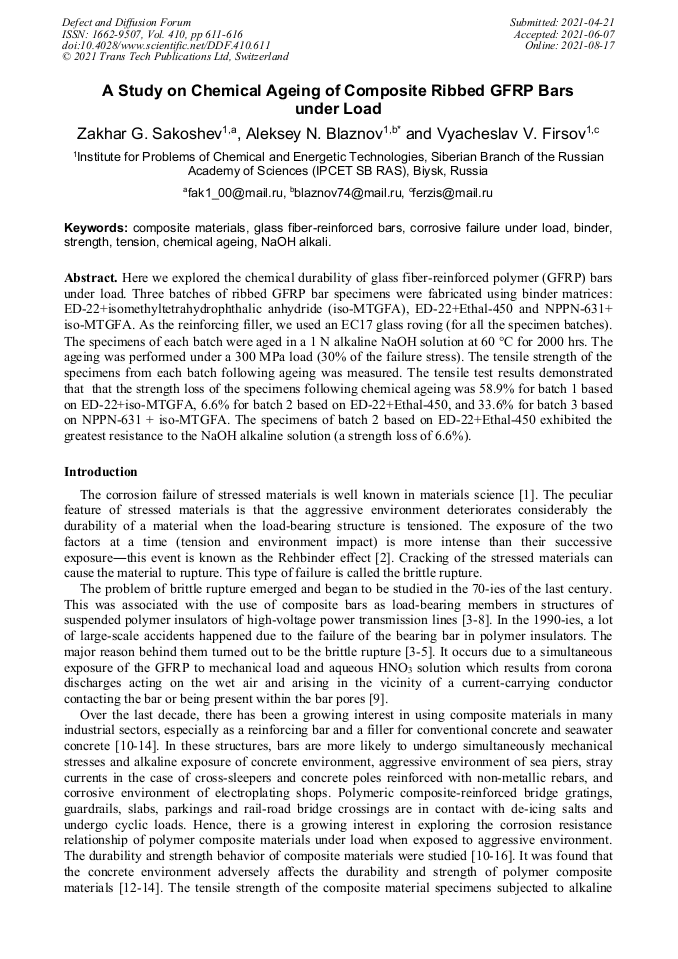

A Study on Chemical Ageing of Composite Ribbed GFRP Bars under Load

Abstract:

Here we explored the chemical durability of glass fiber-reinforced polymer (GFRP) bars under load. Three batches of ribbed GFRP bar specimens were fabricated using binder matrices: ED-22+isomethyltetrahydrophthalic anhydride (iso-MTGFA), ED-22+Ethal-450 and NPPN-631+ iso-MTGFA. As the reinforcing filler, we used an EC17 glass roving (for all the specimen batches). The specimens of each batch were aged in a 1 N alkaline NaOH solution at 60 °C for 2000 hrs. The ageing was performed under a 300 MPa load (30% of the failure stress). The tensile strength of the specimens from each batch following ageing was measured. The tensile test results demonstrated that that the strength loss of the specimens following chemical ageing was 58.9% for batch 1 based on ED-22+iso-MTGFA, 6.6% for batch 2 based on ED-22+Ethal-450, and 33.6% for batch 3 based on NPPN-631 + iso-MTGFA. The specimens of batch 2 based on ED-22+Ethal-450 exhibited the greatest resistance to the NaOH alkaline solution (a strength loss of 6.6%).

• Periodical: Defect and Diffusion Forum (Volume 410)
• Pages: 611-616
• DOI: https://doi.org/10.4028/www.scientific.net/DDF.410.611
• Online since: August 2021
• Authors: Zakhar G. Sakoshev, Aleksey N. Blaznov*, Vyacheslav V. Firsov
• Keywords: Binder, Chemical Ageing, Composite Material, Corrosive Failure Under Load, Glass Fiber-Reinforced Bars, NaOH Alkali, Strength, Tension

References

[1] G.V. Karpenko, I.I. Vasilenko, Corrosion Cracking of Steels, Tekhnika, Kiev, (1971).

[2] P.A. Rebinder, Physicochemical Mechanics, Znaniye, Moscow, (1958).

[3] A. Phillips, Survey of application of overhead transmission line polymer insulators in North America and summary of EPRI polymer insulator failure database, in: Proceedings of the World Conference and Exhibition on Insulators, Arresters and Bushings, Marbella, Spain, 2003, pp.147-157.

[4] Suspension and Tension Composite Insulators for Overhead Lines, in: CIGRE Working Group 10 of Study Committee 22, 1980, pp.22-80.

[5] L. Xiong, W. Shaon, F. Ju, Application and Evaluation of Composite Insulators in China. Applying New Technologies for Better Reliability and Lower Costs, in: Proceedings of the World Insulator Congress and Exibition, 2001, pp.29-42.

[6] Yu.N. Shumilov, Polymer insulators in Ukraine, Elektricheskiye Seti i Sistemy (Journal). 3 (2006) 25-31.

[7] B. Noble, S.J. Harris, M.J. Owen, Stress corrosion cracking of GRP pultruded rods in acid environments, J. Mater. Sci. 18 (1983) 1244-1254.

DOI: 10.1007/bf00551994

[8] A. Akhtar, J.S. Nadeau, J.Y. Wang, D.P. Romily, C. Taggart, Brittle Fracture of Nonceramic Insulators, Prepared by the British Columbia Hydro and Power Authority, Can. Elect. Assoc. Rep, (1986).

[9] M. Kumosa, L. Kumosa, D. Armentrout, Failure analyses of non-ceramic insulators: part i - brittle fracture characteristics, IEEE Electrical Insulation Magazine. 21(3) (2005) 14-27.

DOI: 10.1109/mei.2005.1437604

[10] Y. Hua, Sh. Yin, L. Feng, Bearing behavior and serviceability evaluation of seawater sea-sandconcrete beams reinforced with BFRP bars, Construction and Building Materials. 243 (2020) 118294.

DOI: 10.1016/j.conbuildmat.2020.118294

[11] Z. Dong, G. Wua, X.L. Zhao, H. Zhu, Y. Wei, Z. Yan, Mechanical properties of discrete BFRP needles reinforced seawater sea-sand concrete-filled GFRP tubular stub columns, Construction and Building Materials. 244 (2020) 118330.

DOI: 10.1016/j.conbuildmat.2020.118330

[12] M. Al Rifai, H. El-Hassan, T. El-Maaddawy, F. Abed, Durability of basalt FRP reinforcing bars in alkaline solution and moist concrete environments, Construction and Building Materials. 243 (2020) 118258.

DOI: 10.1016/j.conbuildmat.2020.118258

[13] D. Jia, Q. Guo, J. Mao, J. Lv, Z. Yang, Durability of glass fibre-reinforced polymer (GFRP) bars embedded in concrete under various environments. I: Experiments and analysis, Composite Structures. 234 (2020) 111687.

DOI: 10.1016/j.compstruct.2019.111687

[14] F. Guo, S. Al-Saadi, R.K. Singh Raman, X.L. Zhao, Durability of fiber reinforced polymer (FRP) in simulated seawater sea sand concrete (SWSSC) environment, Corrosion Science. 256 (2020) 119484.

DOI: 10.1016/j.corsci.2018.06.022

[15] A.N. Blaznov, A.S. Krasnova, A.A. Krasnov, M.E. Zhurkovsky, Geometric and mechanical characterization of ribbed FRP rebars, Polym. Test. 63 (2017) 434-439.

DOI: 10.1016/j.polymertesting.2017.09.006

[16] A.V. Markova, V.F. Savin, Y.B. Zharinov, A.N. Blaznov, Corrosion resistance tests of strained rods from polymer composite materials, Inorganic Materials. 47(15) (2011) 1713-1716.

DOI: 10.1134/s0020168511150118

[17] GOST R 31938-2012. Polymer Composite Rebar for Concrete Reinforcement. General specifications, Standartinform, Moscow, (2014).
