Influence of Chemical Carbon Microheterogeneity on Fatigue Crack Growth Parameters in Railway Wheel Steel

Abstract:

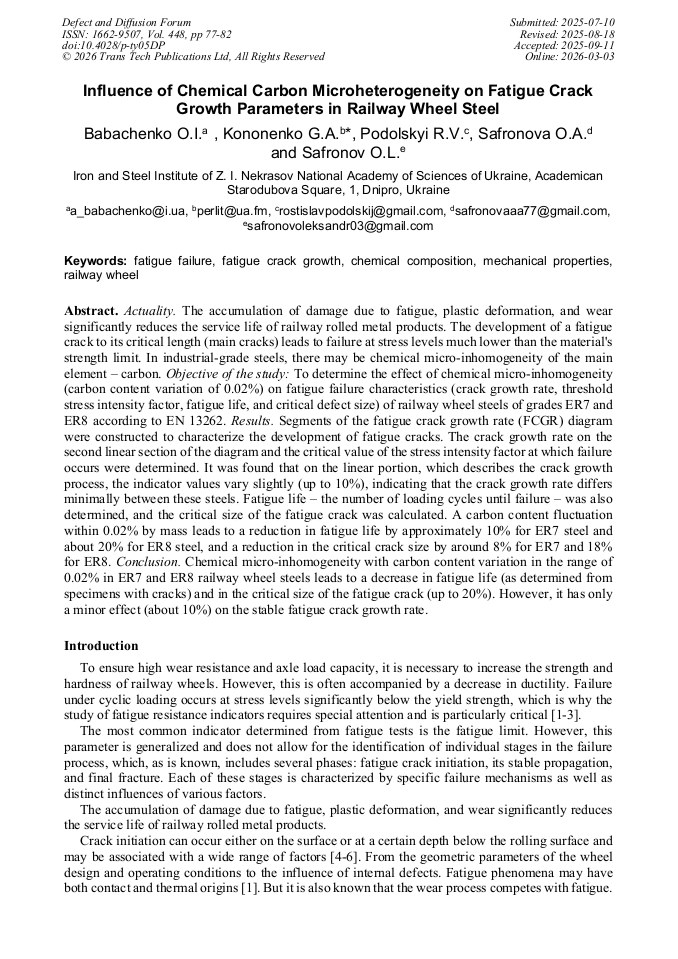

Actuality. The accumulation of damage due to fatigue, plastic deformation, and wear significantly reduces the service life of railway rolled metal products. The development of a fatigue crack to its critical length (main cracks) leads to failure at stress levels much lower than the material's strength limit. In industrial-grade steels, there may be chemical micro-inhomogeneity of the main element—carbon. Objective of the study: To determine the effect of chemical micro-inhomogeneity (carbon content variation of 0.02%) on fatigue failure characteristics (crack growth rate, threshold stress intensity factor, fatigue life, and critical defect size) of railway wheel steels of grades ER7 and ER8 according to EN 13262. Results. Segments of the fatigue crack growth rate (FCGR) diagram were constructed to characterize the development of fatigue cracks. The crack growth rate on the second linear section of the diagram and the critical value of the stress intensity factor at which failure occurs were determined. It was found that on the linear portion, which describes the crack growth process, the indicator values vary slightly (up to 10%), indicating that the crack growth rate differs minimally between these steels. Fatigue life—the number of loading cycles until failure—was also determined, and the critical size of the fatigue crack was calculated. A carbon content fluctuation within 0.02% by mass leads to a reduction in fatigue life by approximately 10% for ER7 steel and about 20% for ER8 steel, and a reduction in the critical crack size by around 8% for ER7 and 18% for ER8. Conclusion. Chemical micro-inhomogeneity with carbon content variation in the range of 0.02% in ER7 and ER8 railway wheel steels leads to a decrease in fatigue life (as determined from specimens with cracks) and in the critical size of the fatigue crack (up to 20%). However, it has only a minor effect (about 10%) on the stable fatigue crack growth rate.

• Periodical: Defect and Diffusion Forum (Volume 448)
• Pages: 77-82
• DOI: https://doi.org/10.4028/p-ty05DP
• Online since: March 2026
• Authors: Oleksandr I. Babachenko, Ganna A. Kononenko*, Rostislav V. Podolskyi, Olena A. Safronova, Oleksandr L. Safronov
• Keywords: Chemical Composition, Fatigue Crack Growth, Fatigue Failure, Mechanical Properties, Railway Wheel

References

[1] A. Ekberg, E. Kabo, Fatigue of railway wheels and rails under rolling contact and thermal loading – an overview, Wear. 258 (2005) 1288-1300

DOI: 10.1016/j.wear.2004.03.039

[2] H.A. Richard, M. Sander, M. Fulland, G. Kullmer, Development of fatigue crack growth in real structures, Eng. Fract. Mech. 75 (2008) 331-340

DOI: 10.1016/j.engfracmech.2007.01.017

[3] T.M. Lenkovskiy V.V. Kulyk, Z.A. Duriagina, R.A. Kovalchuk, V.H. Topilnytskyy, V.V. Vira, T.L. Tepla, Mode I and mode II fatigue crack growth resistance characteristics of high tempered 65G steel. Arch Mater Sci Eng. 84(1), (2017) 34–41

DOI: 10.5604/01.3001.0010.3029

[4] Y. Liu, B. Stratman, S. Mahadevan, Fatigue crack initiation life prediction of railroad wheels, Int. J. Fatigue. 28 (2006) 747-756

DOI: 10.1016/j.ijfatigue.2005.09.007

[5] Y. Xie, W. Wang, J. Guo, B. An, R. Chen, Q. Wu, E. Bernal, H. Ding, M. Spiryagin, Rail rolling contact fatigue response diagram construction and shakedown map optimization, Wear. 528–529 (2023) 204964

DOI: 10.1016/j.wear.2023.204964

[6] O.P. Ostash, I.M. Andreiko, V.V. Kulyk, V.I. Vavrukh, Influence of braking on the microstructure and mechanical behavior of railroad wheel steels. Mater. Sci. 48,(2013)569-574

DOI: 10.1007/s11003-013-9539-9

[7] B. Dirks, R. Enblom, Prediction model for wheel profile wear and rolling contact fatigue, Wear. 271 (2011) 210-217

DOI: 10.1016/j.wear.2010.10.028

[8] S. Zhang, M. Spiryagin, Q. Lin, H. Ding, Q. Wu, J. Guo, Q. Liu, W. Wang, Study on wear and rolling contact fatigue behaviours of defective rail under different slip ratio and contact stress conditions, Tribol. Int. 169 (2022) 107491

DOI: 10.1016/j.triboint.2022.107491

[9] J.-W. Seo, H.-K. Jun, S.-J. Kwon, D.-H. Lee, Rolling contact fatigue and wear of two different rail steels under rolling–sliding contact, Int. J. Fatigue. 83 (2016) 184-194

DOI: 10.1016/j.ijfatigue.2015.10.012

[10] H.H. Wang, W.J. Wang, Z.Y. Han, Y. Wang, H.H. Ding, R. Lewis, Q. Lin, Q.Y. Liu, Z.R. Zhou, Wear and rolling contact fatigue competition mechanism of different types of rail steels under various slip ratios, Wear. 522 (2023) 204721

DOI: 10.1016/j.wear.2023.204721

[11] O. I. Babachenko, G. A. Kononenko, Zh. A. Dement'eva, K. G. Domina, R. V. Podolskyi, O. A. Safronova, Study of the influence of steel chemical and structural heterogeneity on fracture toughness of railway wheels, Mater. Sci. 60 (2024) 240–245

DOI: 10.1007/s11003-025-00878-y

[12] Babachenko, O.I., Kononenko, G.A., Podolskyi, R.V. et al. Study of correlation of chemical and phase composition and fracture toughness of railway wheel steel. Mater Sci 60, 33–38 (2024)

DOI: 10.1007/s11003-024-00847-x

[13] O.P. Ostash V.V. Kulyk V.D. Poznyakov O.A. Haivorons'kyi,L.I. Markashova V.V. Vira, Z.A. Duriagina T.L. Tepla, Fatigue crack growth resistance of welded joints simulating the weld-repaired railway wheels metal, Archives of Materials Science and Engineering, 86(2), (2017) 49–55

DOI: 10.5604/01.3001.0010.4885

[14] Sychkov, A. B., Sychkov A.B., Parusov, E.V., Zavalishin, A. N., Kozlov, A. V. Inherent effect of the crystal structure of continuous cast steel billets on the formation of structure of high carbon wire rod in coils, Journal of Chemical Technology and Metallurgy. 53 (2018) 977–985.

[15] M. Szata, G. Lesiuk, Algorithms for the estimation of fatigue crack growth using energy method, Arch. Civ. Mech. Eng. 9 (2009) 119-134

DOI: 10.1016/S1644-9665(12)60045-4

[16] I.S. Raju, J.C. Newman Jr., Stress-intensity factors for a wide range of semi-elliptical surface cracks in finite-thickness plates, Eng. Fract. Mech. 11 (1979) 817-829

DOI: 10.1016/0013-7944(79)90139-5

[17] M. Diener, R. Muller, U.W. Kunnes, Bruchmechanische und Metallkundliche Untersuchungen an Guterwagenradern, ZET+DET Gras. Ann. 116 (1992) 179-191

[18] H. R. Wettenkamp and R. M. Kipp, "Fracture of the wheels of a railroad car 836 mm in diameter, induced by thermal and rail loads," Konstruir. Tekhnol. Mashinostr., 100 (1978), No. 3, 184–192.

[19] T. Gao, Z. Yuanzhou, B. Ji, J. Liu, Z. Xu, Determination of the critical fatigue crack length for orthotropic steel decks. J. Constr. Steel Res. 205 (2023) 107904

DOI: 10.1016/j.jcsr.2023.107904
