Lattice Boltzmann Simulation for Combined Natural and Forced Convection in a Lid-Driven Square Enclosure with an Inner Heat Sink

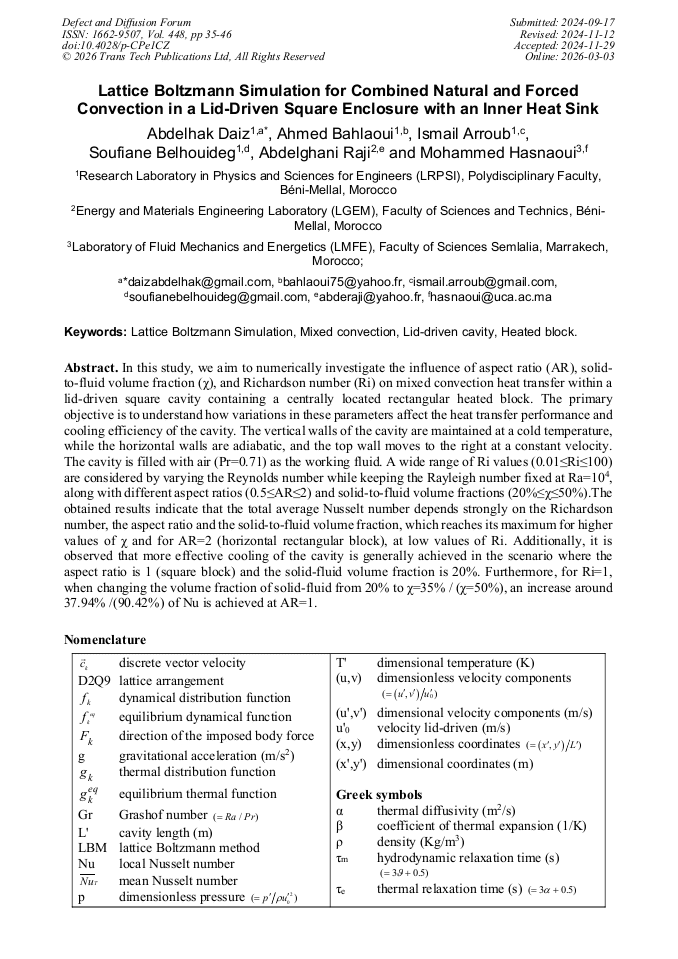

Article Preview

Abstract:

In the present study, we have performed a numerical investigation of the effect of aspect ratio (AR), solid-to-fluid volume fraction (χ) of the heated rectangular block and Richardson number on mixed convection heat transfer in a lid-driven square cavity having centered rectangular heated block inside. The vertical walls of the cavity are exposed to the cold temperature while the horizontal walls are kept at adiabatic, with top wall moving to the right with a constant velocity. The cavity is filled with air (Pr = 0.71) as working fluid. A wide range of Ri (0.01 ≤ Ri ≤ 100) by varying Reynolds number at fixed Rayleigh number Ra = 104, aspect ratio (0.5 ≤ AR ≤ 2) and the solid-fluid volume fraction of the block (20% ≤ χ ≤ 50%) are considered. The obtained results indicate that the total average Nusselt number depends strongly on the Richardson number, the aspect ratio and the solid-to-fluid volume fraction, which reaches its maximum for higher values of χ and for AR = 2 (horizontal rectangular block), at low values of Ri. Additionally, it is observed that more effective cooling of the cavity is generally achieved in the scenario where the aspect ratio is 1 (square heated block) and the solid-fluid volume fraction is 20%. In addition, for Ri = 1, when changing the volume fraction of solid-fluid from 20% to χ = 35% / (χ = 50%), an increase around 37.94% /(90.42%) of Nu is achieved at AR = 1. Nomenclature

You might also be interested in these eBooks
Microstructure Evolution, Corrosion, Heat and Mass Transfer Processes View Preview

Info:

Periodical:

Defect and Diffusion Forum (Volume 448)

Pages:

35-46

DOI:

https://doi.org/10.4028/p-CPe1CZ

Citation:

Cite this paper

Online since:

March 2026

Authors:

Daiz Abdelhak*, Ahmed Bahlaoui, Ismail Arroub, Soufiane Belhouideg, Abdelghani Raji, Mohammed Hasnaoui

Keywords:

Heated Block, Lattice Boltzmann Simulation, Lid-Driven Cavity, Mixed Convection

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2026 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] I. Arroub, A. Bahlaoui, A. Raji, M. Hasnaoui, M. Naïmi, Cooling enhancement by nanofluid mixed convection inside a horizontal vented cavity submitted to sinusoidal heating, Eng. Compu. 35 (2018), 1747-1773.

DOI: 10.1108/ec-03-2017-0080

Google Scholar

[2] I. Arroub, A. Bahlaoui, S. Belhouideg, A. Raji, M. Hasnaoui, Combined Effects of Inclination Angle and Imposed Flow on Mixed Convective Cooling Inside a Vented Cavity Crossed by Nanofluids, Phy. Chem. Res. 11 (2023), 631-642.

DOI: 10.37394/232012.2023.18.19

Google Scholar

[3] R. Hidki, L. El Moutaouakil, M. Boukendil, Z. Charqui, Z. Zrikem, A. Abdelbaki, Mixed convection and surface radiation in a ventilated cavity containing two heat-generating solid bodies, Mater. Tod.: Proc. 66 (2022), 318-324.

DOI: 10.1016/j.matpr.2022.05.404

Google Scholar

[4] I. Arroub, A. Bahlaoui, S. Belhouideg, A. Raji, M. Hasnaoui, Heat transfer performance in a tilted cavity submitted to external flow of nanofluid, AIP conference proceedings, 2345 (2021), 020004.

DOI: 10.1063/5.0049447

Google Scholar

[5] I. Arroub, A. Bahlaoui, A. Raji, M. Hasnaoui, M. Naïmi, Varying Heating Effect on Mixed Convection of Nanofluids in a Vented Horizontal Cavity with Injection or Suction, Heat Transf. Eng. 40 (2019), 941-958.

DOI: 10.1080/01457632.2018.1446876

Google Scholar

[6] M.M. Rahman, S. Parvin, N.A. Rahim, M.R. Islam, R. Saidur, M. Hasanuzzaman, Effects of Reynolds and Prandtl number on mixed convection in a ventilated cavity with a heat-generating solid circular block, App. Math. Mod. 36 (2012), 2056-2066.

DOI: 10.1016/j.apm.2011.08.014

Google Scholar

[7] M.M. Rahman, S. Parvin, M. Hasanuzzaman, R. Saidur, N.A. Rahim, Effect of heat-generating solid body on mixed convection flow in a ventilated cavity, Heat Transf. Eng. 34 (2013), 1249-1261.

DOI: 10.1080/01457632.2013.730919

Google Scholar

[8] S.K. Gupta, D. Chatterjee, B. Monda, Investigation of mixed convection in a ventilated cavity in the presence of a heat conducting circular cylinder, Num. Heat Transf. Part A: Appl. 67 (2015), 52–74.

DOI: 10.1080/10407782.2014.916113

Google Scholar

[9] M.S. Rasel, M.T.I. Rupam, M.S. Shuvo, S. Saha, Investigation on conjugate mixed convection through a vented chamber with heat generating and conducting rotating circular cylinders, Res. Eng. 19 (2023), 101248.

DOI: 10.1016/j.rineng.2023.101248

Google Scholar

[10] A.W. Islam, M.A.R. Sharif, E.S. Carlson, Mixed convection in a lid driven square cavity with an isothermally heated square blockage inside, Int. j. heat and mass transf. 55 (2012), 5244-5255.

DOI: 10.1016/j.ijheatmasstransfer.2012.05.032

Google Scholar

[11] N. Biswas, N.K. Manna, P.S. Mahapatra, Enhanced thermal energy transport using adiabatic block inside lid-driven cavity, Int. j. heat and mass transf. 100 (2016), 407-427.

DOI: 10.1016/j.ijheatmasstransfer.2016.04.074

Google Scholar

[12] K.N. Morshed, M.A.R. Sharif, A.W. Islam, Laminar Mixed Convection in a Lid-Driven Square Cavity with Two Isothermally Heated Square Internal Blockages, Chem. Eng. Commun. 202 (2015), 1176-1190.

DOI: 10.1080/00986445.2014.912634

Google Scholar

[13] H.Shahid, I. Yaqoob, W. Azeem Khan, M. Aslam, Mixed convection in an insulated rectangular enclosure with two obstacles subject to various configurations using multi-relaxation-time lattice Boltzmann method, Waves in Random and Complex Media, (2022), 1-35.

DOI: 10.1080/17455030.2022.2092661

Google Scholar

[14] H.W. Cho, Y.G. Park, Y.M. Seo, M.Y. Ha, Prediction of the heat transfer performance of mixed convection in a lid-driven enclosure with an elliptical cylinder using an artificial neural network, Num. Heat Transf., Part A: Appl. 78 (2020), 29-47.

DOI: 10.1080/10407782.2020.1777793

Google Scholar

[15] A. Daiz, A. Bahlaoui, I. Arroub, S. Belhouideg, A. Raji, M. Hasnaoui, Lattice Boltzmann Analysis of Mixed Convection in a Lid-driven Cavity with an Inner Hot Elliptical Block: Effect of Block Inclination, Comp. Ther. Sci. Int. J. 16 (2024), 1-23.

DOI: 10.1615/computthermalscien.2023048986

Google Scholar

[16] K.M. Gangawane, Computational analysis of mixed convection heat transfer characteristics in lid-driven cavity containing triangular block with constant heat flux: Effect of Prandtl and Grashof numbers, Int. j. heat and mass transf. 105 (2017), 34-57.

DOI: 10.1016/j.ijheatmasstransfer.2016.09.061

Google Scholar

[17] K. Khanafer, S.M. Aithal, Laminar mixed convection flow and heat transfer characteristics in a lid driven cavity with a circular cylinder, Int. j. heat and mass transf. 66 (2013), 200-209.

DOI: 10.1016/j.ijheatmasstransfer.2013.07.023

Google Scholar

[18] A. A. Mohamad, Lattice Boltzmann Method: Fundamentals and Engineering Applications with Computer Codes, Springer Science & Business Media, 70, (2011).

Google Scholar

[19] A. Daiz, A. Bahlaoui, I. Arroub, S. Belhouideg, A. Raji, M. Hasnaoui, Modeling of nanofluid mixed convection within discretely heated lid-driven inclined cavity using lattice Boltzmann method, AIP Conference Proceedings, 2761 (2023), 040018.

DOI: 10.1063/5.0171601

Google Scholar

[20] A. Daiz, A. Bahlaoui, I. Arroub, S. Belhouideg, A. Raji, M. Hasnaoui, Simulation of Combined Thermal Mixed Convection and Radiation in a Discretely Heated Lid-Driven Cavity using a Lattice Boltzmann Method, Advances in Mechanics, Springer Nature Switzerland, Cham (2024), 191-200.

DOI: 10.1063/5.0171601

Google Scholar

[21] G.F. Zheng, M.Y. Ha, H.S. Yoon, Y.G. Park, A numerical study on mixed convection in a lid-driven cavity with a circular cylinder, J. Mech. Sci. Tech. 27 (2013), 273-286.

DOI: 10.1007/s12206-012-1201-1

Google Scholar
