Numerical Study of MHD Natural Convection in Partially Heated Cubical Cavity Filled with Hybrid Nanofluid

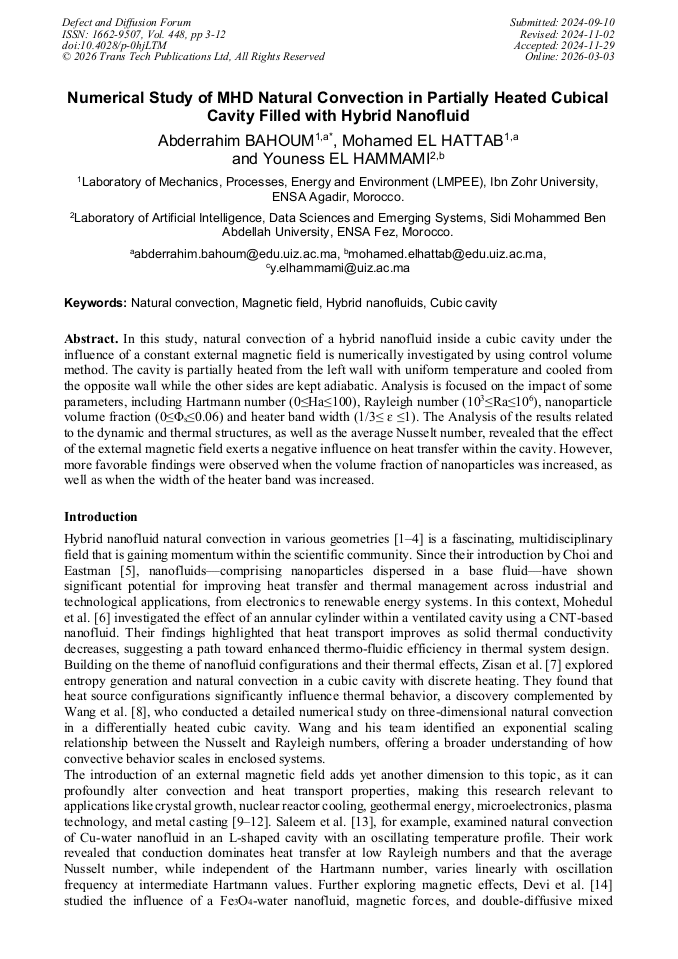

Article Preview

Abstract:

In this study, natural convection of a hybrid nanofluid inside a cubic cavity under the influence of a constant external magnetic field is numerically investigated by using control volume method. The cavity is partially heated from the left wall with uniform temperature and cooled from the opposite wall while the other sides are kept adiabatic. Analysis is focused on the impact of some parameters, including Hartmann number (0≤Ha≤100), Rayleigh number (103≤Ra≤106), nanoparticle volume fraction (0≤Φs≤0.06) and heater band width (1/3≤ ɛ ≤1). The Analysis of the results related to the dynamic and thermal structures, as well as the average Nusselt number, revealed that the effect of the external magnetic field exerts a negative influence on heat transfer within the cavity. However, more favorable findings were observed when the volume fraction of nanoparticles was increased, as well as when the width of the heater band was increased.

You might also be interested in these eBooks
Microstructure Evolution, Corrosion, Heat and Mass Transfer Processes View Preview

Info:

Periodical:

Defect and Diffusion Forum (Volume 448)

Pages:

3-12

DOI:

https://doi.org/10.4028/p-0hjLTM

Citation:

Cite this paper

Online since:

March 2026

Authors:

Abderrahim Bahoum*, Mohamed El Hattab, Youness El Hammami

Keywords:

Cubic Cavity, Hybrid Nanofluids, Magnetic Field, Natural Convection

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2026 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] Department of Natural Science, The International University of Scholars, Dhaka-1212, Bangladesh, R. Akhter, M.M. Ali, MHD natural convection in nanofluid-filled square cavity with isothermally heated hexagonal block, International Journal of Thermofluid Science and Technology, Vol. 9, 2021.

DOI: 10.36963/IJTST.2022090104

Google Scholar

[2] A. WEPPE, F. MOREAU, D. SAURY, Experimental investigation of a turbulent natural convection flow in a cubic cavity with an inner obstacle partially heated, International Journal of Heat and Mass Transfer, Vol. 194, 2022. https://doi.org/10.1016/j.ijheatmasstransfer. 2022.123052.

DOI: 10.1016/j.ijheatmasstransfer.2022.123052

Google Scholar

[3] Ak. SHAN, Y. SUMEIRA, I. MUHAMMAD, M. TASEER, A. ALHUSHAYBARI, U. FAROOQ, H. WAQAS, Computational analysis of natural convection with water based nanofluid in a square cavity with partially active side walls: Applications to thermal storage, Journal of Molecular Liquids, Vol. 382, 2023.

DOI: 10.1016/j.molliq.2023.122003

Google Scholar

[4] R. HIDKI, L. EL MOUTAOUAKIL, M. BOUKENDIL, Z. CHARQUI, Z. ZRIKEM, A. ABDELBAKI, Impact of Cu,Al2O3-water hybrid nanofluid on natural convection inside a square cavity with two heat generating bodies, Materials Today: Proceedings, Vol. 72, pp.3749-3756, 2023.

DOI: 10.1016/j.matpr.2022.09.292

Google Scholar

[5] S.U.S., CHOI, EASTMAN, J.A., Enhancing thermal conductivity of fluids with nanoparticles. Dev Appl Non Newtonian Flows, Vol. 66, pp.99-106, 1995.

Google Scholar

[6] M. Hasan, S.S. Priam, A. Nur-E Faiaz, A.K. Azad, M.M. Rahman, Influence of thermal conductivity on transient mixed convection in a vented cavity with a hollow cylinder and filled with CNT-water nanofluid, Heliyon, Vol. 9, 2023, e13850.

DOI: 10.1016/j.heliyon.2023.e13850

Google Scholar

[7] Hm. TOUFIK AHMED ZISAN, Th. RUVO, S. SAHA, Entropy generation and natural convection on a cubic cavity with a pair of heat source at different configurations, International Communications in Heat and Mass Transfer, Vol. 134, 2022.

DOI: 10.1016/j.icheatmasstransfer.2022.106033

Google Scholar

[8] P. Wang, Y. Zhang, Z. Guo, Numerical study of three-dimensional natural convection in a cubical cavity at high Rayleigh numbers, International Journal of Heat and Mass Transfer, Vol. 113, p.217–228, 2017.

DOI: 10.1016/j.ijheatmasstransfer.2017.05.057

Google Scholar

[9] GHACHEM, K. HUSSEIN, A.K. KOLSI, L. YOUNIS, CNT-water nanofluid magneto convective heat transfer in a cubical cavity equipped with perforated partition, Eur. Phys. J. Plus, Vol. 136(4), p.377, 2021.

DOI: 10.1140/epjp/s13360-021-01387-y

Google Scholar

[10] M. SHEIKHOLESLAMI, R. ELLAH, Three dimensional mesoscopic simulation of magnetic field effect on natural convection of nanofluid, International Journal of Heat and Mass Transfer, Vol. 89, pp.799-808, 2015.

DOI: 10.1016/j.ijheatmasstransfer.2015.05.110

Google Scholar

[11] W. ZHOU, Y. YAN, Y. XIE, B. LIU, Three dimensional lattice Boltzmann simulation for mixed convection of nanofluids in the presence of magnetic field, International Communications in Heat and Mass Transfer, Vol. 80, pp.1-9, 2017.

DOI: 10.1016/j.icheatmasstransfer.2016.11.012

Google Scholar

[12] D. WANG, T. HAI, Effect of the length and thickness of three constant temperature baffles on the natural convection heat transfer of nanofluid flow inside an enclosure affected by a magnetic field, Engineering Analysis with Boundary Elements, Vol. 150, pp.70-83, 2023.

DOI: 10.1016/j.enganabound.2023.01.038

Google Scholar

[13] K.B. Saleem, A.H. Marafie, K. Al-Farhany, W.K. Hussam, G.J. Sheard, Natural convection heat transfer in a nanofluid-filled L-shaped enclosure with time-periodic temperature boundary and magnetic field, Alexandria Engineering Journal, Vol. 69, p.177–191, 2023.

DOI: 10.1016/j.aej.2022.12.030

Google Scholar

[14] N.R. Devi, M. Gnanasekaran, A. Satheesh, P.R. Kanna, J. Taler, D.S. Kumar, D. Taler, T. Sobota, Double-diffusive mixed convection in an inclined square cavity filled with nanofluid: A numerical study with external magnetic field and heated square blockage effects, Case Studies in Thermal Engineering, Vol. 56, 2024, 104210.

DOI: 10.1016/j.csite.2024.104210

Google Scholar

[15] S. BOUCHTA, M. FEDDAOUI, Numerical Simulation of Free Convection in a Three Dimensional Enclosure Full of Nanofluid with the Existence a Magnetic Field, European Journal of Electrical Engineering, Vol. 22, No 6, pp.405-411, 2020.

DOI: 10.18280/ejee.220602

Google Scholar

[16] L. Kolsi, MHD natural convection and entropy generation in a 3D lid-driven cavity, Frontiers in Heat and Mass Transfer, Vol. 7, 2016.

DOI: 10.5098/hmt.7.26

Google Scholar

[17] Z.Y. Zhong, K.T. Yang, J.R. Lloyd, Variable property effects in laminar natural convection in a square enclosure, J. Heat Tran., Vol. 107, pp.133-138, 1985.

DOI: 10.1016/j.buildenv.2018.08.043

Google Scholar

[18] G. DONALD, D. GIORGINI, A., The Validity of the Boussinesq Approximation for Liquids and Gases, Int. J. Heat Mass Transfer, Vol. 19, pp.545-551, 1976.

DOI: 10.1016/0017-9310(76)90168-x

Google Scholar

[19] H. C. BRINKMAN, The viscosity of concentrated suspensions and solution, J. Chem. Phys., Vol. 20, pp.571-581, 1952.

DOI: 10.1063/1.1700493

Google Scholar

[20] J.C. MAXWELL, Titre, A Treatise on electricity and magnetism, Clarendon Press, U.K, 1891.

Google Scholar

[21] S. V. PATANKAR, Numerical heat transfer and fluid flow, Hemisphere, Washington, 1980.

Google Scholar

[22] J.P. Van Doormaal, G.D. Raithby, Enhancements of the SIMPLE method for predicting incompressible fluid flows, Numerical Heat Transfer, Vol. 7, No. 2, p.147–163, 1984.

DOI: 10.1080/01495728408961817

Google Scholar

[23] J. RAVNIK, Analysis of three-dimensional natural convection of nanofluids by BEM, Engineering Analysis with Boundary Elements, Vol. 34, pp.1018-1030, 2010.

DOI: 10.1016/j.enganabound.2010.06.019

Google Scholar
