From Deposition Sequence to Mechanical Response: A Macroscale Process Simulation of Material Extrusion

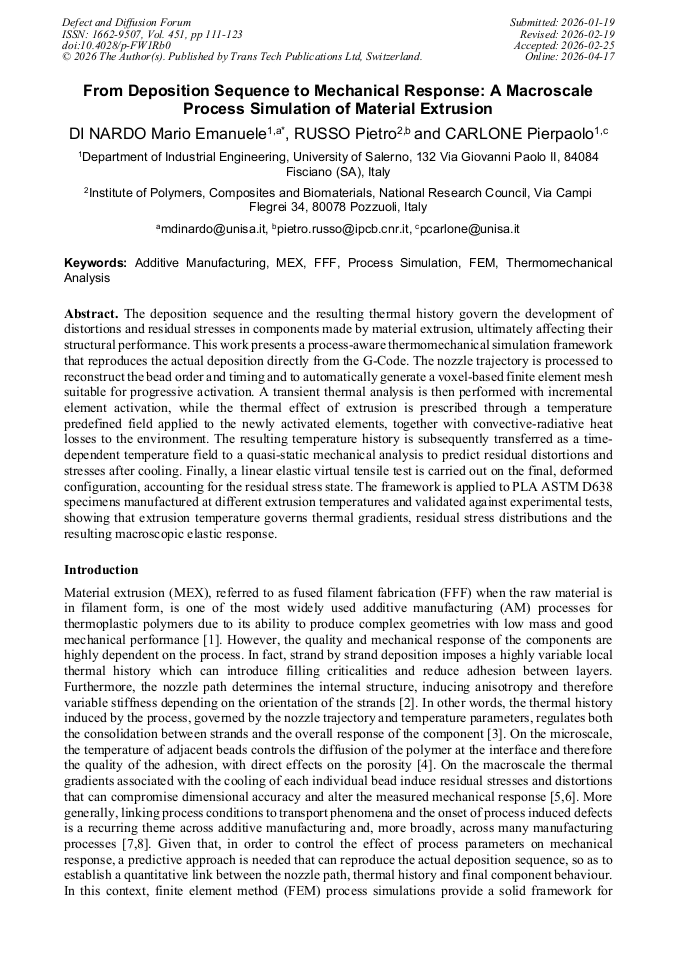

Article Preview
View Pdf By email

Abstract:

The deposition sequence and the resulting thermal history govern the development of distortions and residual stresses in components made by material extrusion, ultimately affecting their structural performance. This work presents a process-aware thermomechanical simulation framework that reproduces the actual deposition directly from the G-Code. The nozzle trajectory is processed to reconstruct the bead order and timing and to automatically generate a voxel-based finite element mesh suitable for progressive activation. A transient thermal analysis is then performed with incremental element activation, while the thermal effect of extrusion is prescribed through a temperature predefined field applied to the newly activated elements, together with convective-radiative heat losses to the environment. The resulting temperature history is subsequently transferred as a time-dependent temperature field to a quasi-static mechanical analysis to predict residual distortions and stresses after cooling. Finally, a linear elastic virtual tensile test is carried out on the final, deformed configuration, accounting for the residual stress state. The framework is applied to PLA ASTM D638 specimens manufactured at different extrusion temperatures and validated against experimental tests, showing that extrusion temperature governs thermal gradients, residual stress distributions and the resulting macroscopic elastic response.

You have full access to the following eBook
Polymer Processing and Thermomechanical Properties Read eBook

Info:

Periodical:

Defect and Diffusion Forum (Volume 451)

Pages:

111-123

DOI:

https://doi.org/10.4028/p-FW1Rb0

Citation:

Cite this paper

Online since:

April 2026

Authors:

Mario Emanuele Di Nardo*, Pietro Russo, Pierpaolo Carlone

Keywords:

Additive Manufacturing, FEM, FFF, MEX, Process Simulation, Thermomechanical Analysis

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Share:

Citation:

* - Corresponding Author

References

[1] ISO, BSEN. "ASTM 52900: 2021." Additive Manufacturing - General Principles - Fundamentals and Vocabulary (2021).

Google Scholar

[2] Ahn, Sung‐Hoon, et al. "Anisotropic Material Properties of Fused Deposition Modeling ABS." Rapid Prototyping Journal, vol. 8, no. 4, Oct. 2002, p.248–57. DOI.org (Crossref).

DOI: 10.1108/13552540210441166

Google Scholar

[3] Gao, Xia, et al. "Fused Filament Fabrication of Polymer Materials: A Review of Interlayer Bond." Additive Manufacturing, vol. 37, Jan. 2021, p.101658. DOI.org (Crossref).

DOI: 10.1016/j.addma.2020.101658

Google Scholar

[4] Bellehumeur, Céline, et al. "Modeling of Bond Formation Between Polymer Filaments in the Fused Deposition Modeling Process." Journal of Manufacturing Processes, vol. 6, no. 2, 2004, p.170–78. DOI.org (Crossref).

DOI: 10.1016/S1526-6125(04)70071-7

Google Scholar

[5] Roy, Mriganka, et al. "Prediction and Experimental Validation of Part Thermal History in the Fused Filament Fabrication Additive Manufacturing Process." Journal of Manufacturing Science and Engineering, vol. 141, no. 12, Dec. 2019, p.121001. DOI.org (Crossref).

DOI: 10.1115/1.4045056

Google Scholar

[6] Trofimov Anton, et al. "Experimentally Validated Modeling of the Temperature Distribution and the Distortion during the Fused Filament Fabrication Process." Additive Manufacturing, vol. 54, June 2022, p.102693. DOI.org (Crossref).

DOI: 10.1016/j.addma.2022.102693

Google Scholar

[7] Frölich, Felix, et al. "An Orientation-Based Homogenization Approach for Predicting Process-Induced Deformations in Extrusion-Based Additive Manufacturing." Additive Manufacturing, vol. 113, Sept. 2025, p.105023. DOI.org (Crossref).

DOI: 10.1016/j.addma.2025.105023

Google Scholar

[8] Esperto, Vitantonio, et al. "Permeability Analysis of Natural and Artificial Fiber Textiles for Liquid Composite Molding Process." Procedia Manufacturing, vol. 47, 2020, p.435–39. DOI.org (Crossref).

DOI: 10.1016/j.promfg.2020.04.328

Google Scholar

[9] Ramos, Nathalie, et al. "Efficient Simulation of the Heat Transfer in Fused Filament Fabrication." Journal of Manufacturing Processes, vol. 94, May 2023, p.550–63. DOI.org (Crossref).

DOI: 10.1016/j.jmapro.2023.03.030

Google Scholar

[10] Dassault Systèmes, 3DEXPERIENCE User Assistance, "Event Series." n.d., https://docs.software.vt.edu/abaqusv2024/English/?show=SIMACAEANLRefMap/simaanl-c-subroutineeventseries.htm. Accessed 13 Dec. 2025.

Google Scholar

[11] Esperto, Vitantonio, et al. "Modeling and Simulation of the Robotic Layup of Fibrous Preforms for Liquid Composite Molding." ESAFORM 2021, Apr. 2021. DOI.org (Crossref).

DOI: 10.25518/esaform21.475

Google Scholar

[12] G Gambardella, A. "Automated Programming for the Robotic Layup Process." 2023, p.367–74. DOI.org (Crossref).

DOI: 10.21741/9781644902479-40

Google Scholar

[13] Esperto, Vitantonio, et al. "System Integration for Advanced Manufacturing of Composites by Microwave Preheated Resin Infusion: An Experimental Study." Journal of Materials Engineering and Performance, vol. 34, no. 10, May 2025, p.8759–67. DOI.org (Crossref).

DOI: 10.1007/s11665-024-10397-7

Google Scholar

[14] Brenken, Bastian, et al. "Development and Validation of Extrusion Deposition Additive Manufacturing Process Simulations." Additive Manufacturing, vol. 25, Jan. 2019, p.218–26. DOI.org (Crossref).

DOI: 10.1016/j.addma.2018.10.041

Google Scholar

[15] Voříšek, J., and B. Patzák. "GPAMS: A G-Code Processor for Advanced Additive Manufacturing Simulations." Additive Manufacturing, vol. 65, Mar. 2023, p.103279. DOI.org (Crossref).

DOI: 10.1016/j.addma.2022.103279

Google Scholar

[16] Rivet, Iván, et al. "Mechanical Analysis and Optimized Performance of G-Code Driven Material Extrusion Components." Additive Manufacturing, vol. 61, Jan. 2023, p.103348. DOI.org (Crossref).

DOI: 10.1016/j.addma.2022.103348

Google Scholar

[17] ASTM International. ASTM D638-22: Standard Test Method for Tensile Properties of Plastics. 2022.

Google Scholar

[18] NatureWorks LLC. Ingeo Biopolymer 3D850 Technical Data Sheet. NatureWorks LLC, n.d., https://www.natureworksllc.com/~/media/Files/NatureWorks/Technical-Documents/ Technical-Data-Sheets/TechnicalDataSheet_3D850_monofilament_pdf.pdf. Accessed 7 Dec. 2025.

DOI: 10.2172/917000

Google Scholar

[19] NatureWorks LLC. Ingeo Biopolymer 3D870 Technical Data Sheet. NatureWorks LLC, n.d., https://www.natureworksllc.com/~/media/files/natureworks/technical-documents/technical-data-sheets/technicaldatasheet_3d870_monofilament_pdf.pdf?la=en. Accessed 7 Dec. 2025.

DOI: 10.2172/917000

Google Scholar

[20] Farah, Shady, et al. "Physical and Mechanical Properties of PLA, and Their Functions in Widespread Applications - A Comprehensive Review." Advanced Drug Delivery Reviews, vol. 107, Dec. 2016, p.367–92. DOI.org (Crossref).

DOI: 10.1016/j.addr.2016.06.012

Google Scholar

[21] Cojocaru, Vasile, et al. "The Influence of the Process Parameters on the Mechanical Properties of PLA Specimens Produced by Fused Filament Fabrication—A Review." Polymers, vol. 14, no. 5, Feb. 2022, p.886. DOI.org (Crossref).

DOI: 10.3390/polym14050886

Google Scholar

[22] Tao, Yubo, et al. "A Review on Voids of 3D Printed Parts by Fused Filament Fabrication." Journal of Materials Research and Technology, vol. 15, Nov. 2021, p.4860–79. DOI.org (Crossref).

DOI: 10.1016/j.jmrt.2021.10.108

Google Scholar

[23] Gajjar, Tusharbhai, et al. "Effects of Key Process Parameters on Tensile Properties and Interlayer Bonding Behavior of 3D Printed PLA Using Fused Filament Fabrication." Progress in Additive Manufacturing, vol. 10, no. 2, Feb. 2025, p.1261–80. Springer Link.

DOI: 10.1007/s40964-024-00704-y

Google Scholar

[24] Velghe, Ineke, et al. "Review on the Degradation of Poly(Lactic Acid) during Melt Processing." Polymers, vol. 15, no. 9, Apr. 2023, p.2047. DOI.org (Crossref).

DOI: 10.3390/polym15092047

Google Scholar

[25] Liparoti, Sara, et al. "Fused Filament Deposition of PLA: The Role of Interlayer Adhesion in the Mechanical Performances." Polymers, vol. 13, no. 3, Jan. 2021, p.399. DOI.org (Crossref).

DOI: 10.3390/polym13030399

Google Scholar

[26] Blanco, Ignazio, et al. "Specific Heat Capacity and Thermal Conductivity Measurements of PLA-Based 3D-Printed Parts with Milled Carbon Fiber Reinforcement." Entropy, vol. 24, no. 5, May 2022, p.654. DOI.org (Crossref).

DOI: 10.3390/e24050654

Google Scholar

[27] Bianchi, Marica, et al. "Evaluation of the Physical and Shape Memory Properties of Fully Biodegradable Poly(Lactic Acid) (PLA)/Poly(Butylene Adipate Terephthalate) (PBAT) Blends." Polymers, vol. 15, no. 4, Feb. 2023, p.881. DOI.org (Crossref).

DOI: 10.3390/polym15040881

Google Scholar

[28] Morgan, Robert, et al. Emissivity Measurements of Additively Manufactured Materials. LA-UR--7-20513, 1341825, 25 Jan. 2017, p. LA-UR--7-20513, 1341825. DOI.org (Crossref).

DOI: 10.2172/1341825

Google Scholar

[29] Incropera, Frank P., et al., editors. Fundamentals of Heat and Mass Transfer. 6. ed, Wiley, 2007.

Google Scholar

[30] Demiryurek, Sifa Gul. "Evaluation of Dynamic Properties in ABS and PLA Thermoplastics across Frequency Ranges." Scientific Reports, vol. 15, no. 1, Nov. 2025, p.42629. DOI.org (Crossref).

DOI: 10.1038/s41598-025-26846-9

Google Scholar
