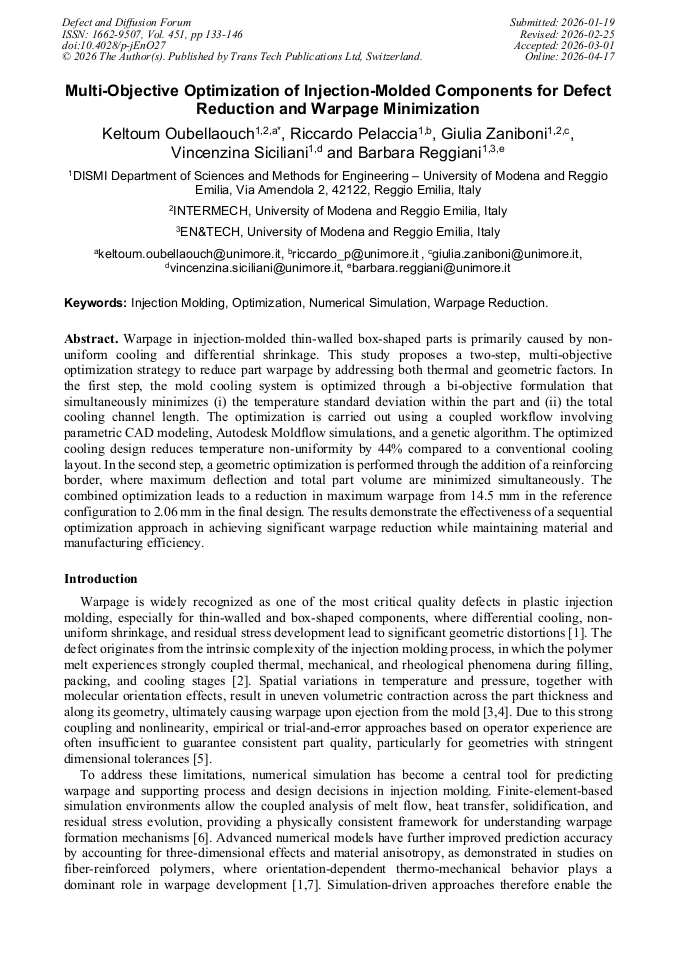

Multi-Objective Optimization of Injection-Molded Components for Defect Reduction and Warpage Minimization

Abstract:

Warpage in injection-molded thin-walled box-shaped parts is primarily caused by non-uniform cooling and differential shrinkage. This study proposes a two-step, multi-objective optimization strategy to reduce part warpage by addressing both thermal and geometric factors. In the first step, the mold cooling system is optimized through a bi-objective formulation that simultaneously minimizes (i) the temperature standard deviation within the part and (ii) the total cooling channel length. The optimization is carried out using a coupled workflow involving parametric CAD modeling, Autodesk Moldflow simulations, and a genetic algorithm. The optimized cooling design reduces temperature non-uniformity by 44% compared to a conventional cooling layout. In the second step, a geometric optimization is performed through the addition of a reinforcing border, where maximum deflection and total part volume are minimized simultaneously. The combined optimization leads to a reduction in maximum warpage from 14.5 mm in the reference configuration to 2.06 mm in the final design. The results demonstrate the effectiveness of a sequential optimization approach in achieving significant warpage reduction while maintaining material and manufacturing efficiency.

• Periodical: Defect and Diffusion Forum (Volume 451)
• Pages: 133-146
• DOI: https://doi.org/10.4028/p-jEnO27
• Online since: April 2026
• Authors: Keltoum Oubellaouch*, Riccardo Pelaccia, Giulia Zaniboni, Vincenzina Siciliani, Barbara Reggiani
• Keywords: Injection Moulding, Numerical Simulation, Optimization, Warpage Reduction

References

[1] Q. Jiang, H. Liu, Q. Xiao, S. Chou, A. Xiong, H. Nie, Three-dimensional numerical simulation of total warpage deformation for short-glass-fiber-reinforced polypropylene composite injection-molded parts using coupled FEM, Journal of Polymer Engineering 38 (2018) 493–502.

DOI: 10.1515/polyeng-2016-0445

[2] T. Schrank, M. Berer, B. Haar, B. Ramoa, T. Lucyshyn, M. Feuchter, G. Pinter, V. Speranza, R. Pantani, Injection Molding Simulation of Polyoxymethylene Using Crystallization Kinetics Data and Comparison with the Experimental Process, Polymer Crystallization 2022 (2022) 1–15.

DOI: 10.1155/2022/2387752

[3] G. Zaniboni, K. Oubellaouch, R. Pelaccia, V. Siciliani, L. Orazi, B. Reggiani, Optical scanning application for numerical calibration of strain analysis on injection molded rail fastening components, in: 2025: p.2426–2535.

DOI: 10.21741/9781644903599-262

[4] K. Oubellaouch, R. Pelaccia, L. Orazi, P. Pozzi, S. Carmignato, N. Bonato, L. Donati, L. Raimondi, B. Reggiani, A novel experimental–numerical procedure for the rheological characterization of thermoplastic polymers applied to injection molding, Int J Adv Manuf Technol 140 (2025) 5419–5433.

DOI: 10.1007/s00170-025-16522-7

[5] N. Zhao, J. Lian, P. Wang, Z. Xu, Recent progress in minimizing the warpage and shrinkage deformations by the optimization of process parameters in plastic injection molding: a review, The International Journal of Advanced Manufacturing Technology 120 (2022) 85–101.

DOI: 10.1007/s00170-022-08859-0

[6] K. Oubellaouch, M. Sorgato, B. Reggiani, A Two-Step Simulation Approach to Predict Surface Micro-textures Replication in Injection-Molded Polymeric Parts, in: L. Fratini, L.M. Galantucci, L. Settineri (Eds.), Selected Topics in Manufacturing, Springer Nature Switzerland, Cham, 2025: p.157–173.

DOI: 10.1007/978-3-031-99501-9_10

[7] K. Oubellaouch, R. Pelaccia, N. Bonato, N. Bettoni, S. Carmignato, L. Orazi, L. Donati, B. Reggiani, Assessment of fiber orientation models predictability by comparison with X-ray µCT data in injection-molded short glass fiber-reinforced polyamide, The International Journal of Advanced Manufacturing Technology 130 (2024) 4479–4492.

DOI: 10.1007/s00170-024-12990-5

[8] M.A. Ali, N. Idayu, M.S.A. Aziz, M. Hadzley, Optimisation of process parameters in linear runner family injection mold using moldflow simulation software, I SSN 11 (2016).

[9] L. Zhang, T.-L. Chang, C.-C. Tsao, K.-C. Hsieh, C.-Y. Hsu, Analysis and optimization of injection molding process on warpage based on Taguchi design and PSO algorithm, Int J Adv Manuf Technol 137 (2025) 981–988.

DOI: 10.1007/s00170-025-15099-5

[10] F. Liu, J. Pang, Z. Xu, Multi-Objective Optimization of Injection Molding Process Parameters for Moderately Thick Plane Lens Based on PSO-BPNN, OMOPSO, and TOPSIS, Processes 12 (2023) 36.

DOI: 10.3390/pr12010036

[11] Y. Gao, X. Wang, Surrogate-based process optimization for reducing warpage in injection molding, Journal of Materials Processing Technology 209 (2009) 1302–1309.

DOI: 10.1016/j.jmatprotec.2008.03.048

[12] S. Taghizadeh, A. Özdemir, O. Uluer, WARPAGE PREDICTION IN PLASTIC INJECTION MOLDED PART USING ARTIFICIAL NEURAL NETWORK, 37 (2013).

[13] A. Gaspar-Cunha, J.B. Melo, T. Marques, A. Pontes, A Review on Injection Molding: Conformal Cooling Channels, Modelling, Surrogate Models and Multi-Objective Optimization, (2025).

DOI: 10.20944/preprints202503.1555.v1

[14] B.-O. Rhee, C.-S. Park, H.-K. Chang, H.-W. Jung, Y.-J. Lee, Automatic generation of optimum cooling circuit for large injection molded parts, Int. J. Precis. Eng. Manuf. 11 (2010) 439–444.

DOI: 10.1007/s12541-010-0050-z

[15] G. Wagner, J.M. Nóbrega, Conformal Cooling Channels in Injection Molding and Heat Transfer Performance Analysis Through CFD—A Review, Energies 18 (2025) 1972.

DOI: 10.3390/en18081972
