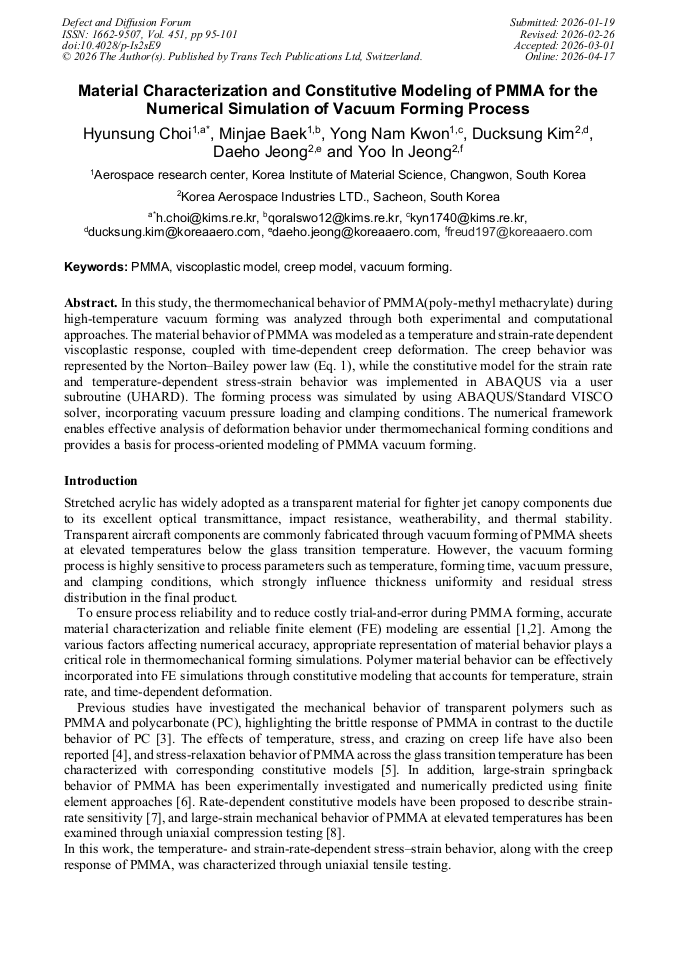

Material Characterization and Constitutive Modeling of PMMA for the Numerical Simulation of Vacuum Forming Process

Abstract:

In this study, the thermomechanical behavior of PMMA(poly-methyl methacrylate) during high-temperature vacuum forming was analyzed through both experimental and computational approaches. The material behavior of PMMA was modeled as a temperature and strain-rate dependent viscoplastic response, coupled with time-dependent creep deformation. The creep behavior was represented by the Norton–Bailey power law (Eq. 1), while the constitutive model for the strain rate and temperature-dependent stress-strain behavior was implemented in ABAQUS via a user subroutine (UHARD). The forming process was simulated by using ABAQUS/Standard VISCO solver, incorporating vacuum pressure loading and clamping conditions. The numerical framework enables effective analysis of deformation behavior under thermomechanical forming conditions and provides a basis for process-oriented modeling of PMMA vacuum forming.

• Periodical: Defect and Diffusion Forum (Volume 451)
• Pages: 95-101
• DOI: https://doi.org/10.4028/p-Is2sE9
• Online since: April 2026
• Authors: Hyunsung Choi*, Minjae Baek, Yong Nam Kwon, Ducksung Kim, Daeho Jeong, Yoo In Jeong
• Keywords: Creep Model, Polymethyl Methacrylate (PMMA), Vacuum Forming, Viscoplastic Model

References

[1] Dong, Y., R. J. T. Lin, and D. Bhattacharyya. "Finite element simulation on thermoforming acrylic sheets using dynamic explicit method." Polymers and Polymer Composites 14.3 (2006): 307-328.

DOI: 10.1177/096739110601400310

[2] Azdast, Taher, et al. "Numerical and experimental analysis of wall thickness variation of a hemispherical PMMA sheet in thermoforming process." The International Journal of Advanced Manufacturing Technology 64.1 (2013): 113-122.

DOI: 10.1007/s00170-012-4007-5

[3] Tang, Zhiye, Kazushi Fujimoto, and Susumu Okazaki. "A comparison of the brittle PMMA with the ductile PC on the elasticity and yielding from a molecular dynamics perspective." Polymer 226 (2021): 123809.

DOI: 10.1016/j.polymer.2021.123809

[4] Gao, Zongzhan, et al. "Creep life assessment craze damage evolution of polyethylene methacrylate." Advances in Polymer Technology 37.8 (2018): 3619-3628.

DOI: 10.1002/adv.22146

[5] Mathiesen, Danielle, Dana Vogtmann, and Rebecca B. Dupaix. "Characterization and constitutive modeling of stress-relaxation behavior of Poly (methyl methacrylate)(PMMA) across the glass transition temperature." Mechanics of Materials 71 (2014): 74-84.

DOI: 10.1016/j.mechmat.2014.01.003

[6] Mathiesen, D., A. Kakumani, and R. B. Dupaix. "Experimental Characterization and Finite Element Prediction of Large Strain Spring-Back Behavior of Poly (Methyl Methacrylate)." Journal of Engineering Materials and Technology 141.3 (2019): 031005.

DOI: 10.1115/1.4042744

[7] Mulliken, Adam D., and Mary C. Boyce. "Mechanics of the rate-dependent elastic–plastic deformation of glassy polymers from low to high strain rates." International journal of solids and structures 43.5 (2006): 1331-1356.

DOI: 10.1016/j.ijsolstr.2005.04.016

[8] Palm, G., R. B. Dupaix, and J. Castro. "Large strain mechanical behavior of poly (methyl methacrylate)(PMMA) near the glass transition temperature." (2006): 559-563.

DOI: 10.1115/1.2345447

[9] Nasraoui, M., et al. "Influence of strain rate, temperature and adiabatic heating on the mechanical behaviour of poly-methyl-methacrylate: Experimental and modelling analyses." Materials & Design 37 (2012): 500-509.

DOI: 10.1016/j.matdes.2011.11.032

[10] G'sell, Ch, and J. J. Jonas. "Determination of the plastic behaviour of solid polymers at constant true strain rate." Journal of materials science 14.3 (1979): 583-591.

DOI: 10.1007/bf00772717
