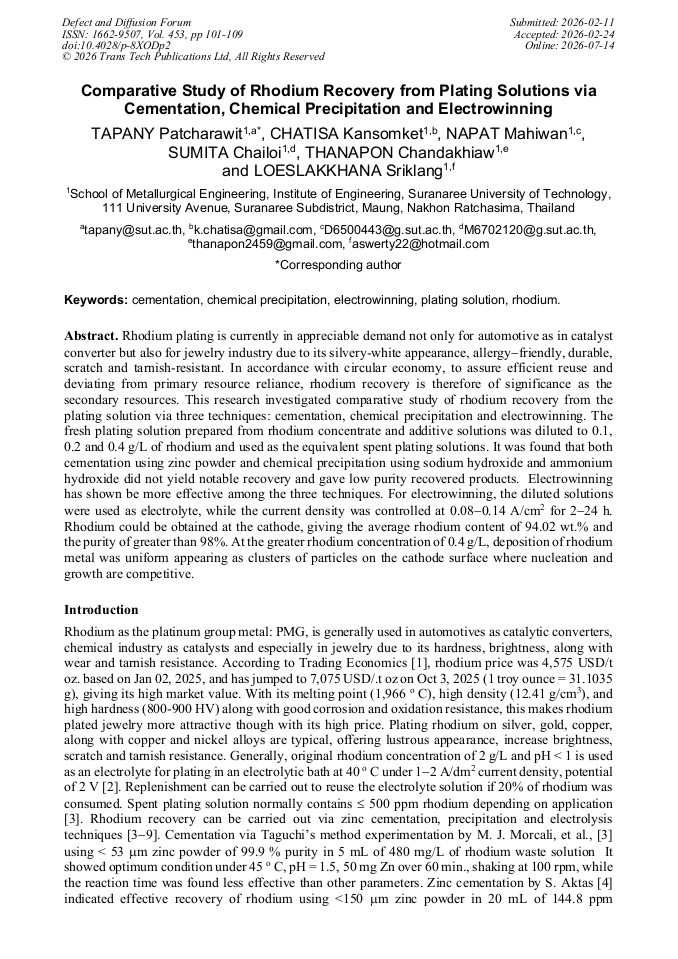

Comparative Study of Rhodium Recovery from Plating Solutions via Cementation, Chemical Precipitation and Electrowinning

Abstract:

Rhodium plating is currently in appreciable demand not only for automotive as in catalyst converter but also for jewelry industry due to its silvery-white appearance, allergy-friendly, durable, scratch and tarnish-resistant. In accordance with circular economy, to assure efficient reuse and deviating from primary resource reliance, rhodium recovery is therefore of significance as the secondary resources. This research investigated comparative study of rhodium recovery from the plating solution via three techniques: cementation, chemical precipitation and electrowinning. The fresh plating solution prepared from rhodium concentrate and additive solutions was diluted to 0.1, 0.2 and 0.4 g/L of rhodium and used as the equivalent spent plating solutions. It was found that both cementation using zinc powder and chemical precipitation using sodium hydroxide and ammonium hydroxide did not yield notable recovery and gave low purity recovered products. Electrowinning has shown be more effective among the three techniques. For electrowinning, the diluted solutions were used as electrolyte, while the current density was controlled at 0.08-0.14 A/cm² for 2-24 h. Rhodium could be obtained at the cathode, giving the average rhodium content of 94.02 wt.% and the purity of greater than 98%. At the greater rhodium concentration of 0.4 g/L, deposition of rhodium metal was uniform appearing as clusters of particles on the cathode surface where nucleation and growth are competitive.

• Periodical: Defect and Diffusion Forum (Volume 453)
• Pages: 101-109
• DOI: https://doi.org/10.4028/p-8XODp2
• Online since: July 2026
• Authors: Tapany Patcharawit*, Chatisa Kansomket, Napat Mahiwan, Sumita Chailoi, Thanapon Chandakhiaw, Loeslakkhana Sriklang
• Keywords: Cementation, Chemical Precipitation, Electrowinning, Plating Solution, Rhodium

References

[1] Information on https://tradingeconomics.com/commodity/rhodium.

[2] RHODUNA® Diamond Bright operating instructions, Feb 2015, Umicore Galvanotechnik GmbH.

[3] M. H. Morcali, B. Zeytuncu and O. Yucel, "Rhodium cementation from spent plating solution using Taguchi's method", Canadian Metallurgical Quarterly, vol. 52, No. 4, 2013.

DOI: 10.1179/1879139513y.0000000062

[4] S. Aktas, "Rhodium recovery from rhodium-containing waste rinsing water via cementation using zinc powder", Hydrometallurgy, Vol. 106, pp.71-75, 2011.

DOI: 10.1016/j.hydromet.2010.12.005

[5] CN104178641A, Method for recovering rhodium from waste rhodium plating solution, 2014.

[6] CN105177306A, Method for recycling rhodium from sulfuric acid type rhodanized waste liquid, 2015.

[7] C.R.K. Rao, and D.C. Trivedi, Chemical and electrochemical depositions of platinum group metals and their applications, Coordination Chemistry Reviews, Vol. 249, p.613–631, 2005.

DOI: 10.1016/j.ccr.2004.08.015

[8] B.-C. Yu, S.-K. Kim, J.-S. Sohn, B.-S. Kim, K.-I. Rhee, H.-J. Sohn, Electrochemical behaviour and electrowinning of rhodium in acidic chloride solution, Journal of Applied Electrochemistry, Vol. 44, p.741–745, 2014.

DOI: 10.1007/s10800-014-0683-1

[9] V. Stanković, and C. Comninellis, Rhodium recovery and recycling from spent materials, 9th European Symposium on Electrochemical Engineering (9th ESEE), Chania, Greece, 19-23 June 2011.

[10] J.C. Armstrong, and G.R. Choppin, Radiochemistry of Rhodium. Nuclear Science Series, United States Atomic Energy Commission (USAEC), Virginia, p.17

DOI: 10.2172/4600178

[11] US 6,241,870 B1, J. A. Abys, et, al., Rhodium sulfate compounds and rhodium plating, May 6, 1999.

[12] R. Coetzee, C. Dorfling, and S. M. Bradshaw, Precipitation of Ru, Rh and Ir with iron ions from synthetic nickel sulphate leach solutions. Hydrometallurgy, Vol. 175, pp.79-92, 2018.

DOI: 10.1016/j.hydromet.2017.10.019

[13] S. Xie, X. Y. Liu, and Y. Xi, Shape-controlled syntheses of rhodium nanocrystals for the enhancement of their catalytic properties, Nano Research, 2014.

DOI: 10.1007/s12274-014-0674-x

[14] M. Arbib, B. Zhang, V. Lazarov, D. Stoychev, A. Milchev, and C. Buess-Herman, Electrochemical nucleation and growth of rhodium on gold substrates, Journal of Electroanalytical Chemistry, Vol. 510, pp.67-77, 2001.

DOI: 10.1016/s0022-0728(01)00545-9

[15] E.N. Schulz, D.R. Salinas, and S.G. García, Electrodeposition of rhodium onto a pre-treated glassy carbon surface, Electrochemistry Communications, Vol. 12, pp.583-586, 2010.

DOI: 10.1016/j.elecom.2010.02.005

[16] Y. Xia, Y. Xiong, B. Lim, and S. E. Skrabalak, Shape-Controlled Synthesis of Metal Nanocrystals: Simple Chemistry Meets Complex Physics?, Angewandte Chemie International Edition, Vol. 48, p.60–103, 2008.

DOI: 10.1002/anie.200802248

[17] S. Xie, S.-I. Choi, X. Xia, and Y. Xia, Catalysis on faceted noble-metal nanocrystals: both shape and size matter. Current Opinion in Chemical Engineering, Vol. 2, pp.142-150, 2013.

DOI: 10.1016/j.coche.2013.02.003
