Multiphase Flow Analysis of Hydraulic Conveying of Coal Reject from Pulverized Coal Combustion

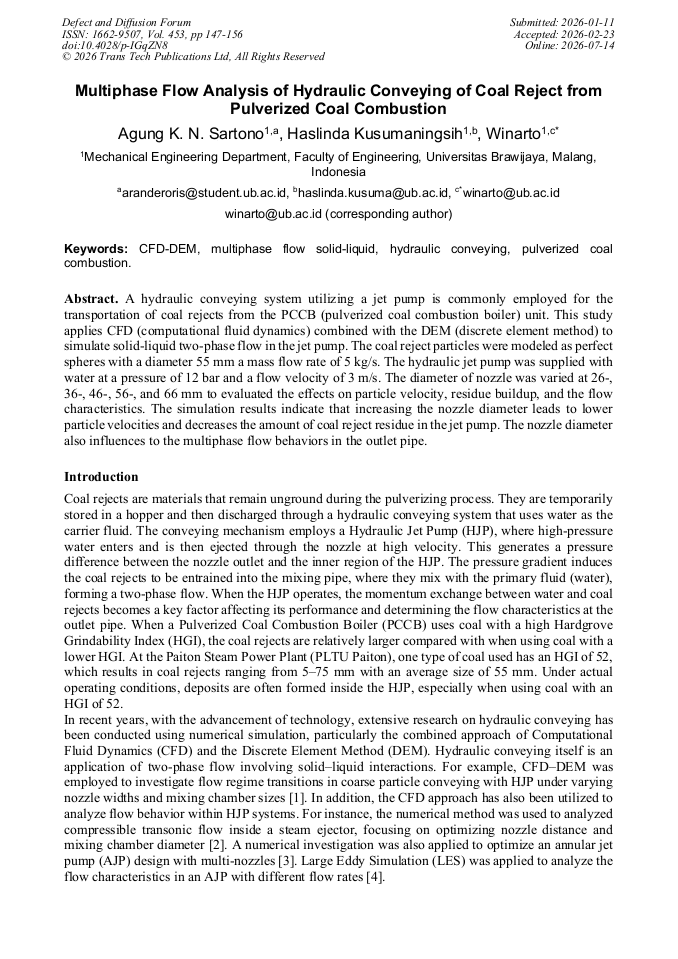

Article Preview

Abstract:

A hydraulic conveying system utilizing a jet pump is commonly employed for the transportation of coal rejects from the PCCB (pulverized coal combustion boiler) unit. This study applies CFD (computational fluid dynamics) combined with the DEM (discrete element method) to simulate solid-liquid two-phase flow in the jet pump. The coal reject particles were modeled as perfect spheres with a diameter 55 mm a mass flow rate of 5 kg/s. The hydraulic jet pump was supplied with water at a pressure of 12 bar and a flow velocity of 3 m/s. The diameter of nozzle was varied at 26-, 36-, 46-, 56-, and 66 mm to evaluated the effects on particle velocity, residue buildup, and the flow characteristics. The simulation results indicate that increasing the nozzle diameter leads to lower particle velocities and decreases the amount of coal reject residue in the jet pump. The nozzle diameter also influences to the multiphase flow behaviors in the outlet pipe.

You might also be interested in these eBooks
Physical Metallurgy, Heat and Mass Transfer Phenomena View Preview

Info:

Periodical:

Defect and Diffusion Forum (Volume 453)

Pages:

147-156

DOI:

https://doi.org/10.4028/p-IGqZN8

Citation:

Cite this paper

Online since:

July 2026

Authors:

Agung K.N. Sartono, Haslinda Kusumaningsih, Winarto Winarto*

Keywords:

CFD-DEM, Hydraulic Conveying, Multiphase Flow Solid-Liquid, Pulverized Coal Combustion

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2026 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author
