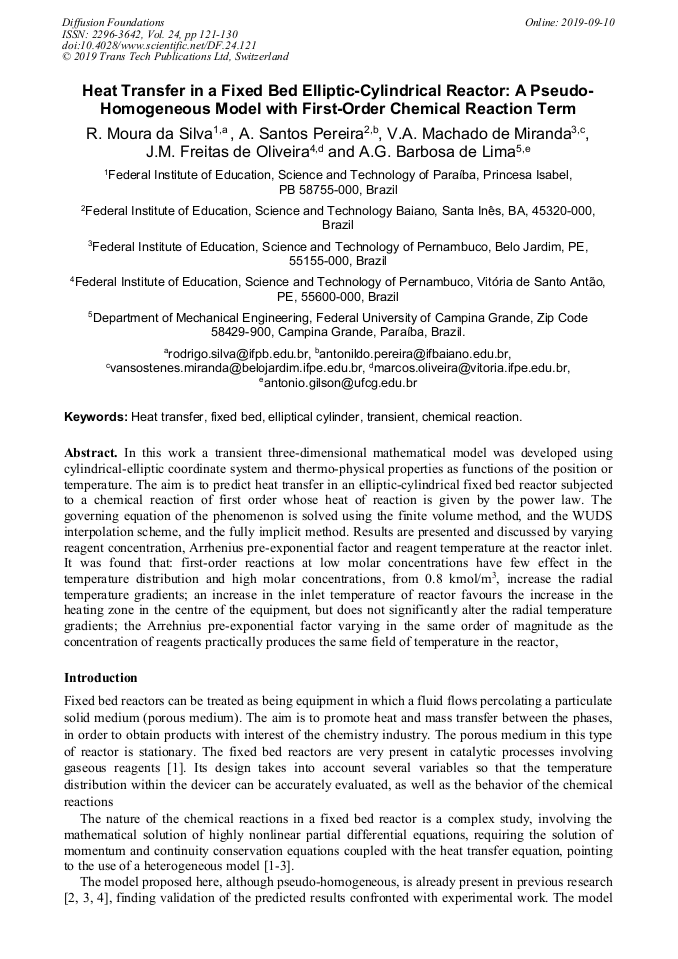

Heat Transfer in a Fixed Bed Elliptic-Cylindrical Reactor: A Pseudo-Homogeneous Model with First-Order Chemical Reaction Term

Abstract:

In this work a transient three-dimensional mathematical model was developed using cylindrical-elliptic coordinate system and thermo-physical properties as functions of the position or temperature. The aim is to predict heat transfer in an elliptic-cylindrical fixed bed reactor subjected to a chemical reaction of first order whose heat of reaction is given by the power law. The governing equation of the phenomenon is solved using the finite volume method, and the WUDS interpolation scheme, and the fully implicit method. Results are presented and discussed by varying reagent concentration, Arrhenius pre-exponential factor and reagent temperature at the reactor inlet. It was found that: first-order reactions at low molar concentrations have few effect in the temperature distribution and high molar concentrations, from 0.8 kmol/m³, increase the radial temperature gradients; an increase in the inlet temperature of reactor favours the increase in the heating zone in the centre of the equipment, but does not significantly alter the radial temperature gradients; the Arrehnius pre-exponential factor varying in the same order of magnitude as the concentration of reagents practically produces the same field of temperature in the reactor,

• Periodical: Diffusion Foundations (Volume 24)
• Pages: 121-130
• DOI: https://doi.org/10.4028/www.scientific.net/DF.24.121
• Online since: September 2019
• Authors: R. Moura da Silva*, A. Santos Pereira, Vansostenes Antonio Machado de Miranda, J.M. Freitas de Oliveira, A.G. Barbosa de Lima
• Keywords: Chemical Reaction, Elliptical Cylinder, Fixed Bed, Heat Transfer, Transient

References

[1] R.M. Silva, A.G.B. Lima, A.S. Pereira, M.C.N. Machado, R.S. Santos. Unsteady state heat transfer in packed-bed elliptic cylindrical reactor: theory, advanced modeling and applications. in: João M.P.Q. Delgado, A. G. B. Lima (Eds.), Transport Phenomena in Multiphase Systems, 93, Springer International Publishing AG, Cham, 2018, pp.139-179.

DOI: 10.1007/978-3-319-91062-8_5

[2] L.G. Oliveira, Heat transfer in fixed bed elliptical-cylindrical reactor: thermal, fluid dynamics and geometric aspects, Doctoral Thesis in Process Engineering, Federal University of Campina Grande, Campina Grande, Brazil, (2004).

DOI: 10.21475/ajcs.2016.10.10.p7455

[3] R.M. Silva, Fixed bed elliptical-cylindrical reactor: phenomenological and geometric transient evaluations. Doctoral Thesis in Process Engineering, Federal University of Campina Grande, Campina Grande, Brazil, (2018).

DOI: 10.21475/ajcs.18.12.08.pne1177

[4] A. G. Silva Filho, Heat transfer in elliptical cylindrical solid bed elliptical reactor: modeling, simulation and optimization. Doctoral Thesis in Process Engineering, Federal University of Campina Grande, Campina Grande, Brazil, (2013).

DOI: 10.21475/ajcs.2016.10.10.p7455

[5] W. Magnus, F. Oberhettinger, R.P. Soni: Formulas and Theorems for the Special Functions of Mathematical Physics, Springer-Verlag, Berlin, 1966, pp.472-495.

DOI: 10.1007/978-3-662-11761-3_11

[6] E. Kreyszig, Advanced engineering mathematics. 9th. ed., New York, John Wiley & Sons, (2006).

[7] C. R. Maliska, Heat transfer and computational fluid mechanics. Rio de Janeiro: LCT-Livros Técnicos e Científicos Editora S. A., 2004, 456 p. (In Portuguese).

[8] D.A. Nield and A.Bejan, Convection in porous media. New York, Springer-Verlag, 1992, 408 p.

[9] O. Levenspiel., Chemical Reaction Engineering (American 3rd ed translation). São Paulo: Edgard Blucher Publishing Company, 2000, 584 p.

[10] P. Atkins and L. Jones, Princípios de química: Questioning the modern life and the environment. São Paulo: Bookman Publishing Company, 2001, 1040 p.

[11] Z. Pakowski, Z. Bartczak, C. Strumillo, S. Stenström, Evaluation of equations approximating thermodynamic and transport properties of water, steam and air for use in cad of drying processes, Drying Technol., 9(3) (1991) 753-773.

DOI: 10.1080/07373939108916708

[12] R.Y. Jumah, A.S. Mujumdar, G.S.V. Raghavan, A mathematical model for constant and intermittent batch drying of grains in a novel rotating jet spouted bed, Drying Technol., 14(3- 4) (1996) 765-902.

DOI: 10.1080/07373939608917124

[13] R.M. Silva, A.S. Pereira, A.G.B. Lima, M.V. Araújo, R.S. Santos, Heat Transfer in Packed Bed Elliptic-Cylindrical Reactor: The Geometry Effect, Deff. Diff. Forum, 391 (2019) 54-59.

DOI: 10.4028/www.scientific.net/ddf.391.54
