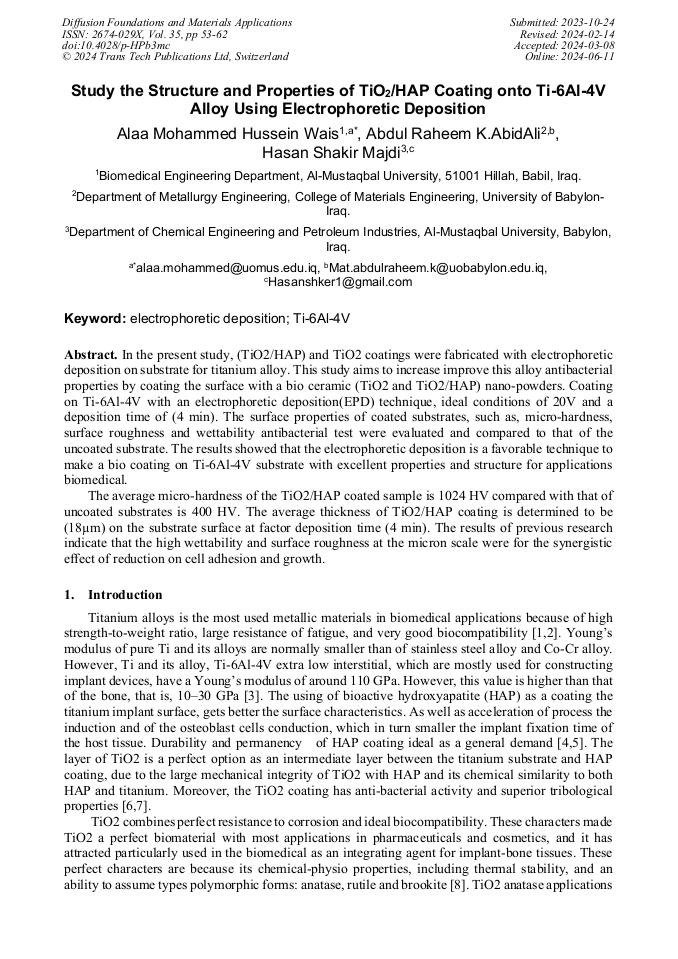

Study the Structure and Properties of TiO₂/HAp Coating onto Ti-6Al-4V Alloy Using Electrophoretic Deposition

Abstract:

In the present study, (TiO2/HAP) and TiO2 coatings were fabricated with electrophoreticdeposition on substrate for titanium alloy. This study aims to increase improve this alloyantibacterial properties by coating the surface with a bio ceramic (TiO2 and TiO2/HAP)nano-powders. Coating on Ti-6Al-4V with an electrophoretic deposition(EPD) technique,ideal conditions of 20V and a deposition time of (4 min). The surface properties of coatedsubstrates, such as, micro-hardness, surface roughness and wettability antibacterial test wereevaluated and compared to that of the uncoated substrate. The results showed that theelectrophoretic deposition is a favorable technique to make a bio coating on Ti-6Al-4Vsubstrate with excellent properties and structure for applications biomedical.The average micro-hardness of the TiO2/HAP coated sample is 1024 HV compared withthat of uncoated substrates is 80 HV. The average thickness of TiO2/HAP coating isdetermined to be (18µm) on the substrate surface at factor deposition time (4 min). The resultsof previous research indicate that the high wettability and surface roughness at the micronscale were for the synergistic effect of reduction on cell adhesion and growth.

• Periodical: Diffusion Foundations and Materials Applications (Volume 35)
• Pages: 53-62
• DOI: https://doi.org/10.4028/p-HPb3mc
• Online since: June 2024
• Authors: Alaa Mohammed Hussein Wais*, Abdul Raheem Abid Ali, Hasan Sh. Majdi
• Keywords: Electrophoretic Deposition, Ti-6Al-4V

References

[1] Paul S. Nnamchi, Camillus Obayi, I.Todd, and M.W. Rainforth, Mechanical and electrochemical characterisation of new Ti–Mo–Nb–Zr alloys for biomedical applications. International Journal of Oral Implantology and Clinical Research, 2016. 60: pp.68-77.

DOI: 10.1016/j.jmbbm.2015.12.023

[2] K Prem Ananth, A Joseph Nathanael, Sujin P Jose, Tae Hwan Oh, and D Mangalaraj, A novel silica nanotube reinforced ionic incorporated hydroxyapatite composite coating on polypyrrole coated 316L SS for implant application. 2016. 59: pp.1110-1124.

DOI: 10.1016/j.msec.2015.10.045

[3] Overgaard S, Lind M, Glerup H, Grundvig S, Bunger C, Soballe K. Clinical Orthopaedics and Related Research. 1997:286.

[4] T Albrektsson, P.I. Brånemark, Hans-Arne Hansson and Lindström JJ, Osseo integrated titanium implants. Requirements for ensuring a long-lasting ,direct bone-to-implant anchorage in man. 1981. 52(2): pp.155-170.

DOI: 10.3109/17453678108991776

[5] Osman, R.B. and M.V.J.M. Swain, A critical review of dental implant materials with an emphasis on titanium versus zirconia. Journal Materials (Basel), 2015. 8(3): pp.932-958.

DOI: 10.3390/ma8030932

[6] L. Pawlowski; ״Thick Laser coatings: a review״; Journal of BiomaterialsVol.5, No.8,P. 279-295 (1999).

[7] Karin Eufinger; ״Effect of deposition conditions and doping on the structure, optical properties and photocatalytic activity of d.c. magnetron sputtered TiO2 thin films״; Ph.D. thesis University of Wetenschappen: Natuurkunde, (2007).

[8] Weikai Li and Baohong Han, Research and Application of Functionally Gradient Materials, Materials Science and Engineering ,(2018).

[9] Lorenzetti, M., The influence of surface modification on bacterial adhesion to titanium-based substrates. ACS Applied Materials & Interfaces, 2015. 7 ( 3 :)pp.1644-1651.

DOI: 10.1021/am507148n

[10] Zhitomirsky, I. and L.J.J.o.M.S.M.i.M. Gal-Or, Electrophoretic deposition of hydroxyapatite. Journal Mater Sci Mater Med. 8(4)( 1997) pp.213-219.

[11] V. Khalili, J. Khalil-Allafi and H. Maleki Ghalen; ״Titanium oxide coating on NiTi shape memory substrate using electrophoretic deposition process״; International Journal of Engineering Vol.26, Vol.7(2013) P.707-712.

DOI: 10.5829/idosi.ije.2013.26.07a.05

[12] Sorkhi, L., M. Farrokhi-Rad, and T.J.S. Shahrabi, Electrophoretic deposition of hydroxyapatite–chitosan-titania on stainless steel 316 L. 2(3)( 2019) pp.458-467.

DOI: 10.3390/surfaces2030034

[13] Satenra Kumar T.S.N. Sankara Narayanan and S.Ganesh Sundara Raman;״Thermal oxidation of Ti6Al4V alloy :Microstructural and electrochemical characterization״; Material Chemistry and Physics Vol. 119, (2010)P.337-346.

DOI: 10.1016/j.matchemphys.2009.09.007

[14] Rajan Anand; ״Electrophoretic Deposition of Hydroxyapatite on Ti6Al4V״; B.Sc. thesis, National Institute of Technology, Rourkela (2012).

[15] B. Dikici, M. Niinomi, M. Topuz, Y. Say, B. Aksakal, H. Yilmazer and M. Nakai, Synthesis and characterization of hydroxyapatite/TiO2 coatings on the β-type titanium alloys with different sintering parameters using sol-gel method, Protection of Metals and Physical Chemistry of Surfaces, Vol. 54, No. 3, 2018, p.457–462.

DOI: 10.1134/s2070205118030255

[16] Mohamed Shatta, Magdy Badawy, and Diab Haddad, 'Surface Hardness Evaluation of A Thermoplastic Nylon Denture Base Material', Al-Azhar Journal of Dental Science, Vol. 23 (2020) pp.343-346.

DOI: 10.21608/ajdsm.2020.129721

[17] Kumar, R.R. and M.J.M.L. Wang, Functionally graded bioactive coatings of hydroxyapatite/ titanium oxide composite system. Journal of Biomaterials Applications, 55(3) (2002)pp.133-137.

DOI: 10.1016/s0167-577x(01)00635-8

[18] Yusuf Kayali & Sukru Taktak, 'Characterization and Rockwell-C adhesion properties of chromium-based borided steels'. Journal of Adhesion Science and Technology, Vol. 29, (2015) pp.2065-2075.

DOI: 10.1080/01694243.2015.1052617
