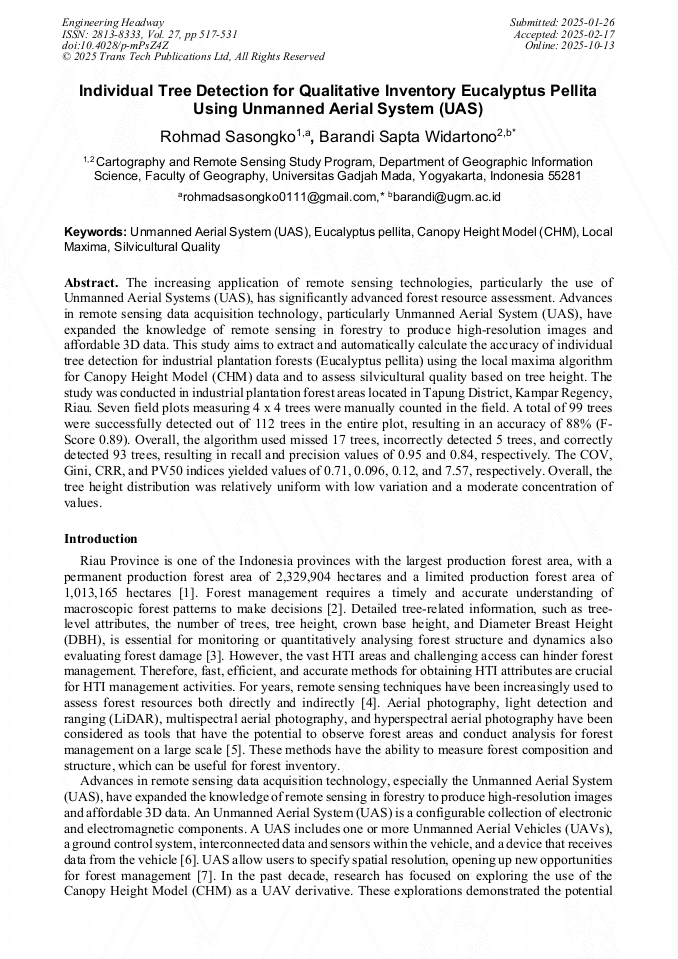

Individual Tree Detection for Qualitative Inventory Eucalyptus Pellita Using Unmanned Aerial System (UAS)

Abstract:

The increasing application of remote sensing technologies, particularly the use of Unmanned Aerial Systems (UAS), has significantly advanced forest resource assessment. Advances in remote sensing data acquisition technology, particularly Unmanned Aerial System (UAS), have expanded the knowledge of remote sensing in forestry to produce high-resolution images and affordable 3D data. This study aims to extract and automatically calculate the accuracy of individual tree detection for industrial plantation forests (Eucalyptus pellita) using the local maxima algorithm for Canopy Height Model (CHM) data and to assess silvicultural quality based on tree height. The study was conducted in industrial plantation forest areas located in Tapung District, Kampar Regency, Riau. Seven field plots measuring 4 x 4 trees were manually counted in the field. A total of 99 trees were successfully detected out of 112 trees in the entire plot, resulting in an accuracy of 88% (F-Score 0.89). Overall, the algorithm used missed 17 trees, incorrectly detected 5 trees, and correctly detected 93 trees, resulting in recall and precision values of 0.95 and 0.84, respectively. The COV, Gini, CRR, and PV50 indices yielded values of 0.71, 0.096, 0.12, and 7.57, respectively. Overall, the tree height distribution was relatively uniform with low variation and a moderate concentration of values.

• Periodical: Engineering Headway (Volume 27)
• Pages: 517-531
• DOI: https://doi.org/10.4028/p-mPsZ4Z
• Online since: October 2025
• Authors: Rohmad Sasongko, Barandi Sapta Widartono*
• Keywords: Canopy Height Model (CHM), Eucalyptus pellita, Local Maxima, Silvicultural Quality, Unmanned Aerial System (UAS)

References

[1] Badan Pusat Statistik Provinsi Riau. (2022). Luas Kawasan Hutan dan Konservasi Perairan Tahun 2019 – 2021. Riau.

[2] Gatziolis, D., Lienard, J. F., Vogs, A., & Strigul, N. S. 3D tree dimensionality assessment using photogrammetry and small unmanned aerial vehicles. PloS one, 10(9), e0137765. (2015)..

DOI: 10.1371/journal.pone.0137765

[3] Kwak, D. A., Lee, W. K., Lee, J. H., Biging, G. S., & Gong, P. Detection of individual trees and estimation of tree height using LiDAR data. Forest Research, 12(6), 425-434. (2007).

DOI: 10.1007/s10310-007-0041-9

[4] Hansen, M., P. P., Moore, R., Hancher, M., Turubanova, S. A., Tyukavina, A., & Townshend, J. High-resolution global maps of 21st-century Forest Cover Change. Science, 850-853. (2013).

DOI: 10.1126/science.1244693

[5] Mohan, M., Silva, C. A., Klauberg, C., Jat, P., Catts, G., Cardil, A., & Dia, M. Individual tree detection from unmanned aerial vehicle (UAV) derived Canopy Height Model in an open canopy mixed conifer forest. Forests, 8(9), 340. (2017).

DOI: 10.3390/f8090340

[6] Blom, J. D. Unmanned aerial systems: A historical perspective. Fort Leavenworth, KS: Combat Studies Institute Press, 45. (2010).

[7] Wallace, L., Lucieer, A., & Watson, C. S. Evaluating tree detection and segmentation routines on very high resolution UAV LiDAR data. IEEE Transactions on Geoscience and Remote Sensing, 52(12), 7619-7628. (2014).

DOI: 10.1109/tgrs.2014.2315649

[8] Dempewolf, J., Nagol, J., Hein, S., Thiel, C., & Zimmermann, R. Measurement of within-season tree height growth in a mixed forest stand using UAV imagery. Forests, 8(7), 231. (2017).

DOI: 10.3390/f8070231

[9] Popescu, S. C., & Wynne, R. H. Seeing the trees in the forest. Photogrammetric Engineering & Remote Sensing, 70(5), 589-604. (2004).

DOI: 10.14358/pers.70.5.589

[10] Erikson, M. Segmentation of individual tree crowns in colour aerial photographs using region growing supported by fuzzy rules. Canadian Journal of Forest Research, 33(8), 1557-1563. (2003).

DOI: 10.1139/x03-062

[11] Huang, H., Li, X., & Chen, C. Individual tree crown detection and delineation from very-high-resolution UAV images based on bias field and markercontrolled watershed segmentation algorithms. Applied Earth Observations and Remote Sensing, 11(7), 2253-2262. (2018).

DOI: 10.1109/jstars.2018.2830410

[12] Li, W., Guo, Q., Jakubowski, M. K., & Kelly, M. A new method for segmenting individual trees from the lidar Point cloud. Photogrammetric Engineering & Remote Sensing, 78(1), 75-84. (2012).

DOI: 10.14358/pers.78.1.75

[13] Selim, S., Sonmez, N.K., Coslu, M. and Onur, I., Semi-automatic tree detection from images of unmanned aerial vehicle using object-based image analysis method. The Indian Society of Remote Sensing, 47, 193-200. (2019).

DOI: 10.1007/s12524-018-0900-1

[14] trîmbu, V. F., & Strîmbu, B. M. A graph-based segmentation algorithm for tree crown extraction using airborne LiDAR data. ISPRS Journal of Photogrammetry and Remote Sensing, 104, 30-43. (2015).

DOI: 10.1016/j.isprsjprs.2015.01.018

[15] Weinstein, B. G., Marconi, S., Bohlman, S., Zare, A., & White, E. Individual tree-crown detection in RGB imagery using semi-supervised deep learning neural networks. Remote Sensing, 11(11), 1309. (2019).

DOI: 10.3390/rs11111309

[16] Butt, N., Slade, E., Thompson, J., Malhi, Y., & Riutta, T. Quantifying the sampling error in tree census measurements by volunteers and its effect on carbon stock estimates. Ecological Applications, 23(4), 936-943. (2013).

DOI: 10.1890/11-2059.1

[17] Orwa, C., Mutua, A., Kindt, R., Jamnadass, R., & Simons, A. Agroforestree Database: a tree reference and selection guide. Version 4. (2009).

[18] Ramadhon, S., Tryono, F. Y., Fauzi, I., & Pramudita, G. N. Perbandingan Ketelitian GNSS dengan Metode NRTK, Real-Time PPP dan Post-Processed PPP. JGISE: Journal of Geospatial Information Science and Engineering, 5(2), 63-70.

DOI: 10.22146/jgise.73558

[19] Wolf, P. R., Gunadi, Gunawan, T., & Zuharnen. Elemen fotogrametri: dengan interpretasi foto udara dan penginderaan jauh. Gadjah Mada University Press. (1993).

[20] Matese, A., Di Gennaro, S. F., & Berton, A. Assessment of a Canopy Height Model (CHM) in a vineyard using UAV-based multispectral imaging. International Journal of Remote Sensing, 38(8-10), 2150-2160. (2017).

DOI: 10.1080/01431161.2016.1226002

[21] Mohan, M., Leite, R. V., Broadbent, E. N., Wan Mohd Jaafar, W. S., Srinivasan, S., Bajaj, S., & Cardil, A. Individual tree detection using UAV-lidar and UAV-SfM data: A tutorial for beginners. Open Geosciences, 13(1), 1028-1039. (2021).

DOI: 10.1515/geo-2020-0290

[22] Belcore, E., Wawrzaszek, A., Wozniak, E., Grasso, N., & Piras, M. Individual tree detection from uav imagery using hölder exponent. Remote Sensing, 12(15), 2407. (2020).

DOI: 10.3390/rs12152407

[23] Ramalho de Oliveira, L. F., Lassiter, H. A., Wilkinson, B., Whitley, T., Ifju, P., Logan, S. R., & Martin, T. A. Moving to automated tree inventory: Comparison of uas-derived lidar and photogrammetric data with manual ground estimates. Remote Sensing, 13(1), 72. (2020).

DOI: 10.3390/rs13010072

[24] Wulder, M., Niemann, K. O., & Goodenough, D. G. Local maximum filtering for the extraction of tree locations and basal area from high spatial resolution imagery. Remote Sensing of environment, 73(1), 103-114. (2000).

DOI: 10.1016/s0034-4257(00)00101-2

[25] Yu, K., Hao, Z., Post, C. J., Mikhailova, E. A., Lin, L., Zhao, G., ... & Liu, J. Comparison of classical methods and mask R-CNN for automatic tree detection and mapping using UAV imagery. Remote Sensing, 14(2), 295. (2022).

DOI: 10.3390/rs14020295

[26] Dralle, K., & Rudemo, M. number estimation by kernel smoothing of aerial photos. Canadian journal of forest research, 26(7), 1228-1236. (1996).

DOI: 10.1139/x26-137

[27] Guerra-Hernández, J., Cosenza, D. N., Rodriguez, L. C. E., Silva, M., Tomé, M., Díaz-Varela, R. A., & González-Ferreiro, E. Comparison of ALS-and UAV (SfM)-derived high-density Point clouds for individual tree detection in Eucalyptus plantations. International Journal of Remote Sensing, 39(15-16), 5211-5235. (2018).

DOI: 10.1080/01431161.2018.1486519

[28] Lorenz, M. O. Methods of measuring the concentration of wealth. Publications of the American statistical association, 9(70), 209-219. (1905).

DOI: 10.1080/15225437.1905.10503443

[29] McCoy, R. M. Field methods in remote sensing. Guilford Press. (2005).

[30] Ding, C. S., Haieh, C. T., Wu, Q., & Pedram, M. Stratified random sampling for power estimation. International Conference on Computer Aided Design, 576-582. (1996).

DOI: 10.1109/iccad.1996.569913

[31] Pouliot, D. A., King, D. J., Bell, F. W., & Pitt, D. G. Automated tree crown detection and delineation in high-resolution digital camera imagery of coniferous forest regeneration. Remote sensing of environment, 82(2-3), 322-334. (2002).

DOI: 10.1016/s0034-4257(02)00050-0

[32] Dandois, J. P., Olano, M., & Ellis, E. C. Optimal altitude, overlap, and weather conditions for computer vision UAV estimates of forest structure. Remote sensing, 7(10), 13895-13920. (2015).

DOI: 10.3390/rs71013895

[33] Gonroudobou, O. B. H., Silvestre, L. H., Diez, Y., Nguyen, H. T., & Caceres, M. L. L. Treetop detection in mountainous forests using UAV terrain awareness function. Computation, 10(6), 90. (2022).

DOI: 10.3390/computation10060090
