Experimental and Computational Evaluation of Serpentine, Parallel, and Pin-Type Flow Fields in Proton Exchange Membrane Fuel Cells

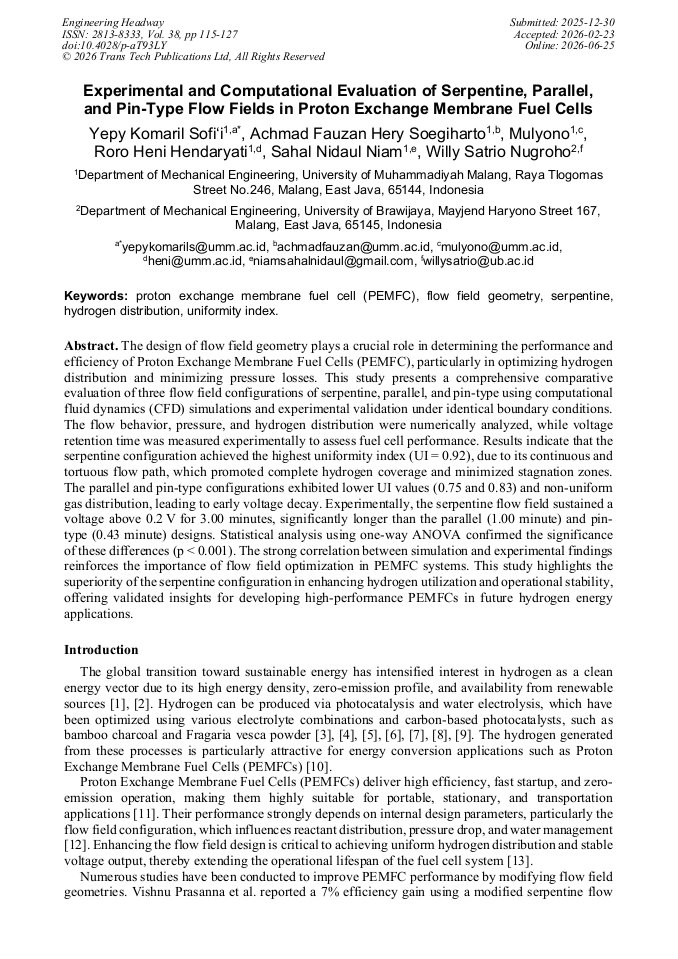

Article Preview

Abstract:

The design of flow field geometry plays a crucial role in determining the performance and efficiency of Proton Exchange Membrane Fuel Cells (PEMFC), particularly in optimizing hydrogen distribution and minimizing pressure losses. This study presents a comprehensive comparative evaluation of three flow field configurations of serpentine, parallel, and pin-type using computational fluid dynamics (CFD) simulations and experimental validation under identical boundary conditions. The flow behavior, pressure, and hydrogen distribution were numerically analyzed, while voltage retention time was measured experimentally to assess fuel cell performance. Results indicate that the serpentine configuration achieved the highest uniformity index (UI = 0.92), due to its continuous and tortuous flow path, which promoted complete hydrogen coverage and minimized stagnation zones. The parallel and pin-type configurations exhibited lower UI values (0.75 and 0.83) and non-uniform gas distribution, leading to early voltage decay. Experimentally, the serpentine flow field sustained a voltage above 0.2 V for 3.00 minutes, significantly longer than the parallel (1.00 minute) and pin-type (0.43 minute) designs. Statistical analysis using one-way ANOVA confirmed the significance of these differences (p < 0.001). The strong correlation between simulation and experimental findings reinforces the importance of flow field optimization in PEMFC systems. This study highlights the superiority of the serpentine configuration in enhancing hydrogen utilization and operational stability, offering validated insights for developing high-performance PEMFCs in future hydrogen energy applications.

You might also be interested in these eBooks
4th International Conference on Mechanical Engineering Research and Application View Preview

Info:

Periodical:

Engineering Headway (Volume 38)

Pages:

115-127

DOI:

https://doi.org/10.4028/p-aT93LY

Citation:

Cite this paper

Online since:

June 2026

Authors:

Yepy Komaril Sofi‘i*, Achmad Fauzan Hery Soegiharto, Mulyono Mulyono, Roro Heni Hendaryati, Sahal Nidaul Niam, Willy Satrio Nugroho

Keywords:

Flow Field Geometry, Hydrogen Distribution, Proton Exchange Membrane Fuel Cell (PEMFC), Serpentine, Uniformity Index

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2026 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] Y. K. Sofi'i, E. Siswanto, Winarto, T. Ueda, and I. N. G. Wardana, "The role of activated carbon in boosting the activity of clitoria ternatea powder photocatalyst for hydrogen production," Int J Hydrogen Energy, vol. 45, no. 43, p.22613–22628, 2020.

DOI: 10.1016/j.ijhydene.2020.05.103

Google Scholar

[2] S. Sudarman, H. Suprianto, A. F. H. Soegiharto, and Y. K. Sofi'i, "Hydrogen gas generation through water electrolysis with Fragaria catalyst," AIP Conf Proc, vol. 2702, no. 1, p.040006, Nov. 2023.

DOI: 10.1063/5.0154964

Google Scholar

[3] P. Purnami, N. Willy Satrio, Y. K. Sofi'i, and I. N. G. Wardana, "The impact of mechanical vibration at cathode on hydrogen yields in water electrolysis," J Power Sources, vol. 615, p.235075, 2024.

DOI: 10.1016/j.jpowsour.2024.235075

Google Scholar

[4] P. Purnami, W. winarto, Y. K. Sofi'i, W. S. Nugroho, and I. N. G. Wardana, "The enhancement of magnetic field assisted water electrolysis hydrogen production from the compact disc recordable waste polycarbonate layer," Int J Hydrogen Energy, vol. 48, no. 48, p.18154–18165, 2023.

DOI: 10.1016/j.ijhydene.2023.01.329

Google Scholar

[5] P. Purnami, W. S. N, I. P. Tama, W. W, Y. K. Sofi'i, and I. N. G. Wardana, "The analytic hierarchy process for the selection of water electrolysis electromagnetic ionization booster," Electrochim Acta, vol. 512, p.145499, 2025.

DOI: 10.1016/j.electacta.2024.145499

Google Scholar

[6] Y. K. Sofi'i and S. Sudarman, "Peran Kaolin Clay dan Karbon Aktif dalam Produksi Gas Hidrogen dengan Metode Fotokatalisis," Jurnal Rekayasa Material, Manufaktur dan Energi, vol. 5, no. 1, p.46–55, 2022.

DOI: 10.21070/r.e.m.v2i1.805

Google Scholar

[7] Y. Komaril Sofi'i, E. Siswanto, Winarto, and I. N. G. Wardana, "Hydrogen production by photocatalysis method of glutamic acid and activated carbon," E3S Web of Conferences, vol. 181, p.0–4, 2020.

DOI: 10.1051/e3sconf/202018101009

Google Scholar

[8] Y. K. Sofi'i, E. Siswanto, Winarto, and I. Nyoman Gede Wardana, "The effect of molecular dynamic energy of photocatalysts on hydrogen production," IOP Conf Ser Mater Sci Eng, vol. 1034, no. 1, p.012034, 2021.

DOI: 10.1088/1757-899X/1034/1/012034

Google Scholar

[9] Y. K. Sofi'i, E. Siswanto, Winarto, and I. N. G. Wardana, "Development Of Bamboo Charcoal And Fragaria Vesca Powder Photocatalysts In Hydrogen Production Via Water Splitting," Eastern-European Journal of Enterprise Technologies, vol. 6, no. 6–108, p.80–92, 2020.

DOI: 10.15587/1729-4061.2020.213277

Google Scholar

[10] E. Abbasian Hamedani, S. A. Alenabi, and S. Talebi, "Hydrogen as an energy source: A review of production technologies and challenges of fuel cell vehicles," Energy Reports, vol. 12, p.3778–3794, 2024.

DOI: 10.1016/j.egyr.2024.09.030

Google Scholar

[11] Z. Wang, Z. Liu, L. Fan, Q. Du, and K. Jiao, "Application progress of small-scale proton exchange membrane fuel cell," Energy Reviews, vol. 2, no. 2, p.100017, 2023.

DOI: 10.1016/j.enrev.2023.100017

Google Scholar

[12] C. Rocha, T. Knöri, P. Ribeirinha, and P. Gazdzicki, "A review on flow field design for proton exchange membrane fuel cells: Challenges to increase the active area for MW applications," Renewable and Sustainable Energy Reviews, vol. 192, p.114198, 2024.

DOI: 10.1016/j.rser.2023.114198

Google Scholar

[13] Y. Zhou and B. Chen, "Investigation of optimization and evaluation criteria for flow field in proton exchange membrane fuel cell: A critical review," Renewable and Sustainable Energy Reviews, vol. 185, p.113584, 2023.

DOI: 10.1016/j.rser.2023.113584

Google Scholar

[14] K. Yeranee, C. Xu, Y. Rao, and Y. Zhang, "Experimental and numerical study of improving flow and heat transfer in a serpentine cooling channel with topology-optimized TPMS porous structures," Int J Heat Mass Transf, vol. 231, p.125873, 2024.

DOI: 10.1016/j.ijheatmasstransfer.2024.125873

Google Scholar

[15] T.-V. Duc, H.-N. Ba, and H.-C. Kim, "Enhanced uniformity of reactants and water content in single- and multi-serpentine channel of proton-exchange membrane fuel cell," Renew Energy, vol. 247, p.123049, 2025.

DOI: 10.1016/j.renene.2025.123049

Google Scholar

[16] Z. He, Y. Yan, and Z. Zhang, "Thermal management and temperature uniformity enhancement of electronic devices by micro heat sinks: A review," Energy, vol. 216, p.119223, 2021.

DOI: 10.1016/j.energy.2020.119223

Google Scholar

[17] O. Brakni, Y. Kerkoub, F. Amrouche, A. Mohammedi, and Y. K. Ziari, "CFD investigation of the effect of flow field channel design based on constriction and enlargement configurations on PEMFC performance," Fuel, vol. 357, p.129920, 2024.

DOI: 10.1016/j.fuel.2023.129920

Google Scholar

[18] Y. Wang et al., "Review of Flow Field Designs for Polymer Electrolyte Membrane Fuel Cells," Energies (Basel), vol. 16, no. 10, 2023.

DOI: 10.3390/en16104207

Google Scholar

[19] A. Zaffora, O. Barbera, E. Gallo, M. Santamaria, and G. Giacoppo, "The effect of pin-type flow field plate design on the current distribution in a H2-fed polymer electrolyte fuel cell," J Power Sources, vol. 616, p.235129, Jul. 2024.

DOI: 10.1016/j.jpowsour.2024.235129

Google Scholar

[20] V. D, P. D, V. M, R. D, I. R, and M. Kota, "Performance Optimisation of Proton Exchange Membrane Fuel Cell by Modifying Anode Flow Field Design," Advanced Energy Conversion Materials, p.224–239, Jun. 2024.

DOI: 10.37256/aecm.5220244684

Google Scholar

[21] S. T. Bunyan, H. A. Dhahad, D. S. Khudhur, and T. Yusaf, "The Effect of Flow Field Design Parameters on the Performance of PEMFC: A Review," Sustainability (Switzerland), vol. 15, no. 13, 2023.

DOI: 10.3390/su151310389

Google Scholar

[22] G. Lu, Q. Yan, S. Li, S. Chen, and Y. Li, "International Journal of Electrochemical Science Design and performance study of a kilowatt-class PEMFC stack with metal fiber felts as flow fields," Int J Electrochem Sci, vol. 19, no. 11, p.100839, 2024.

DOI: 10.1016/j.ijoes.2024.100839

Google Scholar

[23] Y. Al-okbi, M. Jaber, M. A. Atiya, and R. Al-dujele, "Design , analysis and development of a proton exchange membrane in fuel cell," Journal of Engineering Research, no. May, 2024.

DOI: 10.1016/j.jer.2024.07.019

Google Scholar

[24] C. Hu, Y. Zhao, Z. Zhang, H. Zhang, and D. Chen, "Optimization of flow field structure for proton exchange membrane fuel cell stack by multi-physics coupling simulation," Int J Electrochem Sci, vol. 18, no. 7, p.100195, 2023.

DOI: 10.1016/J.IJOES.2023.100195

Google Scholar

[25] X. Chen et al., "Performance study on a stepped flow field design for bipolar plate in PEMFC," Energy Reports, vol. 7, p.336–347, 2021.

DOI: 10.1016/j.egyr.2021.01.003

Google Scholar

[26] S. N. ÖZDEMİR and İ. TAYMAZ, "CFD Investigation of Different Flow Field Designs for Efficient PEMFC Performance," Sakarya University Journal of Science, vol. 25, no. 3, p.690–698, 2021.

DOI: 10.16984/saufenbilder.901153

Google Scholar

[27] S. Maurya, P. T. Nguyen, Y. S. Kim, Q. Kang, and R. Mukundan, "Effect of flow field geometry on operating current density, capacity and performance of vanadium redox flow battery," J Power Sources, vol. 404, no. December, p.20–27, 2018.

DOI: 10.1016/j.jpowsour.2018.09.093

Google Scholar

[28] A. Zaffora, O. Barbera, E. Gallo, M. Santamaria, and G. Giacoppo, "The effect of pin-type flow field plate design on the current distribution in a H2-fed polymer electrolyte fuel cell," J Power Sources, vol. 616, p.235129, Jul. 2024.

DOI: 10.1016/j.jpowsour.2024.235129

Google Scholar

[29] W. Ren, J. Shen, X. Li, and C. Du, "International Journal of Automotive Manufacturing and Materials A Review of Fuel Cell System Technology: From Fuel Cell Stack to System Integration," p.1–11, 2022.

DOI: 10.53941/ijamm0101005

Google Scholar
