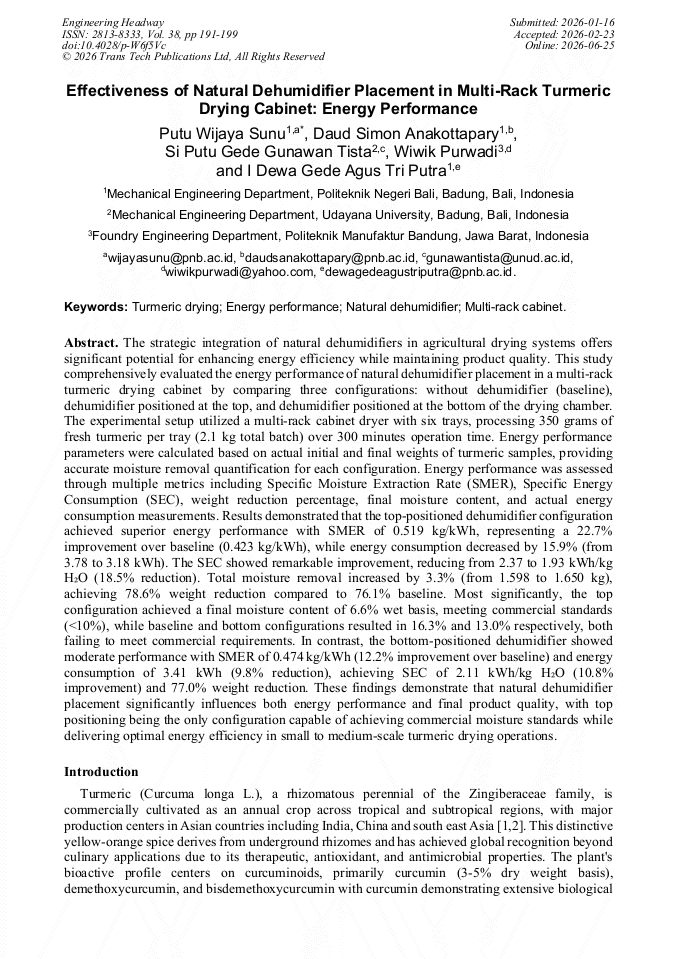

Effectiveness of Natural Dehumidifier Placement in Multi-Rack Turmeric Drying Cabinet: Energy Performance

Abstract:

The strategic integration of natural dehumidifiers in agricultural drying systems offers significant potential for enhancing energy efficiency while maintaining product quality. This study comprehensively evaluated the energy performance of natural dehumidifier placement in a multi-rack turmeric drying cabinet by comparing three configurations: without dehumidifier (baseline), dehumidifier positioned at the top, and dehumidifier positioned at the bottom of the drying chamber. The experimental setup utilized a multi-rack cabinet dryer with six trays, processing 350 grams of fresh turmeric per tray (2.1 kg total batch) over 300 minutes operation time. Energy performance parameters were calculated based on actual initial and final weights of turmeric samples, providing accurate moisture removal quantification for each configuration. Energy performance was assessed through multiple metrics including Specific Moisture Extraction Rate (SMER), Specific Energy Consumption (SEC), weight reduction percentage, final moisture content, and actual energy consumption measurements. Results demonstrated that the top-positioned dehumidifier configuration achieved superior energy performance with SMER of 0.519 kg/kWh, representing a 22.7% improvement over baseline (0.423 kg/kWh), while energy consumption decreased by 15.9% (from 3.78 to 3.18 kWh). The SEC showed remarkable improvement, reducing from 2.37 to 1.93 kWh/kg H₂O (18.5% reduction). Total moisture removal increased by 3.3% (from 1.598 to 1.650 kg), achieving 78.6% weight reduction compared to 76.1% baseline. Most significantly, the top configuration achieved a final moisture content of 6.6% wet basis, meeting commercial standards (<10%), while baseline and bottom configurations resulted in 16.3% and 13.0% respectively, both failing to meet commercial requirements. In contrast, the bottom-positioned dehumidifier showed moderate performance with SMER of 0.474 kg/kWh (12.2% improvement over baseline) and energy consumption of 3.41 kWh (9.8% reduction), achieving SEC of 2.11 kWh/kg H₂O (10.8% improvement) and 77.0% weight reduction. These findings demonstrate that natural dehumidifier placement significantly influences both energy performance and final product quality, with top positioning being the only configuration capable of achieving commercial moisture standards while delivering optimal energy efficiency in small to medium-scale turmeric drying operations.

• Periodical: Engineering Headway (Volume 38)
• Pages: 191-199
• DOI: https://doi.org/10.4028/p-W6f5Vc
• Online since: June 2026
• Authors: Putu Wijaya Sunu*, Daud Simon Anakottapary, Si Putu Gede Gunawan Tista, Wiwik Purwadi, I. Dewa Gede Agus Tri Putra
• Keywords: Energy Performance, Multi-Rack Cabinet, Natural Dehumidifier, Turmeric Drying

References

[1] A. Shahimoridi, M. Ebadi, M. Ayyari, and Y. Yamini, "Food Chemistry : X Optimizing drying techniques for turmeric ( Curcuma longa L .): impacts on color , curcumin , and essential oil composition," Food Chem. X, vol. 30, no. March, p.102914, 2025.

DOI: 10.1016/j.fochx.2025.102914

[2] S. Prasad, A. K. Tyagi, and B. B. Aggarwal, "Recent developments in delivery, bioavailability, absorption and metabolism of curcumin: the golden pigment from golden spice," Cancer Res. Treat. Off. J. Korean Cancer Assoc., vol. 46, no. 1, p.2–18, 2014.

DOI: 10.4143/crt.2014.46.1.2

[3] B. Kocaadam and N. Şanlier, "Curcumin, an active component of turmeric (Curcuma longa), and its effects on health," Crit. Rev. Food Sci. Nutr., vol. 57, no. 13, p.2889–2895, 2017.

DOI: 10.1080/10408398.2015.1077195

[4] J. Sharifi-Rad et al., "Turmeric and its major compound curcumin on health: bioactive effects and safety profiles for food, pharmaceutical, biotechnological and medicinal applications," Front. Pharmacol., vol. 11, p.550909, 2020.

DOI: 10.3389/fphar.2020.01021

[5] A. Malik and M. Kumar, "Assessment of a mixed-mode vertical solar dryer for experimental turmeric drying," Sol. Energy, vol. 282, no. June, p.112980, 2024, doi: 10.1016/j.solener. 2024.112980.

DOI: 10.1016/j.solener.2024.112980

[6] I. M. Krishnakumar, D. Kumar, E. Ninan, R. Kuttan, and B. Maliakel, "Enhanced absorption and pharmacokinetics of fresh turmeric (Curcuma longa L) derived curcuminoids in comparison with the standard curcumin from dried rhizomes," J. Funct. Foods, vol. 17, p.55–65, 2015.

DOI: 10.1016/j.jff.2015.04.026

[7] A. Sanuelly, M. De, R. Orlando, F. Oliveira, M. Oliveira, and F. Moura, "Curcumin in inflammatory bowel diseases: Cellular targets and molecular mechanisms," Biocell, vol. 47, no. 11, p.2547, 2023.

DOI: 10.32604/biocell.2023.043253

[8] I. Hamrouni-Sellami, F. Z. Rahali, I. B. Rebey, S. Bourgou, F. Limam, and B. Marzouk, "Total phenolics, flavonoids, and antioxidant activity of sage (Salvia officinalis L.) plants as affected by different drying methods," Food Bioprocess Technol., vol. 6, no. 3, p.806–817, 2013.

DOI: 10.1007/s11947-012-0877-7

[9] A. Borah, L. N. Sethi, S. Sarkar, and K. Hazarika, "Effect of drying on texture and color characteristics of ginger and turmeric in a solar biomass integrated dryer," J. Food Process Eng., vol. 40, no. 1, p. e12310, 2017.

DOI: 10.1111/jfpe.12310

[10] A. J. Fernando, C. Gunathunga, T. Brumm, and S. Amaratunga, "Drying turmeric (Curcuma longa L.) using far‐Infrared radiation: Drying characteristics and process optimization," J. Food Process Eng., vol. 44, no. 9, p. e13780, 2021.

DOI: 10.1111/jfpe.13780

[11] C. Dutta, D. K. Yadav, V. K. Arora, and S. Malakar, "Drying characteristics and quality analysis of pre-treated turmeric (Curcuma longa) using evacuated tube solar dryer with and without thermal energy storage," Sol. Energy, vol. 251, p.392–403, 2023.

DOI: 10.1016/j.solener.2023.01.032

[12] G. Jeevarathinam et al., "Infrared assisted hot air dryer for turmeric slices: Effect on drying rate and quality parameters," Lwt, vol. 144, p.111258, 2021.

DOI: 10.1016/j.lwt.2021.111258

[13] P. V Alfiya, E. Jayashree, and K. V Theertha, "Conventional sun drying and infrared convective drying of spices: A comparative evaluation on kinetics and quality," Sol. Energy, vol. 291, p.113396, 2025.

DOI: 10.1016/j.solener.2025.113396

[14] T. Chumroenphat, I. Somboonwatthanakul, S. Saensouk, and S. Siriamornpun, "Changes in curcuminoids and chemical components of turmeric (Curcuma longa L.) under freeze-drying and low-temperature drying methods," Food Chem., vol. 339, p.128121, 2021.

DOI: 10.1016/j.foodchem.2020.128121

[15] C. Tunckal and İ. Doymaz, "Performance analysis and mathematical modelling of banana slices in a heat pump drying system," Renew. Energy, vol. 150, p.918–923, 2020.

DOI: 10.1016/j.renene.2020.01.040

[16] D. Huang, P. Yang, X. Tang, L. Luo, and B. Sunden, "Application of infrared radiation in the drying of food products," Trends Food Sci. Technol., vol. 110, p.765–777, 2021.

DOI: 10.1016/j.tifs.2021.02.039

[17] P. Chen et al., "Effect of different drying techniques on moisture migration , nutritional profile and sensory attributes of peanut pods," LWT, vol. 216, no. September 2024, p.117360, 2025.

DOI: 10.1016/j.lwt.2025.117360

[18] R. K. Sahdev, "Present status of peanuts and progression in its processing and preservation techniques," Agric. Eng. Int. CIGR J., vol. 17, no. 3, 2015.

[19] L. Yao, L. Fan, and Z. Duan, "Effect of different pretreatments followed by hot-air and far-infrared drying on the bioactive compounds, physicochemical property and microstructure of mango slices," Food Chem., vol. 305, p.125477, 2020.

DOI: 10.1016/j.foodchem.2019.125477

[20] F. Salehi, "Recent applications and potential of infrared dryer systems for drying various agricultural products: A review," Int. J. Fruit Sci., vol. 20, no. 3, p.586–602, 2020.

DOI: 10.1080/15538362.2019.1616243

[21] C. Qu, Z. Li, Q. Yang, X. Wang, and D. Wang, "Effect of drying methods on peanut quality during storage," J. Oleo Sci., vol. 71, no. 1, p.57–66, 2022.

DOI: 10.5650/jos.ess21146

[22] M. Li et al., "Research progress and application of ultrasonic‐and microwave‐assisted food processing technology," Compr. Rev. Food Sci. Food Saf., vol. 22, no. 5, p.3707–3731, 2023.

DOI: 10.1111/1541-4337.13198

[23] O. K. Ozturk and P. S. Takhar, "Physical and viscoelastic properties of carrots during drying," J. Texture Stud., vol. 51, no. 3, p.532–541, 2020.

DOI: 10.1111/jtxs.12496

[24] L. Wang, X. Liu, J. Liu, T. Zheng, Z. Wang, and X. Liu, "Effects of different drying methods on the nutritional components , microstructure , and metabolomic profile of Spirulina maxima," Algal Res., vol. 84, no. October, p.103788, 2024.

DOI: 10.1016/j.algal.2024.103788

[25] S. Singh and S. Kumar, "Development of convective heat transfer correlations for common designs of solar dryer," Energy Convers. Manag., vol. 64, p.403–414, 2012.

DOI: 10.1016/j.enconman.2012.06.017

[26] K. Zhu, L. Li, G. Ren, X. Duan, W. Cao, and C. Qiu, "Efficient production of dried whole peanut fruits based on infrared assisted spouted bed drying," Foods, vol. 10, no. 10, p.2383, 2021.

DOI: 10.3390/foods10102383

[27] E. K. Akpinar and S. Toraman, "Determination of drying kinetics and convective heat transfer coefficients of ginger slices," Heat Mass Transf., vol. 52, no. 10, p.2271–2281, 2016.

DOI: 10.1007/s00231-015-1729-6

[28] A. Lingayat, V. P. Chandramohan, V. R. K. Raju, and A. Kumar, "Development of indirect type solar dryer and experiments for estimation of drying parameters of apple and watermelon," Therm. Sci. Eng. Prog., vol. 16, p.100477, 2020.

DOI: 10.1016/j.tsep.2020.100477

[29] J. P. Ekka, K. Bala, P. Muthukumar, and D. K. Kanaujiya, "Performance analysis of a forced convection mixed mode horizontal solar cabinet dryer for drying of black ginger (Kaempferia parviflora) using two successive air mass flow rates," Renew. Energy, vol. 152, p.55–66, 2020.

DOI: 10.1016/j.renene.2020.01.035

[30] Y.-Y. Pu and D.-W. Sun, "Combined hot-air and microwave-vacuum drying for improving drying uniformity of mango slices based on hyperspectral imaging visualisation of moisture content distribution," Biosyst. Eng., vol. 156, p.108–119, 2017.

DOI: 10.1016/j.biosystemseng.2017.01.006

[31] X. Lin, J.-L. Xu, and D.-W. Sun, "Comparison of moisture uniformity between microwave-vacuum and hot-air dried ginger slices using hyperspectral information combined with semivariogram," Dry. Technol., vol. 39, no. 8, p.1044–1058, 2021.

DOI: 10.1080/07373937.2020.1741006

[32] R. Sehrawat, P. K. Nema, and B. P. Kaur, "Quality evaluation and drying characteristics of mango cubes dried using low-pressure superheated steam, vacuum and hot air drying methods," Lwt, vol. 92, p.548–555, 2018.

DOI: 10.1016/j.lwt.2018.03.012

[33] N. Izli, G. İzli, and O. Taskin, "Influence of different drying techniques on drying parameters of mango," Food Sci. Technol., vol. 37, no. 4, p.604–612, 2017.

DOI: 10.1590/1678-457x.28316

[34] M. Xie, E. Chen, G. Huang, T. Jia, and Y. Dai, "Recent advancements in deep dehumidification technology: A review," Renew. Sustain. Energy Rev., vol. 211, p.115321, 2025.

DOI: 10.1016/j.rser.2024.115321

[35] M. M. Abd-Elhady, M. S. Salem, A. M. Hamed, and I. I. El-Sharkawy, "Solid desiccant-based dehumidification systems: A critical review on configurations, techniques, and current trends," Int. J. Refrig., vol. 133, p.337–352, 2022.

DOI: 10.1016/j.ijrefrig.2021.09.028

[36] H. Jo, D. Lee, S. Kwon, Y. Lee, and Y. Kim, "Multi-objective optimization of the operation strategies for heat pump tumble dryers with different fabric types," Appl. Therm. Eng., p.126752, 2025.

DOI: 10.1016/j.applthermaleng.2025.126752

[37] B. H. Lee, R. A. Sian, and C. C. Wang, "A rationally based model applicable for heat pump tumble dryer," Dry. Technol., vol. 37, no. 6, p.691–706, 2019.

DOI: 10.1080/07373937.2018.1454940

[38] P. W. Sunu, I. M. Suarta, I. M. Rasta, I. D. Gede, and A. Triputra, "Performance of Heat Pump Drying Equipped with Natural Dehumidifier : A Review from the Perspective of Relative Humidity of the Drying Cabin," Atlantis Press International BV.

DOI: 10.2991/978-94-6463-587-4
