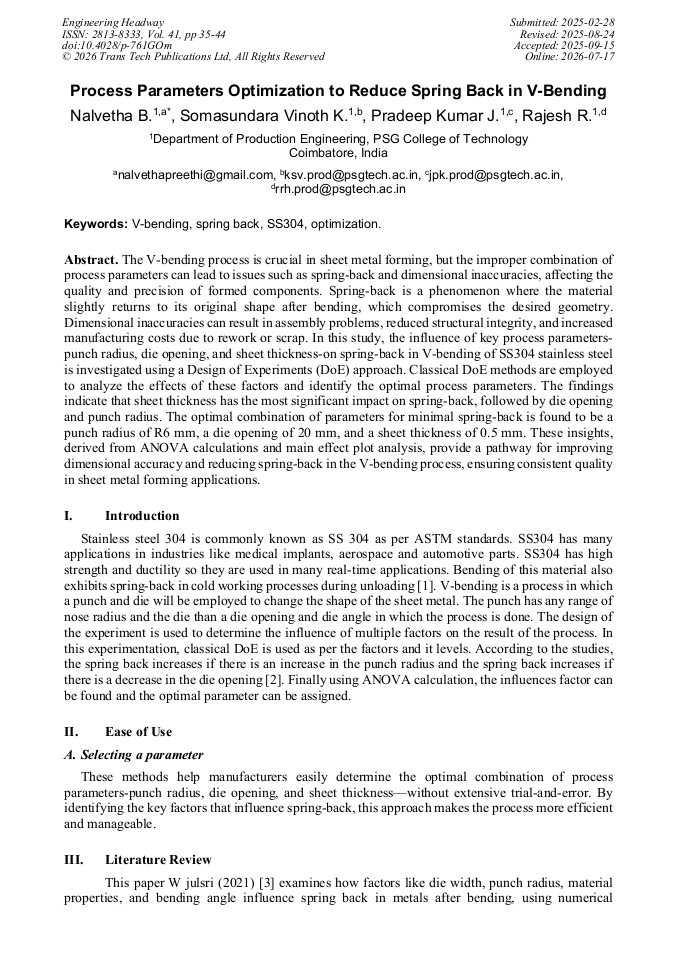

Process Parameters Optimization to Reduce Spring Back in V-Bending

Abstract:

The V-bending process is crucial in sheet metal forming, but the improper combination of process parameters can lead to issues such as spring-back and dimensional inaccuracies, affecting the quality and precision of formed components. Spring-back is a phenomenon where the material slightly returns to its original shape after bending, which compromises the desired geometry. Dimensional inaccuracies can result in assembly problems, reduced structural integrity, and increased manufacturing costs due to rework or scrap. In this study, the influence of key process parameters—punch radius, die opening, and sheet thickness—on spring-back in V-bending of SS304 stainless steel is investigated using a Design of Experiments (DoE) approach. Classical DoE methods are employed to analyze the effects of these factors and identify the optimal process parameters. The findings indicate that sheet thickness has the most significant impact on spring-back, followed by die opening and punch radius. The optimal combination of parameters for minimal spring-back is found to be a punch radius of R6 mm, a die opening of 20 mm, and a sheet thickness of 0.5 mm. These insights, derived from ANOVA calculations and main effect plot analysis, provide a pathway for improving dimensional accuracy and reducing spring-back in the V-bending process, ensuring consistent quality in sheet metal forming applications.

• Periodical: Engineering Headway (Volume 41)
• Pages: 35-44
• DOI: https://doi.org/10.4028/p-761GOm
• Online since: July 2026
• Authors: B. Nalvetha*, Vinoth K. Somasundara, Kumar J. Pradeep, R. Rajesh
• Keywords: Optimisation, Spring Back, SS304, V-Bending

References

[1] Mithu, M. A. H., Karim, M. A., Taj, F. A., & Rahman, A. (2025). Predicting springback in V-bending: Effects of load, load holding time, and heat treatment on common sheet-metal forming operations. Materials Today Communications, 43, 111668.

DOI: 10.1016/j.mtcomm.2025.111668

[2] Sharma, P. K., Gautam, V., & Agrawal, A. K. (2022). Investigations on effect of bending radius on springback behaviour of three-ply clad sheet. Materials Today: Proceedings, 62, 1651-1657.

DOI: 10.1016/j.matpr.2022.04.601

[3] W Julsri 1, A Sanrutsadakorn and V Uthaisangsuk., (2021)., "Experimental and numerical study of springback effect of advanced high strength steel in a V-shape bending", International Deep-Drawing Research Group Conference, 1157.

DOI: 10.1088/1757-899x/1157/1/012042

[4] Ali Jumah Aday., (2019)., "Analysis of Spring-back Behavior in Steel and Aluminum Sheets Using FEM", International information and engineering technology association, Vol. 43, No. 2, pp.95-98.

[5] Muhammad Wasif, Syed Amir Iqbal, Muhammad Tufail and Hassan Karim., (2019)., "Experimental Analysis and Prediction of Springback in V-bending Process of High-Tensile Strength Steels", The Indian Institute of Metals.

DOI: 10.1007/s12666-019-01843-5

[6] M A Suyuti, M Iswar, and R Nur., (2019)., " Effect of Punch Parameters on Springback for Mild Carbon Steel in A V-Shape Bending Process", International Seminar on Metallurgy and Materials, Materials Science and Engineering- 541.

DOI: 10.1088/1757-899x/541/1/012015

[7] Mohsen Valinezhad, Ehsan Etemadi, Ramin Hashemi and Mehdi Valinezhad., (2019)., " Experimental and FE analysis on spring-back of copper/aluminum layers sheet for a L-die bending process", Materials Research Express- 6.

DOI: 10.1088/2053-1591/ab51c8

[8] R. Srinivasan and G. Karthik Raja., (2019)., " Experimental study on bending behaviour of aluminium-copper clad sheets in V-bending process", Mechanics & Industry 20, 618.

DOI: 10.1051/meca/2019059

[9] Nuri Sen and Vedat Tasdemir., (2021)., "Experimental and numerical investigation of the springback behaviour of CP800 sheet after the V-bending process", Ironmaking & Steelmaking, VOL. 48, NO. 7, 811–818.

DOI: 10.1080/03019233.2021.1872466

[10] Jabbar Gattmah, Fahrettin Ozturk and Sadettin Orhan., (2019)., "Numerical Simulation of Bending Process for Steel Plate Using Finite Element Analysis", Arabian Journal for Science and Engineering.

DOI: 10.1007/s13369-019-04119-8

[11] Ali Isiktas and Vedat Taskin., (2020)., "Springback Behavior of Fiber Metal Laminates with Carbon Fiber Reinforced Core in V Bending Process", Arabian Journal for Science and Engineering.

DOI: 10.1007/s13369-020-04796-w

[12] Vuong Gia Hai, Nguyen Thi Hong Minh, and Duc Toan Nguyen., (2020)., "A study on experiment and simulation to predict the spring-back of SS400 steel sheet in large radius of V-bending process", Materials Research Express-7.

DOI: 10.1088/2053-1591/ab67f5
