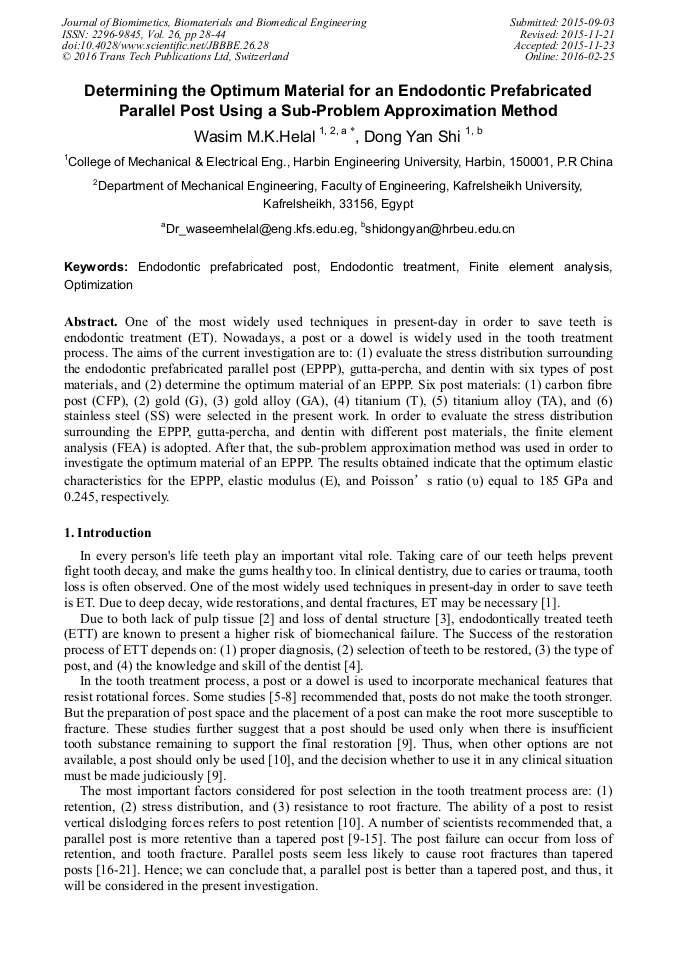

Determining the Optimum Material for an Endodontic Prefabricated Parallel Post Using a Sub-Problem Approximation Method

Abstract:

One of the most widely used techniques in present-day in order to save teeth is endodontic treatment (ET). Nowadays, a post or a dowel is widely used in the tooth treatment process. The aims of the current investigation are to: (1) evaluate the stress distribution surrounding the endodontic prefabricated parallel post (EPPP), gutta-percha, and dentin with six types of post materials, and (2) determine the optimum material of an EPPP. Six post materials: (1) carbon fibre post (CFP), (2) gold (G), (3) gold alloy (GA), (4) titanium (T), (5) titanium alloy (TA), and (6) stainless steel (SS) were selected in the present work. In order to evaluate the stress distribution surrounding the EPPP, gutta-percha, and dentin with different post materials, the finite element analysis (FEA) is adopted. After that, the sub-problem approximation method was used in order to investigate the optimum material of an EPPP. The results obtained indicate that the optimum elastic characteristics for the EPPP, elastic modulus (E), and Poisson’s ratio (υ) equal to 185 GPa and 0.245, respectively.

• Periodical: Journal of Biomimetics, Biomaterials and Biomedical Engineering (Volume 26)
• Pages: 28-44
• DOI: https://doi.org/10.4028/www.scientific.net/JBBBE.26.28
• Online since: February 2016
• Authors: Wasim M.K. Helal*, Dong Yan Shi
• Keywords: Endodontic Prefabricated Post, Endodontic Treatment, Finite Element Analysis, Optimization

References

[1] Mohamed Zaazou, Mohamed El-Anwar, Mohamed El-Zawahry and Mohamed Abou Elnaga, The Effect of Post Materials on stress Distribution on Endodontically Treated Lower first premolar: Finite Element Analysis study, Australian Journal of Basic and Applied Sciences, 6(12): 492-498, (2012).

[2] Assif, D. and C. Gorfil. Biomechanical Considerations in Restoring Endodontically Treated Teeth, J. Prosthet Dent., 71(6): 565-7, (1994).

DOI: 10.1016/0022-3913(94)90438-3

[3] Schwartz, R. and J.W. Robbins. Post Placement and Restoration of Endodontically Treated Teeth: a Literature Review, J. Endod., 30(5): 289-301, (2004).

DOI: 10.1097/00004770-200405000-00001

[4] Fernandes A, Rodngues S, SarDessa G, and 'Mehta A, Retention of endodontic post - A review, Endodontology, Vol 13, (2001).

[5] Guzy GE, Nicholls JI. In vitro comparison of intact endodontically treated teeth with and without endo-post reinforcement. J Prosthet Dent; 42: 39-44, (1979).

DOI: 10.1016/0022-3913(79)90328-7

[6] Trope M, Maltz DO, Tronstad L. Resistance to fracture of restored endodontically treated teeth. Endod Dent Traumatol; 1: 108-11, (1985).

DOI: 10.1111/j.1600-9657.1985.tb00571.x

[7] Morgano SM. Restoration of pulpless teeth: application of traditional principles in present and future contexts. J Prosthet Dent; 75: 375-80, (1996).

DOI: 10.1016/s0022-3913(96)90028-1

[8] Heydecke G, Butz F, Strub JR. Fracture strength and survival rate of endodontically treated maxillary incisors with approximal cavities after restoration with different post and core systems: an in-vitro study. J Dent; 29: 427-33, (2001).

DOI: 10.1016/s0300-5712(01)00038-0

[9] William C., D.M.D., A review of the management of endodontically treated teeth, J.A.D.A. 136 611-619, (2005).

[10] Richard S. Schwartz, DDS, and James W. Robbins, DDS, MA, Post Placement and Restoration of Endodontically Treated Teeth: A Literature Review, JOURNAL OF ENDODONTICS, VOL. 30, NO. 5, MAY , (2004).

DOI: 10.1097/00004770-200405000-00001

[11] Standlee JP, Caputo AA, Hanson EC. Retention of endodontic dowels: effects of cement, dowel length, diameter, and design. J Prosthet Dent; 39: 401-5, (1978).

DOI: 10.1016/s0022-3913(78)80156-5

[12] Felton DA, Webb EL, Kanoy BE, Dugoni J. Threaded endodontic dowels: effect of post design on incidence of root fracture. J Prosthet Dent1; 65: 179–87, (1991).

DOI: 10.1016/0022-3913(91)90159-t

[13] Johnson JK, Sakamura JS. Dowel form and tensile force. J Prosthet Dent; 40: 645-9, (1978).

[14] Standlee JP, Caputo AA, Hanson EC. Retention of endodontic dowels: effects of cement, dowel length, diameter, and design. J Prosthet Dent; 39(4): 400-5, (1978).

DOI: 10.1016/s0022-3913(78)80156-5

[15] Qualtrough AJ, Chandler NP, Purton DG. A comparison of the retention of tooth-colored posts. Quintessence Int; 34(3): 199-201, (2003).

[16] Martinez-Insua A, da Silva L, Rilo B, Santana U. Comparison of the fracture resistances of pulpless teeth restored with a cast post and core or carbon-fiber post with a composite core. J Prosthet Dent; 80(5): 527-32, (1998).

DOI: 10.1016/s0022-3913(98)70027-7

[17] Sorensen JA, Engelman MJ. Ferrule design and fracture resistance of endodontically treated teeth. J Prosthet Dent; 63(5): 529-36, (1990).

DOI: 10.1016/0022-3913(90)90070-s

[18] Isidor F, Brondum K. Intermittent loading of teeth with tapered, individually cast or prefabricated, parallel-sided posts. Int J Prosthodont; 5(3): 257-61, (1992).

[19] Martinez-Insua A, da Silva L, Rilo B, Santana U. Comparison of the fracture resistances of pulpless teeth restored with a cast post and core or carbon-fiber post with a composite core. J Prosthet Dent; 80: 527-32, (1998).

DOI: 10.1016/s0022-3913(98)70027-7

[20] Sorensen JA, Engelman MJ. Ferrule design and fracture resistance of endodontically treated teeth. J Prosthet Dent; 63: 529-36, (1990).

DOI: 10.1016/0022-3913(90)90070-s

[21] Isidor F, Brondum K. Intermittent loading of teeth with tapered, individually cast or prefabricated, parallel-sided posts. Int J Prosthodont; 5: 257-61, (1992).

[22] Fernandes A, Sharat S, Coutinho I. Factors determining post selection-A literature review. J Prosthet Dent ; 90: 556-62, (2003).

[23] Miller AW. Post and core systems: Which one is best? J Prosthet Dent; 48: 27-38, (1982).

[24] Ping NAI, Cabornero AA. Fiber reinforced post and core adapted to a previous metal ceramic crown. J Prosthet Dent; 91: 191-4, (2004).

DOI: 10.1016/j.prosdent.2003.11.004

[25] Wataha JC. Biocompatibility of dental casting alloys. J Prosthet Dent; 83: 223-34, (2000).

[26] Sokol DJ. Effective use of current post and core concepts. J Prosthet Dent; 52: 237-9, (1984).

[27] Morgano SM. Clinical success of cast metal posts and cores. J Prosthet Dent; 69: 70: 11-6, (1999).

[28] Gonzalez AM, Borras VA, Font AF, Otaolaurruchi ES, Rueda L. Response of three types of cast posts and cores to static loading. Quintessence Int; 32: 552-60, (2001).

[29] Kishen A. Mechanisms and risk factors for fracture predilection in endodontically treated teeth. Endodontic Topics; 13: 57-83, (2006).

DOI: 10.1111/j.1601-1546.2006.00201.x

[30] Asmussen E, Peutzfeldt A, Sahafi A. Finite element analysis of stresses in endodontically treated, dowel-restored teeth. J Prosthet Dent; 94: 321-9, (2005).

DOI: 10.1016/j.prosdent.2005.07.003

[31] Sedgley CM, Messer HH. Are endodontically treated teeth more brittle? J Endod; 18: 332-5, (1992).

DOI: 10.1016/s0099-2399(06)80483-8

[32] Belli S, Erdemir A, Ozcopur M, Eskitascioglu G. The effect of fibre insertion on fracture resistance of root filled molar teeth with MOD preparations restored with composite. Int Endod J; 38: 73-80, (2005).

DOI: 10.1111/j.1365-2591.2004.00892.x

[33] Yaman SD, Alaçam T, Yaman Y. Analysis of Stress Distribution in a Maxillary Central Incisor Subjected to Various Post and Core Applications. J Endod; 2: 107-11, (2004).

DOI: 10.1016/s0099-2399(98)80087-3

[34] Lanza A, Aversa R, Rengo S, Apicella D, Apicella A. 3D FEA of cemented steel, glass and carbon posts in a maxillary incisor. Dent Mater; 21: 709-15, (2005).

DOI: 10.1016/j.dental.2004.09.010

[35] A. Pegoretti, L. Fambri, G. Zappini, M. Bianchetti. Finite element analysis of a glass fibre reinforced composite endodontic post", Biomaterials, Vol. 23, PP. 2667-2682, (2002).

DOI: 10.1016/s0142-9612(01)00407-0

[36] Maceri F, Martignoni M, Vairo G. Mechanical behaviour of endodontic restorations with multiple prefabricated posts: a finite-element approach. J Biomech; 40: 2386-2398, (2007).

DOI: 10.1016/j.jbiomech.2006.11.018

[37] Fu G, Deng F, Wang L, Ren A. The three-dimension finite element analysis of stress in posterior tooth residual root restored with post core crown. Dent Traumatol; 26: 64-69, (2010).

DOI: 10.1111/j.1600-9657.2009.00829.x

[38] Genovesea K, Lambertib L, Pappalettere C. Finite element analysis of a new customized composite post system endodontically treated teeth. J Biomech; 38: 2375-2389, (2005).

DOI: 10.1016/j.jbiomech.2004.10.009

[39] Robert G. Craig, Marcus L. Restorative Dental Materials. 10th Ed. Mosby, St. Louis, Missouri, USA, (1997).

[40] Toparli M. Stress analysis in a post-restored tooth utilizing the finite element method. J Oral Rehabil; 30: 470-6, (2003).

DOI: 10.1046/j.1365-2842.2003.01090.x

[41] G. He, M. Hagiwara. Bimodal structured Ti-base alloy with large elasticity and low Young"s modulus", Materials Science and Engineering C, Vol. 25 PP. 290 -295, (2005).

DOI: 10.1016/j.msec.2005.03.001

[42] Joshi S, Mukherjee A, Kheur M, Mehta A. Mechanical performance of endodontically treated teeth finite elements in analysis and design; 37(8): 587-601, (2001).

DOI: 10.1016/s0168-874x(00)00059-7

[43] Wasim M.K. Helal, Dong Yan Shi. Optimum Gradation Direction for a Functionally Graded Endodontic Prefabricated Parallel Post: A Finite Element Method. Journal of Biomimetics, Biomaterials and Biomedical Engineering Vol. 24 (2015) pp.56-69.

DOI: 10.4028/www.scientific.net/jbbbe.24.56

[44] Wasim M.K. Helal, Dong Yan Shi. Stress Distribution Surrounding Endodontic Prefabricated Parallel Post . Applied Mechanics and Materials Vols. 752-753 (2015) pp.39-43.

DOI: 10.4028/www.scientific.net/amm.752-753.39

[45] ANSYS User's Manual, Version 12. 1.
