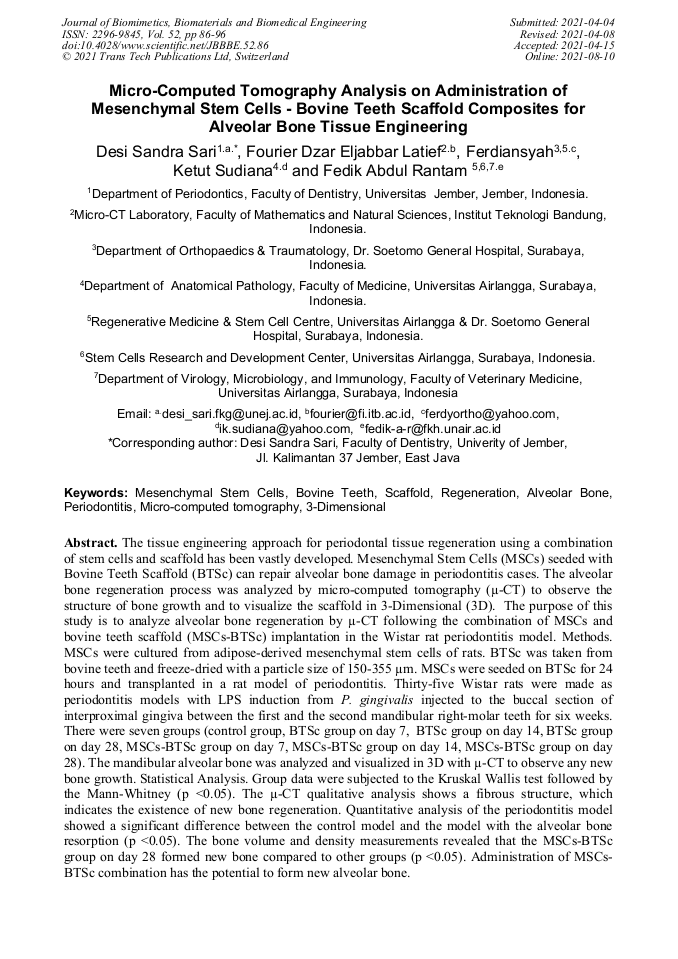

Micro-Computed Tomography Analysis on Administration of Mesenchymal Stem Cells - Bovine Teeth Scaffold Composites for Alveolar Bone Tissue Engineering

Abstract:

The tissue engineering approach for periodontal tissue regeneration using a combination of stem cells and scaffold has been vastly developed. Mesenchymal Stem Cells (MSCs) seeded with Bovine Teeth Scaffold (BTSc) can repair alveolar bone damage in periodontitis cases. The alveolar bone regeneration process was analyzed by micro-computed tomography (µ-CT) to observe the structure of bone growth and to visualize the scaffold in 3-Dimensional (3D). The purpose of this study is to analyze alveolar bone regeneration by µ-CT following the combination of MSCs and bovine teeth scaffold (MSCs-BTSc) implantation in the Wistar rat periodontitis model. Methods. MSCs were cultured from adipose-derived mesenchymal stem cells of rats. BTSc was taken from bovine teeth and freeze-dried with a particle size of 150-355 µm. MSCs were seeded on BTSc for 24 hours and transplanted in a rat model of periodontitis. Thirty-five Wistar rats were made as periodontitis models with LPS induction from P. gingivalis injected to the buccal section of interproximal gingiva between the first and the second mandibular right-molar teeth for six weeks. There were seven groups (control group, BTSc group on day 7, BTSc group on day 14, BTSc group on day 28, MSCs-BTSc group on day 7, MSCs-BTSc group on day 14, MSCs-BTSc group on day 28). The mandibular alveolar bone was analyzed and visualized in 3D with µ-CT to observe any new bone growth. Statistical Analysis. Group data were subjected to the Kruskal Wallis test followed by the Mann-Whitney (p <0.05). The µ-CT qualitative analysis shows a fibrous structure, which indicates the existence of new bone regeneration. Quantitative analysis of the periodontitis model showed a significant difference between the control model and the model with the alveolar bone resorption (p <0.05). The bone volume and density measurements revealed that the MSCs-BTSc group on day 28 formed new bone compared to other groups (p <0.05). Administration of MSCs-BTSc combination has the potential to form new alveolar bone.

• Periodical: Journal of Biomimetics, Biomaterials and Biomedical Engineering (Volume 52)
• Pages: 86-96
• DOI: https://doi.org/10.4028/www.scientific.net/JBBBE.52.86
• Online since: August 2021
• Authors: Desi Sandra Sari*, Fourier Dzar Eljabbar Latief, Ferdiansyah Ferdiansyah, Ketut Sudiana, Fedik Abdul Rantam
• Keywords: 3-Dimensional, Alveolar Bone, Bovine Teeth, Mesenchymal Stem Cells, Micro-Computed Tomography, Periodontitis, Regeneration, Scaffold

References

[1] Tonetti MS, Jepsen S, Jin L, et al. Impact of the global burden of periodontal diseases on health, nutrition, and wellbeing of mankind: A call for global action. J Clin Periodontol (2017) 44: 456–462.

DOI: 10.1111/jcpe.12732

[2] Shewale AH, Gattani DR, Bhatia N, et al. Prevalence of periodontal disease in the general population of India-A systematic review. J Clin Diagnostic Res (2016) 10: ZE04–ZE09.

[3] Graves DT, Li J, Cochran DL. Inflammation and uncoupling as mechanisms of periodontal bone loss. Crit Rev Oral Biol Med (2011) 90: 143–153.

DOI: 10.1177/0022034510385236

[4] Intini G, Katsuragi Y, Kirkwood KL, et al. Alveolar bone loss: mechanisms, potential therapeutic targets, and interventions. Adv Dent Res (2014) 26: 38–46.

DOI: 10.1177/0022034514529305

[5] Chahboun H, Arnau MM, Herrera D, et al. Bacterial profile of aggressive periodontitis in Morocco: a cross-sectional study. BMC Oral Health (2015) 15: 25.

DOI: 10.1186/s12903-015-0006-x

[6] Sun H, Yang HL. Calcium phosphate scaffolds combined with bone morphogenetic proteins or mesenchymal stem cells in bone tissue engineering. Chin Med J (Engl) (2015) 128: 1121–1127.

DOI: 10.4103/0366-6999.155121

[7] Abdel Meguid E, Ke Y, Ji J, et al. Stem cells applications in bone and tooth repair and regeneration: New insights, tools, and hopes. J Cell Physiol (2018) 233: 1825–1835.

DOI: 10.1002/jcp.25940

[8] Requicha JF, Viegas CA, Muñoz F, et al. A Tissue Engineering Approach for Periodontal Regeneration Based on a Biodegradable Double-Layer Scaffold and Adipose-Derived Stem Cells. Tissue Eng Part A (2014) 20: 2483–2492.

DOI: 10.1089/ten.tea.2013.0360

[9] Teruel; Dios J De, Alcolea A, Hernandez A, et al. Comparison of chemical composition of enamel and dentine in human , bovine , porcine and ovine teeth. Arch Oral Biol (2015) 60: 768–775.

DOI: 10.1016/j.archoralbio.2015.01.014

[10] Abou Neel EA, Chrzanowski W, Salih VM, et al. Tissue engineering in dentistry. J Dent (2014) 42: 915–928.

DOI: 10.1016/j.jdent.2014.05.008

[11] Yassen GH, Platt JA, Hara AT. Bovine teeth as substitute for human teeth in dental research : a review of literature. J Oral Sci (2011) 53: 273–282.

DOI: 10.2334/josnusd.53.273

[12] Sari DS, Setiawatie EM, Mahyudin F, et al. Cytotoxicity test and characteristics of demineralized dentin matrix scaffolds in adipose-derived mesenchymal stem cells of rats. Dent J (2018) 194: 194–199.

DOI: 10.20473/j.djmkg.v51.i4.p194-199

[13] Bartoš M, Suchý T, Tonar Z, et al. Micro-CT in tissue engineering scaffolds designed for bone regeneration: Principles and application. Ceram - Silikaty (2018) 62: 194–199.

DOI: 10.13168/cs.2018.0012

[14] Bishop ES, Mostafa S, Pakvasa M, et al. 3-D bioprinting technologies in tissue engineering and regenerative medicine: Current and future trends. Genes Dis (2017) 4: 185–195.

DOI: 10.1016/j.gendis.2017.10.002

[15] Cengiz IF, Oliveira JM, Reis RL. Micro-CT - A digital 3D microstructural voyage into scaffolds: A systematic review of the reported methods and results. Biomater Res (2018) 22: 1–11.

DOI: 10.1186/s40824-018-0136-8

[16] Latief, , D E, Sari DS, Fitri L. Applications of Micro-CT scanning in medicine and dentistry : Microstructural analyses of a Wistar Rat mandible and a urinary tract stone Applications of Micro-CT scanning in medicine and dentistry : Microstructural analyses of a Wistar Rat mandible and a. J Phys Conf Ser (2017) 884: 0–11.

DOI: 10.1088/1742-6596/884/1/012042

[17] Um I-W, Kim Y-K, Mitsugi M. Demineralized dentin matrix scaffolds for alveolar bone engineering. J Indian Prosthodont Soc (2017) 17: 120–127.

DOI: 10.4103/jips.jips_62_17

[18] Sari DS, Maduratna E, Ferdiansyah, et al. Osteogenic Differentiation and Biocompatibility of Bovine Teeth Scaffold with Rat Adipose-derived Mesenchymal Stem Cells. Eur J Dent (2019) 13: 206–212.

DOI: 10.1055/s-0039-1694305

[19] Xing H, Taguchi Y, Komasa S, et al. Effect of Porphyromonas gingivalis Lipopolysaccharide on Bone Marrow Mesenchymal Stem Cell Osteogenesis on a Titanium Nanosurface. J Periodontol (2015) 86: 448–455.

DOI: 10.1902/jop.2014.140386

[20] Struillou X, Boutigny H, Soueidan A, et al. Experimental animal models in periodontology: a review. Open Dent J (2010) 4: 37–47.

DOI: 10.2174/1874210601004010037

[21] Tayman MA, Kamburoğlu K, Küçük Ö, et al. Comparison of linear and volumetric measurements obtained from periodontal defects by using cone beam-CT and micro-CT: an in vitro study. Clin Oral Investig (2019) 23: 2235–2244.

DOI: 10.1007/s00784-018-2665-x

[22] Radetic T. Fundamentals of scanning electron microscopy and energy dispersive X-ray analysis in SEM and TEM. NFMC Spring School on Electron Microscopy (2011):1-52.

[23] Furfaro F, Ang ESM, Lareu RR, et al. A histological and micro-CT investigation in to the effect of NGF and EGF on the periodontal, alveolar bone, root and pulpal healing of replanted molars in a rat model - a pilot study. Prog Orthod (2014) 15: 1–12.

DOI: 10.1186/2196-1042-15-2

[24] Park HJ, Min KD, Lee MC, et al. Fabrication of 3D porous SF/β-TCP hybrid scaffolds for bone tissue reconstruction. J Biomed Mater Res - Part A (2016) 104: 1779–1787.

DOI: 10.1002/jbm.a.35711

[25] Park JY, Chung JH, Lee JS, et al. Comparisons of the diagnostic accuracies of optical coherence tomography, micro-computed tomography, and histology in periodontal disease: An ex vivo study. J Periodontal Implant Sci (2017) 47: 30–40.

DOI: 10.5051/jpis.2017.47.1.30

[26] Boerckel JD, Mason DE, McDermott AM, et al. Microcomputed tomography: Approaches and applications in bioengineering. Stem Cell Res Ther (2014) 5: 1–12.

DOI: 10.1186/scrt534

[27] Michel J, Penna M, Kochen J, et al. Recent Advances in Hydroxyapatite Scaffolds Containing Mesenchymal Stem Cells. Stem Cells Int (2015) 2015: 1–13.

DOI: 10.1155/2015/305217

[28] Kim Y, Lee J, Um I, et al. Tooth-derived bone graft material. J Korean Assoc Oral Maxillofac Surg (2013) 39: 103–111.

DOI: 10.5125/jkaoms.2013.39.3.103

[29] Koga T, Minamizato T, Kawai Y, et al. Bone Regeneration Using Dentin Matrix Depends on the Degree of Demineralization and Particle Size. PLOS one (2016) 1–12.

DOI: 10.1371/journal.pone.0147235

[30] Thitiset T, Damrongsakkul S, Bunaprasert T, et al. Development of Collagen/Demineralized Bone Powder Scaffolds and Periosteum-Derived Cells for Bone Tissue Engineering Application. Int J Mol Sci (2013) 14: 2056–(2071).

DOI: 10.3390/ijms14012056

[31] Supronowicz P, Gill E, Trujillo A, et al. Human Adipose-Derived Side Population Stem Cells Cultured on Demineralized Bone Matrix for Bone Tissue Engineering. Tissue Eng Part A (2011) 17: 789–798.

DOI: 10.1089/ten.tea.2010.0357

[32] Yamanaka K, Yamamoto K, Sakai Y, et al. seeding of mesenchymal stem cells into inner part of interconnected porous biodegradable scaffold by a new method with a filter paper. Dent Mater J (2015) 34: 78–85.

DOI: 10.4012/dmj.2013-330

[33] Oliveira GS De, Miziara MN, Silva ER, et al. Enhanced bone formation during healing process of tooth sockets fi lled with demineralized human dentine matrix. Aust Dent J (2013) 58: 326–332.

DOI: 10.1111/adj.12088

[34] Wahyukundari MA, Sari DS, Pujiastuti P, et al. Virulence Comparison Between Aggregatibacter Actinomycetemcomitans and Porphyromonas Gingivalis : Micro-Computed Tomography ( μ -CT ) and Inflamatory Cytokines Analysis. 11th International Dentistry Scientific Meeting (2017): 312-321.

DOI: 10.2991/idsm-17.2018.42

[35] Wu S, Wang J, Zou L, et al. A three-dimensional hydroxyapatite/polyacrylonitrile composite scaffold designed for bone tissue engineering. RSC Adv (2018) 8: 1730–1736.

DOI: 10.1039/c7ra12449j

[36] Turnbull G, Clarke J, Picard F, et al. 3D bioactive composite scaffolds for bone tissue engineering. Bioactive Materials (2018) 3: 278–314.

DOI: 10.1016/j.bioactmat.2017.10.001

[37] Prins HJ, Braat AK, Gawlitta D, et al. In vitro induction of alkaline phosphatase levels predicts in vivo bone forming capacity of human bone marrow stromal cells. Stem Cell Res (2014) 12: 428–440.

DOI: 10.1016/j.scr.2013.12.001

[38] Tollemar V, Collier ZJ, Mohammed MK, et al. Stem cells, growth factors and scaffolds in craniofacial regenerative medicine. Genes Dis (2015) xx: 1–16.

DOI: 10.1016/j.gendis.2015.09.004

[39] Nampo T, Watahiki J, Enomoto A, et al. A New Method for Alveolar Bone Repair. J Periodontol (2010) 81: 1264–1272.

[40] Duan X, Lin Z, Lin X, et al. Study of platelet-rich fibrin combined with rat periodontal ligament stem cells in periodontal tissue regeneration. J Cell Mol Med (2018) 22: 1047–1055.

[41] Akita D, Kano K, Saito-Tamura Y, et al. Use of rat mature adipocyte-derived dedifferentiated fat cells as a cell source for periodontal tissue regeneration. Front Physiol (2016) 7: 1–12.

DOI: 10.3389/fphys.2016.00050
