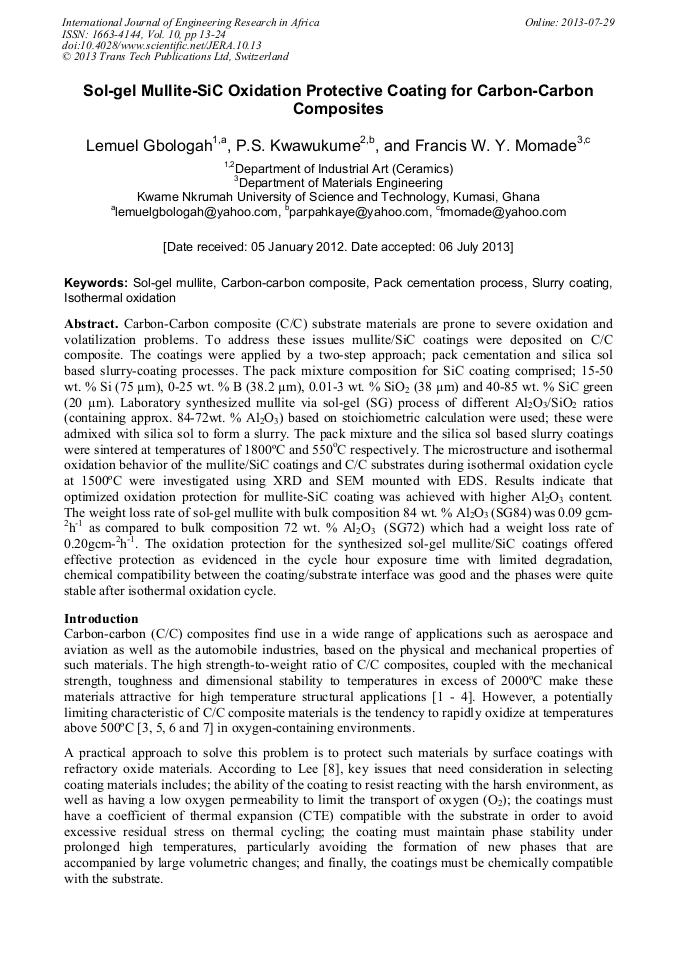

Sol-Gel Mullite-SiC Oxidation Protective Coating for Carbon-Carbon Composites

Abstract:

Carbon-Carbon composite (C/C) substrate materials are prone to severe oxidation and volatilization problems. To address these issues mullite/SiC coatings were deposited on C/C composite. The coatings were applied by a two-step approach; pack cementation and silica sol based slurry-coating processes. The pack mixture composition for SiC coating comprised; 15-50 wt. % Si (75 μm), 0-25 wt. % B (38.2 μm), 0.01-3 wt. % SiO₂ (38 μm) and 40-85 wt. % SiC green (20 μm). Laboratory synthesized mullite via sol-gel (SG) process of different Al₂O₃/SiO₂ ratios (containing approx. 84-72wt. % Al₂O₃) based on stoichiometric calculation were used; these were admixed with silica sol to form a slurry. The pack mixture and the silica sol based slurry coatings were sintered at temperatures of 1800oC and 550°C respectively. The microstructure and isothermal oxidation behavior of the mullite/SiC coatings and C/C substrates during isothermal oxidation cycle at 1500oC were investigated using XRD and SEM mounted with EDS. Results indicate that optimized oxidation protection for mullite-SiC coating was achieved with higher Al₂O₃ content. The weight loss rate of sol-gel mullite with bulk composition 84 wt. % Al₂O₃ (SG84) was 0.09 gcm-²h^-1 as compared to bulk composition 72 wt. % Al₂O₃ (SG72) which had a weight loss rate of 0.20gcm-²h^-1. The oxidation protection for the synthesized sol-gel mullite/SiC coatings offered effective protection as evidenced in the cycle hour exposure time with limited degradation, chemical compatibility between the coating/substrate interface was good and the phases were quite stable after isothermal oxidation cycle.

• Periodical: International Journal of Engineering Research in Africa (Volume 10)
• Pages: 13-24
• DOI: https://doi.org/10.4028/www.scientific.net/JERA.10.13
• Online since: July 2013
• Authors: Lemuel Gbologah, P.S. Kwawukume, Francis W.Y. Momade
• Keywords: Carbon-Carbon Composite, Isothermal Oxidation, Pack Cementation Process, Slurry Coating, Sol-Gel Mullite

References

[1] R.D. Veltri, F. S. Galasso, Deposition of improved SiC coatings on carbon-base materials, U.S. Patent 4,544,412. (1984)

[2] O. Paccaud, A. Derr, Silicon carbide coating for carbon materials produced by a pack-cementation process, Le Journal de Physique IV 5(C5) (1995) 5-5.

DOI: 10.1051/jphyscol:1995514

[3] E. Barry Bines, The protection of carbon-carbon against oxidation at elevated temperatures, in: C. R. Thomas (Eds.), Essentials of Carbon-Carbon Composites, The Royal society of chemistry, 1993, pp.204-227.

[4] Chao Ma, Hejun Li, Heng Wu, Qiangang Fu, Can Sun, Xiaoshang Shi, Yulei Zhang, Zhengzhong Zhang, Jun Tao, Zhihai Han, Mullite oxidation resistant coating for SiC-coated carbon/carbon composite by supersonic plasma spraying, Journal of Materials Science and Technology, 29(1) (2013) 29-33.

DOI: 10.1016/j.jmst.2012.11.001

[5] H. Schneider, S. Komarneni, Mullite coatings, in: H. Schneider, S. Komarneni (Eds.), Mullite, Willey-VCH Verlag GmbH, Co. KGaA, Weinheim, 2005, pp.349-376.

DOI: 10.1002/3527607358

[6] Feng Tao, Li He-Jun, Fu Qian-Gang, Zhang Ye-Lei, Shi Xiao-Hong, Microstructure and anti-oxidation properties of multi-composition ceramic coatings for carbon/carbon composites, Ceramics International, , 37(1) (2011) 79-84.

DOI: 10.1016/j.ceramint.2010.08.027

[7] A. S. Ahmed, R. D. Rawlings, Ellacot, Microstructural and compositional characterization of pyrocarbon interlayer in SiC coated low density carbon/carbon composites, Journal of the European Ceramic Society 31 (2011) 189-197.

DOI: 10.1016/j.jeurceramsoc.2010.09.004

[8] K. Lee, Current status of environmental barrier coatings for Si-based ceramics, Surface and Coatings Technology, 133 (2000) 1-7.

DOI: 10.1016/s0257-8972(00)00889-6

[9] R. Krishnamurthy, B. W. Sheldon, Stability of mullite protective coatings for silicon – based ceramics, J. Am. Ceram. Soc. 88 (5) (2005) 1099-1107.

DOI: 10.1111/j.1551-2916.2005.00169.x

[10] P. D. Sarkisov, N. V. Popovich, L. A. Orlova, E. Anan'eva Yu, Barrier coatings for type C/SiC ceramic-matrix composites (Review). Glass and Ceramics, 65 (2008) 9-10.

DOI: 10.1007/s10717-009-9081-2

[11] P. Hou, S. Basu, V. Sarin, Structure and high-temperature stability of compositionally graded CVD mullite coatings, International Journal of Refractory Metals and Hard Materials, 19 (4-6) (2001) 467-477.

DOI: 10.1016/s0263-4368(01)00048-8

[12] K. N. Lee, D.S. Fox, N.P. Bansal, Rare earth silicate environmental barrier coatings for SiC/SiC composites and Si3N4 ceramics, Journal of the European Ceramic Society, 25 (10) (2005) 1705-1715.

DOI: 10.1016/j.jeurceramsoc.2004.12.013

[13] Jiapeng Xu, Daniel Erickson, Sudesna Roy and Vinod Sarin, Protective chemical vapor deposition (CVD) of mullite coatings on single-crystal silicon substrates, Journal of Minerals, Metals and Materials Society 65(4) (2013) 567-573.

DOI: 10.1007/s11837-013-0566-7

[14] S. Latzel, R. VaBen, D. Stover, New environmental barrier coating system on carbon-fiber reinforced silicon carbide composites, Journal of Thermal Spray Technology, 14 (2) (2005) 268.

DOI: 10.1361/10599630523854

[15] J. A. Pask, H. Schneider, The Al2O3-SiO2 Phase Diagram. Weinheim: Willey-VCH Verlag GmbH & Co. KGaA, 2005.

[16] H. Fritze, J. Jojic, T. Witke, C. Ruscher, S. Weber, S. Scherrer, R. Weib, B. Chultrich, G. Borchardt, Mullite base oxidation protection for SiC-C/C composites in air at temperatures up to 1900K, Journal of European Ceramic Society, 18 (1998) 2351-2364.

DOI: 10.1016/s0955-2219(98)00242-8
