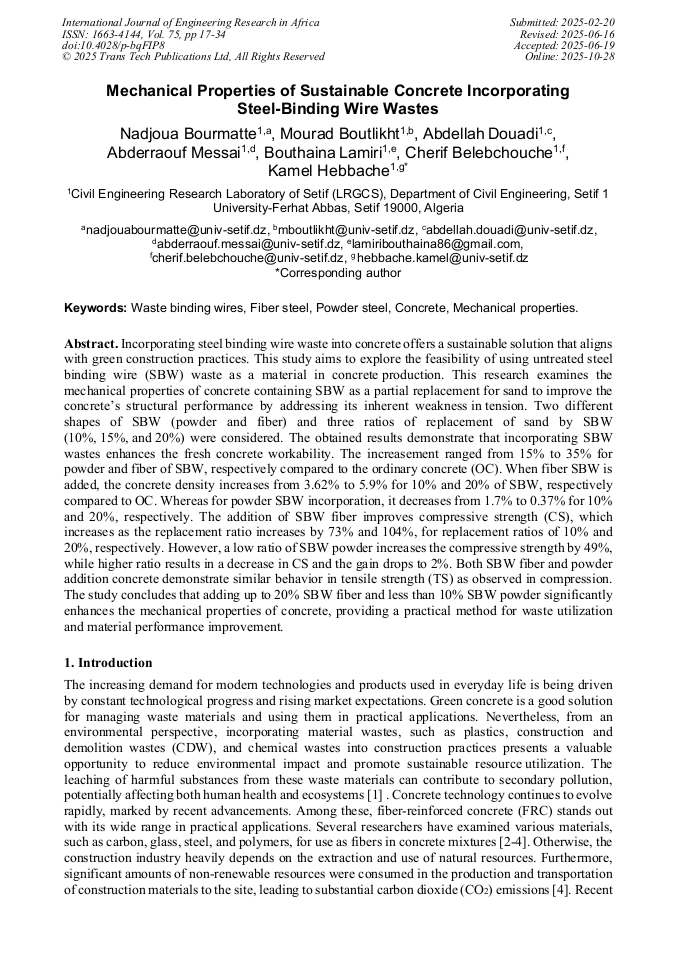

Mechanical Properties of Sustainable Concrete Incorporating Steel-Binding Wire Wastes

Abstract:

Incorporating steel binding wire waste into concrete offers a sustainable solution that aligns with green construction practices. This study aims to explore the feasibility of using untreated steel binding wire (SBW) waste as a material in concrete production. This research examines the mechanical properties of concrete containing SBW as a partial replacement for sand to improve the concrete’s structural performance by addressing its inherent weakness in tension. Two different shapes of SBW (powder and fiber) and three ratios of replacement of sand by SBW (10%, 15%, and 20%) were considered. The obtained results demonstrate that incorporating SBW wastes enhances the fresh concrete workability. The increasement ranged from 15% to 35% for powder and fiber of SBW, respectively compared to the ordinary concrete (OC). When fiber SBW is added, the concrete density increases from 3.62% to 5.9% for 10% and 20% of SBW, respectively compared to OC. Whereas for powder SBW incorporation, it decreases from 1.7% to 0.37% for 10% and 20%, respectively. The addition of SBW fiber improves compressive strength (CS), which increases as the replacement ratio increases by 73% and 104%, for replacement ratios of 10% and 20%, respectively. However, a low ratio of SBW powder increases the compressive strength by 49%, while higher ratio results in a decrease in CS and the gain drops to 2%. Both SBW fiber and powder addition concrete demonstrate similar behavior in tensile strength (TS) as observed in compression. The study concludes that adding up to 20% SBW fiber and less than 10% SBW powder significantly enhances the mechanical properties of concrete, providing a practical method for waste utilization and material performance improvement.

• Periodical: International Journal of Engineering Research in Africa (Volume 75)
• Pages: 17-34
• DOI: https://doi.org/10.4028/p-bqFIP8
• Online since: October 2025
• Authors: Nadjoua Bourmatte, Mourad Boutlikht, Abdellah Douadi, Abderraouf Messai, Bouthaina Lamiri, Cherif Belebchouche, Kamel Hebbache*
• Keywords: Concrete, Fiber Steel, Mechanical Properties, Powder Steel, Waste Bending Wires

References

[1] M. Osial, A. Pregowska, S. Wilczewski, W. Urbańska, M. Giersig, Waste management for green concrete solutions: a concise critical review, Recycling 7(3) (2022) 37.

DOI: 10.3390/recycling7030037

[2] A. Umar, A. Muoka, A.G. Amuda, A. Sanusi, A. Dayyabu, A.D. Mambo, Mechanical Influence of Steel Binding Wires as Fiber Reinforcement in Concrete, 2021 1st International Conference on Multidisciplinary Engineering and Applied Science (ICMEAS), IEEE, 2021, pp.1-5.

DOI: 10.1109/icmeas52683.2021.9692379

[3] M. Nodehi, S.E. Nodehi, Ultra high performance concrete (UHPC): Reactive powder concrete, slurry infiltrated fiber concrete and superabsorbent polymer concrete, Innovative Infrastructure Solutions 7(1) (2022) 39.

DOI: 10.1007/s41062-021-00641-7

[4] L. Chen, Z. Chen, Z. Xie, L. Wei, J. Hua, L. Huang, P.-S. Yap, Recent developments on natural fiber concrete: A review of properties, sustainability, applications, barriers, and opportunities, Developments in the Built Environment 16 (2023) 100255.

DOI: 10.1016/j.dibe.2023.100255

[5] N.M.S. Hasan, N.M.N. Shaurdho, M.H.R. Sobuz, M.M. Meraz, M.A. Basit, S.C. Paul, M.J. Miah, Rheological, mechanical, and micro-structural property assessment of eco-friendly concrete reinforced with waste areca nut husk fiber, Sustainability 15(19) (2023) 14131.

DOI: 10.3390/su151914131

[6] G. Sua-Iam, N. Makul, Utilization of limestone powder to improve the properties of self-compacting concrete incorporating high volumes of untreated rice husk ash as fine aggregate, Construction and Building Materials 38 (2013) 455-464.

DOI: 10.1016/j.conbuildmat.2012.08.016

[7] M. Boutlikht, K. Hebbache, A. Douadi, S. Tabchouche, Assessment of the PVC Waste Addition Effect on the Concrete Mechanical Performance, Journal of Composite & Advanced Materials/Revue des Composites et des Matériaux Avancés 33(2) (2023).

DOI: 10.18280/rcma.330203

[8] Ö.B. Ceran, B. Şimşek, T. Uygunoğlu, O.N. Şara, PVC concrete composites: comparative study with other polymer concrete in terms of mechanical, thermal and electrical properties, Journal of Material Cycles and Waste Management 21 (2019) 818-828.

DOI: 10.1007/s10163-019-00846-0

[9] Y. Wang, J. Xiao, J. Zhang, Z. Duan, Mechanical behavior of concrete prepared with waste marble powder, Sustainability 14(7) (2022) 4170.

DOI: 10.3390/su14074170

[10] M.A. Moghadam, R.A. Izadifard, Effects of steel and glass fibers on mechanical and durability properties of concrete exposed to high temperatures, Fire Safety Journal 113 (2020) 102978.

DOI: 10.1016/j.firesaf.2020.102978

[11] V.B. Chandra, K.B. Chari, V.R. Rao, The comprehensive analytical investigation on blended cement concrete beams with glass fibers under flexural loading, Materials Today: Proceedings 33 (2020) 587-592.

DOI: 10.1016/j.matpr.2020.05.498

[12] C. Aksoylu, Y.O. Özkılıç, M. Hadzima-Nyarko, E. Işık, M.H. Arslan, Investigation on improvement in shear performance of reinforced-concrete beams produced with recycled steel wires from waste tires, Sustainability 14(20) (2022) 13360.

DOI: 10.3390/su142013360

[13] S.A. Yıldızel, Y.O. Özkılıç, A. Bahrami, C. Aksoylu, B. Başaran, A. Hakamy, M.H. Arslan, Experimental investigation and analytical prediction of flexural behaviour of reinforced concrete beams with steel fibres extracted from waste tyres, Case Studies in Construction Materials 19 (2023) e02227.

DOI: 10.1016/j.cscm.2023.e02227

[14] M. Doğruyol, E. Ayhan, A. Karaşin, Effect of waste steel fiber use on concrete behavior at high temperature, Case Studies in Construction Materials 20 (2024) e03051.

DOI: 10.1016/j.cscm.2024.e03051

[15] K. Aghaee, M.A. Yazdi, Waste steel wires modified structural lightweight concrete, Materials Research 17 (2014) 958-966.

DOI: 10.1590/1516-1439.257413

[16] T. Sun, X. Wang, N. Maimaitituersun, S. Dong, L. Li, B. Han, Synergistic effects of steel fibers and steel wires on uniaxial tensile mechanical and self-sensing properties of UHPC, Construction and Building Materials 416 (2024) 134991.

DOI: 10.1016/j.conbuildmat.2024.134991

[17] M.H. Naser, F.H. Naser, M.K. Dhahir, Tensile behavior of fiber reinforced cement mortar using wastes of electrical connections wires and galvanized binding wires, Construction and Building Materials 264 (2020) 120244.

DOI: 10.1016/j.conbuildmat.2020.120244

[18] W. Mansour, S. Fayed, Flexural rigidity and ductility of RC beams reinforced with steel and recycled plastic fibers, Steel and Composite Structures, an International Journal 41(3) (2021) 317-334.

[19] Y.-F. Li, H.-F. Wang, J.-Y. Syu, G.K. Ramanathan, Y.-K. Tsai, M.H. Lok, Mechanical properties of aramid/carbon hybrid fiber-reinforced concrete, Materials 14(19) (2021) 5881.

DOI: 10.3390/ma14195881

[20] K. Liew, A. Akbar, The recent progress of recycled steel fiber reinforced concrete, Construction and Building Materials 232 (2020) 117232.

DOI: 10.1016/j.conbuildmat.2019.117232

[21] J. Ahmad, R.A. González-Lezcano, A. Majdi, N. Ben Kahla, A.F. Deifalla, M.A. El-Shorbagy, Glass fibers reinforced concrete: Overview on mechanical, durability and microstructure analysis, Materials 15(15) (2022) 5111.

DOI: 10.3390/ma15155111

[22] A. Conforti, F. Minelli, A. Tinini, G.A. Plizzari, Influence of polypropylene fibre reinforcement and width-to-effective depth ratio in wide-shallow beams, Engineering Structures 88 (2015) 12-21.

DOI: 10.1016/j.engstruct.2015.01.037

[23] D. Soulioti, N. Barkoula, A. Paipetis, T. Matikas, Effects of fibre geometry and volume fraction on the flexural behaviour of steel‐fibre reinforced concrete, Strain 47 (2011) e535-e541.

DOI: 10.1111/j.1475-1305.2009.00652.x

[24] L. Yang, X. Lin, R.J. Gravina, Evaluation of dynamic increase factor models for steel fibre reinforced concrete, Construction and building materials 190 (2018) 632-644.

DOI: 10.1016/j.conbuildmat.2018.09.085

[25] G. James, U. Samuel, Application of steel binding wires to control shear in concrete production, Int. J. Civ. Eng. Technol. 9(11) (2018) 2901-2917.

[26] A. Standard, Building code requirements for structural concrete (ACI 318-11), American Concrete Institute, 2011.

[27] N.E. 933-1, Essais pour déterminer les caractéristiques géométriques des granulats–Partie 1: détermination de la granularité–Analyse granulométrique par tamisage, AFNOR Paris, France, 2012.

[28] E. SIST, 196-2 (2013) Method of testing cement-Part 2: Chemical analysis of cement, European committee for standardization (CEN) and Slovenian institute for standardization (SIST).

[29] I. 20290-5:2023, Aggregates for concrete — Test methods for mechanical and physical properties — Part 5: Determination of particle size distribution by sieving method, iTeh Standards, 2023.

DOI: 10.3403/30408123u

[30] G. Dreux, J. Festa, Nouveau guide du béton et de ses constitutants, Eyrolles1998.

[31] N.E.-. AFNOR, Testing fresh concrete - Part 8 : self-compacting concrete - Slump-flow test., 2019.

DOI: 10.3403/30210219u

[32] AFNOR, NF EN 196-1 Methods of testing cement - Part 1: Determination of strength. Paris, Franch., 2016.

[33] P. Dutron, European (EN) and World (ISO) Standards—Comparison with ASTM Standards, Cement, Concrete, and Aggregates 15(2) (1993) 145-148.

DOI: 10.1520/cca10601j

[34] N. EN, 206/CN Béton-Spécification, performance, production et conformité-Complément national à la norme NF EN 206, AFNOR, La Plaine St-Denis (2014).

[35] S. Li, S. Cheng, L. Mo, M. Deng, Effects of steel slag powder and expansive agent on the properties of ultra-high performance concrete (UHPC): based on a case study, Materials 13(3) (2020) 683.

DOI: 10.3390/ma13030683

[36] A. Shishegaran, F. Daneshpajoh, H. Taghavizade, S. Mirvalad, Developing conductive concrete containing wire rope and steel powder wastes for route deicing, Construction and Building Materials 232 (2020) 117184.

DOI: 10.1016/j.conbuildmat.2019.117184

[37] J. Han, M. Zhao, J. Chen, X. Lan, Effects of steel fiber length and coarse aggregate maximum size on mechanical properties of steel fiber reinforced concrete, Construction and Building Materials 209 (2019) 577-591.

DOI: 10.1016/j.conbuildmat.2019.03.086

[38] A. Shukla, N. Gupta, K. Kishore, Experimental investigation on the effect of steel fiber embedded in marble dust based concrete, Materials Today: Proceedings 26 (2020) 2938-2945.

DOI: 10.1016/j.matpr.2020.02.607

[39] G. Lavanya, J. Jegan, Evaluation of relationship between split tensile strength and compressive strength for geopolymer concrete of varying grades and molarity, Int. J. Appl. Eng. Res 10(15) (2015) 35523-35527.
