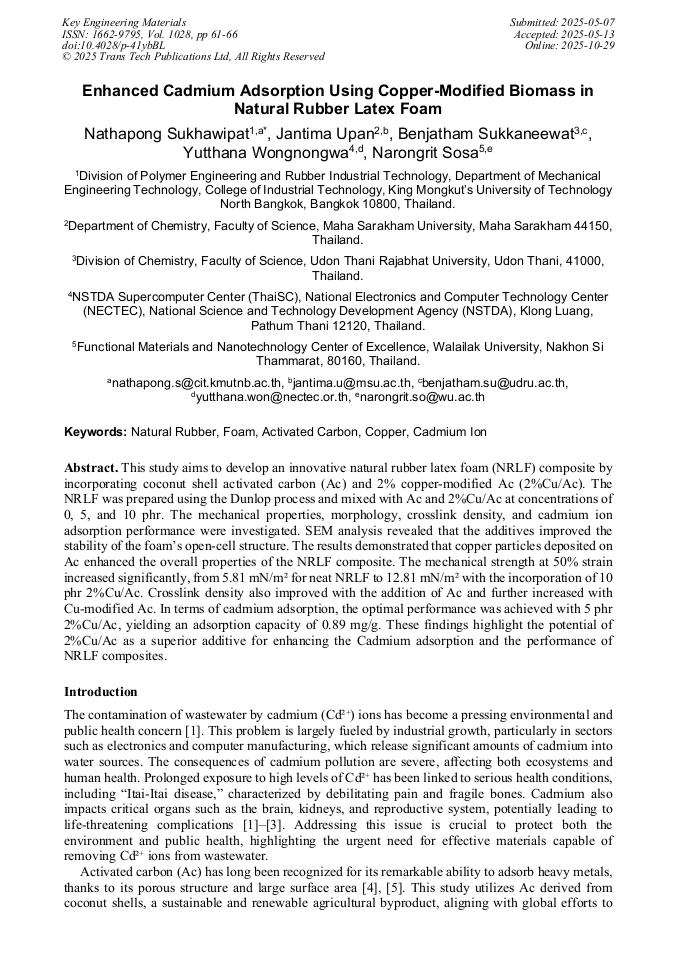

Enhanced Cadmium Adsorption Using Copper-Modified Biomass in Natural Rubber Latex Foam

Abstract:

This study aims to develop an innovative natural rubber latex foam (NRLF) composite by incorporating coconut shell activated carbon (Ac) and 2% copper-modified Ac (2%Cu/Ac). The NRLF was prepared using the Dunlop process and mixed with Ac and 2%Cu/Ac at concentrations of 0, 5, and 10 phr. The mechanical properties, morphology, crosslink density, and cadmium ion adsorption performance were investigated. SEM analysis revealed that the additives improved the stability of the foam’s open-cell structure. The results demonstrated that copper particles deposited on Ac enhanced the overall properties of the NRLF composite. The mechanical strength at 50% strain increased significantly, from 5.81 mN/m² for neat NRLF to 12.81 mN/m² with the incorporation of 10 phr 2%Cu/Ac. Crosslink density also improved with the addition of Ac and further increased with Cu-modified Ac. In terms of cadmium adsorption, the optimal performance was achieved with 5 phr 2%Cu/Ac, yielding an adsorption capacity of 0.89 mg/g. These findings highlight the potential of 2%Cu/Ac as a superior additive for enhancing the Cadmium adsorption and the performance of NRLF composites.

• Periodical: Key Engineering Materials (Volume 1028)
• Pages: 61-66
• DOI: https://doi.org/10.4028/p-41ybBL
• Online since: October 2025
• Authors: Nathapong Sukhawipat*, Jantima Upan, Benjatham Sukkaneewat, Yutthana Wongnongwa, Narongrit Sosa
• Keywords: Activated Carbon, Cadmium Ion, Copper, Foam, Natural Rubber

References

[1] M. Rafati-Rahimzadeh, M. Rafati-Rahimzadeh, S. Kazemi, and A. Moghadamnia, "Cadmium toxicity and treatment: An update TT -," babol-caspjim, vol. 8, no. 3, p.135–145, Jun. (2017)

DOI: 10.1177/09603271231192361

[2] G. Genchi, M. S. Sinicropi, G. Lauria, A. Carocci, and A. Catalano, "The Effects of Cadmium Toxicity," International Journal of Environmental Research and Public Health, vol. 17, no. 11. 2020.

DOI: 10.3390/ijerph17113782

[3] M. Rafati Rahimzadeh, M. Rafati Rahimzadeh, S. Kazemi, and A.-A. Moghadamnia, "Cadmium toxicity and treatment: An update.," Caspian journal of internal medicine, vol. 8, no. 3, p.135–145, 2017.

DOI: 10.1177/09603271231192361

[4] A. Ghahremani, M. Manteghian, and H. Kazemzadeh, "Removing lead from aqueous solution by activated carbon nanoparticle impregnated on lightweight expanded clay aggregate," Journal of Environmental Chemical Engineering, vol. 9, no. 1, p.104478, 2021, doi:

DOI: 10.1016/j.jece.2020.104478

[5] T. Yingshataporn-A-Nan et al., "Effects of Copper-Modified Activated Carbon on Natural Rubber Composite for Dielectric Materials," Solid State Phenomena, vol. 366, p.29–36, Dec. 2024.

DOI: 10.4028/p-mfi7uv

[6] D. Dou et al., "Adsorption of copper (II) and cadmium (II) ions by in situ doped nano-calcium carbonate high-intensity chitin hydrogels," Journal of Hazardous Materials, vol. 423, p.127137, 2022.

DOI: 10.1016/j.jhazmat.2021.127137

[7] H. Sun, N. Xia, Z. Liu, F. Kong, and S. Wang, "Removal of copper and cadmium ions from alkaline solutions using chitosan-tannin functional paper materials as adsorbent," Chemosphere, vol. 236, p.124370, 2019.

DOI: 10.1016/j.chemosphere.2019.124370

[8] T. Yingshataporn-A-Nan et al., "A Novel Elastomeric Dielectric Materials: Natural Rubber/ Copper-Modified Activated Carbon," Materials Science Forum, vol. 1129, p.11–17, 2024.

DOI: 10.4028/p-id3hmc

[9] N. Sukhawipat, L. Saengdee, N. Sosa, P. Khemthong, J. Wittayakun, and P. Pasetto, "Preparation and Characterization of a Novel Additive for Elastomeric Polymer from Oligoisoprene Modified Mesoporous Silica," Materials Science Forum, vol. 1100, p.103–108, 2023.

DOI: 10.4028/p-co700w

[10] B. Sukkaneewat and S. Utara, "Ultrasonic-assisted Dunlop method for natural rubber latex foam production: Effects of irradiation time on morphology and physico-mechanical properties of the foam," Ultrasonics Sonochemistry, vol. 82, p.105873, 2022.

DOI: 10.1016/j.ultsonch.2021.105873

[11] C. Hiranobe et al., "Cross-Linked Density Determination of Natural Rubber Compounds by Different Analytical Techniques," Materials Research, vol. 24, Jul. 2021.
