Effects of High-Pressure Coolant Supply on Tool Wear and Axial Hole Deviation in through Hole Drilling ASTM 304 Using Twist Deep Hole Drill

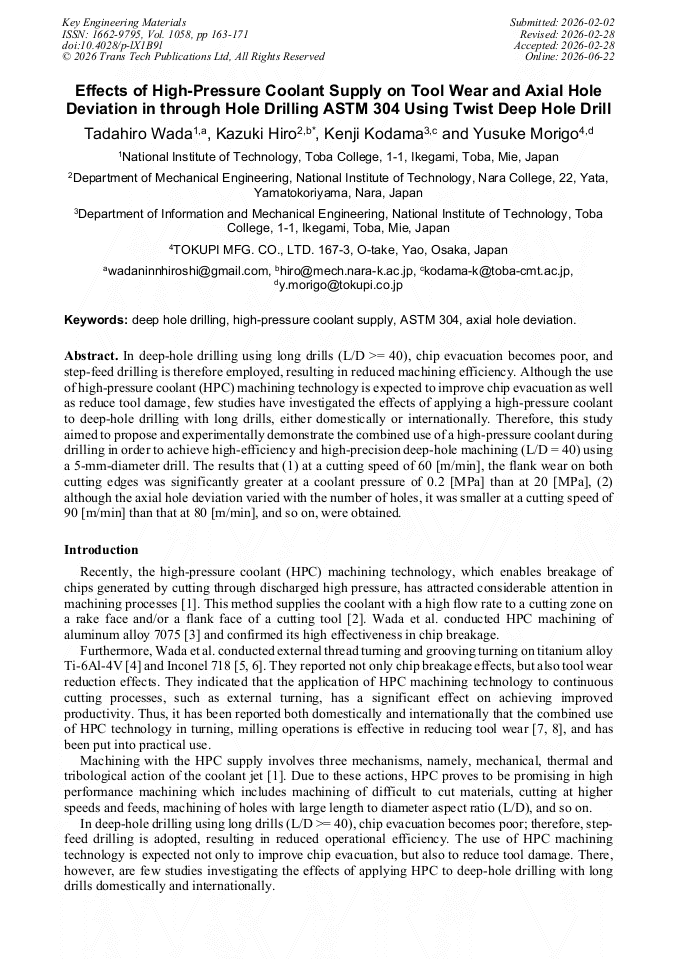

Article Preview

Abstract:

In deep-hole drilling using long drills (L/D >= 40), chip evacuation becomes poor, and step-feed drilling is therefore employed, resulting in reduced machining efficiency. Although the use of high-pressure coolant (HPC) machining technology is expected to improve chip evacuation as well as reduce tool damage, few studies have investigated the effects of applying a high-pressure coolant to deep-hole drilling with long drills, either domestically or internationally. Therefore, this study aimed to propose and experimentally demonstrate the combined use of a high-pressure coolant during drilling in order to achieve high-efficiency and high-precision deep-hole machining (L/D = 40) using a 5-mm-diameter drill. The results that (1) at a cutting speed of 60 [m/min], the flank wear on both cutting edges was significantly greater at a coolant pressure of 0.2 [MPa] than at 20 [MPa], (2) although the axial hole deviation varied with the number of holes, it was smaller at a cutting speed of 90 [m/min] than that at 80 [m/min], and so on, were obtained.

You might also be interested in these eBooks
Composite Materials, Biomedical Materials, Additive Manufacturing, Processing and Forming Technologies View Preview

Info:

Periodical:

Key Engineering Materials (Volume 1058)

Pages:

163-171

DOI:

https://doi.org/10.4028/p-lX1B9l

Citation:

Cite this paper

Online since:

June 2026

Authors:

Tadahiro Wada, Kazuki Hiro*, Kenji Kodama, Yusuke Morigo

Keywords:

ASTM 304, Axial Hole Deviation, Deep Hole Drilling, High-Pressure Coolant Supply

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2026 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] H. Shete, M. Sohani, and A. Todkar, Machining in high pressure coolant environment - a strategy to improve machining performance: a review: Int. J. Manuf. Technol. Manag., Vol. 33, (2022), pp.468-492.

DOI: 10.1504/ijmtm.2019.104551

Google Scholar

[2] J Mao, H Usuki, C Morigo, S Yukinari, A Study on Prototype of End Mill for Ultra-High Pressure Coolant Supplying from Flank Surface Side Using Fluid Simulation, Adv. Sci. Technol., Vol. 139, (2024), pp.3-10.

DOI: 10.4028/p-japxh7

Google Scholar

[3] T. Wada, T. Yamaguchi and Y. Morigo, Chip Breakability in Turning of 7075 Aluminium Alloy with a High-Pressure Coolant Supply, J. Phys.: Conf. Ser., Vol. 1510, 012009 (2020).

DOI: 10.1088/1742-6596/1510/1/012009

Google Scholar

[4] T. Wada, Cutting Performance in Threading Turning and Grooving Turning of Ti-6Al-4V Alloy with a High-Pressure Coolant Supply, Proc. 2019 IEEE 10th Int. Conf. Mech. Aerosp. Eng. (ICMAE), (2019).

DOI: 10.1109/ICMAE.2019.8880914

Google Scholar

[5] T. Wada, Cutting Performance in Grooving Turning of Super Heat-Resistant Alloy Inconel 718 with a High-Pressure Coolant Supply, Int. J. Mech. Prod. Eng., Vol. 7(11), (2019), pp.42-46.

Google Scholar

[6] T. Wada and S. Enoki, Tool Wear of WC-Co-Based Cemented Carbide in External Thread Turning of Super Heat-resistant Alloy Inconel 718 with High-Pressure Coolant Supply, Proc. 12th Int. Conf. Mech. Aerosp. Eng. (ICMAE), (2021), pp.145-149.

DOI: 10.1109/icmae52228.2021.9522396

Google Scholar

[7] T. Wada, Tool Wear of Cubic Boron Nitride in Intermittent Cutting of Hardened Steel ASTM D2 with High-Pressure Coolant Supply, Appl. Mech. Mater., Vol. 907, (2022), pp.19-25.

DOI: 10.4028/p-5o2e36

Google Scholar

[8] T. Wada, K. Hiro, Y. Morigo, K. Kodama, and S. Enoki, Tool Wear in Shoulder Milling AISI 304 Stainless Steel with High Pressure Coolant Supply, Int. J. Emerg. Technol. Adv. Eng., Vol. 15(5), (2025), pp.1-3.

DOI: 10.46338/ijetae0525_01

Google Scholar
