High-Speed Impact and Fracture Performance of Sustainable Banana Fibre-Graphite Epoxy Composites for Protective Structural Applications

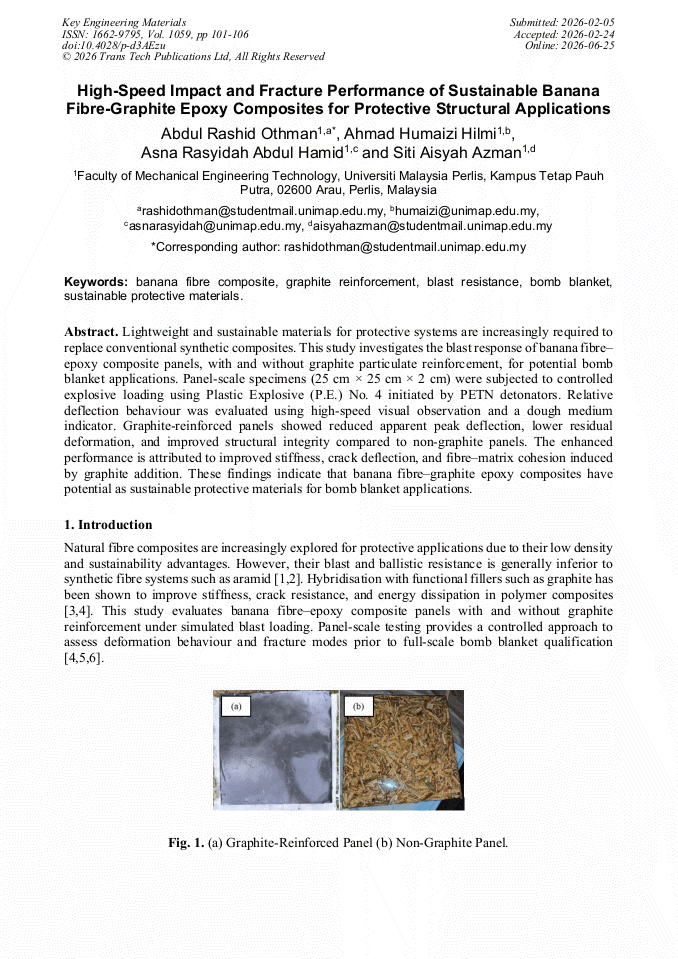

Article Preview

Abstract:

Lightweight and sustainable materials for protective systems are increasingly required to replace conventional synthetic composites. This study investigates the blast response of banana fibre–epoxy composite panels, with and without graphite particulate reinforcement, for potential bomb blanket applications. Panel-scale specimens (25 cm × 25 cm × 2 cm) were subjected to controlled explosive loading using Plastic Explosive (P.E.) No. 4 initiated by PETN detonators. Relative deflection behaviour was evaluated using high-speed visual observation and a dough medium indicator. Graphite-reinforced panels showed reduced apparent peak deflection, lower residual deformation, and improved structural integrity compared to non-graphite panels. The enhanced performance is attributed to improved stiffness, crack deflection, and fibre–matrix cohesion induced by graphite addition. These findings indicate that banana fibre–graphite epoxy composites have potential as sustainable protective materials for bomb blanket applications.

You might also be interested in these eBooks
Materials for Opto- and Microelectronics, Bio-Based Materials, Processing and Forming Technologies View Preview

Info:

Periodical:

Key Engineering Materials (Volume 1059)

Pages:

101-106

DOI:

https://doi.org/10.4028/p-d3AEzu

Citation:

Cite this paper

Online since:

June 2026

Authors:

Abdul Rashid Othman*, Ahmad Humaizi Hilmi, Asna Rasyidah Abdul Hamid, Siti Aisyah Azman

Keywords:

Banana Fibre Composite, Blast Resistance, Bomb Blanket, Graphite Reinforcement, Sustainable Protective Materials

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2026 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] Wambua, P., et al., The response of natural fibre composites to ballistic impact by fragment simulating projectiles. Composite Structures, 2007. 77(2): pp.232-240.

DOI: 10.1016/j.compstruct.2005.07.006

Google Scholar

[2] Bharadiya, P.S., R.G. Puri, and S. Mishra, Enriched mechanical properties of Graphite nanoplatelets filled epoxy resin-plant fiber nanocomposites. Polymer Bulletin, 2024. 81(5): pp.4275-4289.

DOI: 10.1007/s00289-023-04898-z

Google Scholar

[3] Sengupta, R., et al., A review on the mechanical and electrical properties of graphite and modified graphite reinforced polymer composites. Progress in polymer science, 2011. 36(5): pp.638-670.

DOI: 10.1016/j.progpolymsci.2010.11.003

Google Scholar

[4] Coufal, V., J. Křesťan, and M. Vnouček. Ballistic Resistance of ARMOX Advance according to NATO standard AEP-55 STANAG 4569. in IOP Conference Series: Materials Science and Engineering. 2022. IOP Publishing.

DOI: 10.1088/1757-899x/1243/1/012002

Google Scholar

[5] Khan, T., et al., The effects of stacking sequence on the tensile and flexural properties of kenaf/jute fibre hybrid composites. Journal of Natural Fibers, 2021. 18(3): pp.452-463.

DOI: 10.1080/15440478.2019.1629148

Google Scholar

[6] Balaji, A., et al., Study on mechanical, thermal and morphological properties of banana fiber-reinforced epoxy composites. Journal of Bio-and Tribo-Corrosion, 2020. 6(2): p.60.

DOI: 10.1007/s40735-020-00357-8

Google Scholar

[7] Nurick, G. and D. Lumpp, Deflection and tearing of clamped stiffened circular plates subjected to uniform impulsive blast loads. WIT Transactions on The Built Environment, 2025. 25.

Google Scholar

[8] Huo, X., et al., Experimental study on low-velocity impact responses and residual properties of composite sandwiches with metallic foam core. Composite Structures, 2019. 223: p.110835.

DOI: 10.1016/j.compstruct.2019.04.007

Google Scholar

[9] Zhao, Z., et al., Effect of fiber architecture on the impact resistance of composite panels subjected to metallic projectile. Composite Structures, 2021. 273: p.114273.

DOI: 10.1016/j.compstruct.2021.114273

Google Scholar

[10] Claus, J., et al., Effect of matrix and fibre type on the impact resistance of woven composites. Composites Part B: Engineering, 2020. 183: p.107736.

DOI: 10.1016/j.compositesb.2019.107736

Google Scholar

[11] Azar, A.B. and A. Sari, Blast resistance of CFRP composite strengthened masonry arch bridge under close-range explosion. Advances in Bridge Engineering, 2024. 5(1): p.26.

DOI: 10.1186/s43251-024-00139-z

Google Scholar

[12] Zhang, B. and S. Feng, A numerical study of blast resistance of carbon fiber reinforced aluminum alloy laminates. Applied Sciences, 2023. 13(8): p.4906.

DOI: 10.3390/app13084906

Google Scholar

[13] Kipchumba, C.J., Tensile and Flexural Strength Properties of Surface-modified Banana Fibre Epoxy Composites. 2022, University of Nairobi.

Google Scholar

[14] Nasrin, R., Electrical and mechanical properties of banana fiber reinforced polyester composites. 2013.

Google Scholar

[15] Mohammed, M., et al., A Review on the Advancement of Renewable Natural Fiber Hybrid Composites: Prospects, Challenges, and Industrial Applications. Journal of Renewable Materials, 2024. 12(7).

Google Scholar

[16] Suriani, M., et al., Critical review of natural fiber reinforced hybrid composites: Processing, properties, applications and cost. Polymers, 2021. 13(20): p.3514.

Google Scholar

[17] Ye, H., et al., Dynamic response characteristics and damage rule of graphite ore rock under different strain rates. Scientific Reports, 2023. 13(1): p.2151.

DOI: 10.1038/s41598-023-28947-9

Google Scholar

[18] Wang, J., et al., Mechanical properties of graphene-reinforced reactive powder concrete at different strain rates. Journal of Materials Science, 2020. 55(8): pp.3369-3387.

DOI: 10.1007/s10853-019-04246-5

Google Scholar

[19] Zhou, Y., et al., A printed, recyclable, ultra-strong, and ultra-tough graphite structural material. Materials Today, 2019. 30: pp.17-25.

DOI: 10.1016/j.mattod.2019.03.016

Google Scholar

[20] Boumaaza, M., A. Belaadi, and M. Bourchak, The effect of alkaline treatment on mechanical performance of natural fibers-reinforced plaster: Optimization using RSM. Journal of Natural fibers, 2021. 18(12): pp.2220-2240.

DOI: 10.1080/15440478.2020.1724236

Google Scholar

[21] Pan, B., et al., Two-dimensional digital image correlation for in-plane displacement and strain measurement: a review. Measurement science and technology, 2009. 20(6): p.062001.

DOI: 10.1088/0957-0233/20/6/062001

Google Scholar

[22] Cullis, I., Blast waves and how they interact with structures. BMJ Military Health, 2001. 147(1): pp.16-26.

Google Scholar

[23] Anas, S., M. Alam, and M. Umair, Air-blast and ground shockwave parameters, shallow underground blasting, on the ground and buried shallow underground blast-resistant shelters: a review. International Journal of Protective Structures, 2022. 13(1): pp.99-139.

DOI: 10.1177/20414196211048910

Google Scholar

[24] Kangda, M.Z., Blast protection techniques: a review. Archives of Computational Methods in Engineering, 2022. 29(5): pp.3509-3529.

DOI: 10.1007/s11831-021-09704-5

Google Scholar

[25] Liu, P., et al., A design model of multi-layer modified aramid fabrics against fragment simulating projectiles and full metal jacketed bullets. International Journal of Impact Engineering, 2024. 191: p.104989.

DOI: 10.1016/j.ijimpeng.2024.104989

Google Scholar
