Study on the Properties of Water Bamboo Shoot Shell as Bio-Based Flame Retardant and its Epoxy Composite Application

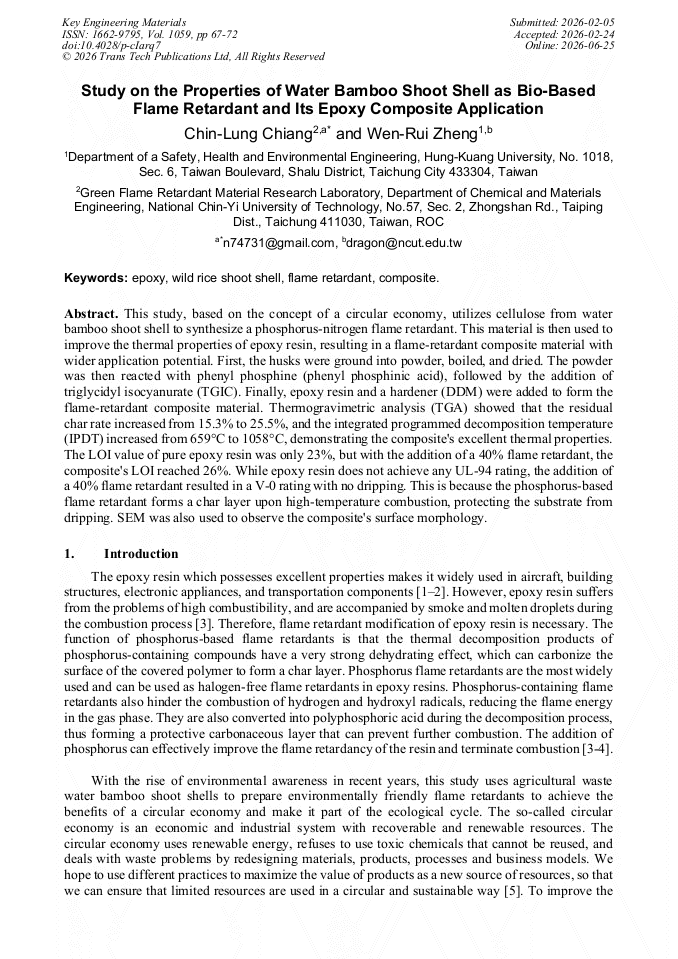

Article Preview

Abstract:

This study, based on the concept of a circular economy, utilizes cellulose from water bamboo shoot shell to synthesize a phosphorus-nitrogen flame retardant. This material is then used to improve the thermal properties of epoxy resin, resulting in a flame-retardant composite material with wider application potential. First, the husks were ground into powder, boiled, and dried. The powder was then reacted with phenyl phosphine (phenyl phosphinic acid), followed by the addition of triglycidyl isocyanurate (TGIC). Finally, epoxy resin and a hardener (DDM) were added to form the flame-retardant composite material. Thermogravimetric analysis (TGA) showed that the residual char rate increased from 15.3% to 25.5%, and the integrated programmed decomposition temperature (IPDT) increased from 659°C to 1058°C, demonstrating the composite's excellent thermal properties. The LOI value of pure epoxy resin was only 23%, but with the addition of a 40% flame retardant, the composite's LOI reached 26%. While epoxy resin does not achieve any UL-94 rating, the addition of a 40% flame retardant resulted in a V-0 rating with no dripping. This is because the phosphorus-based flame retardant forms a char layer upon high-temperature combustion, protecting the substrate from dripping. SEM was also used to observe the composite's surface morphology.

You might also be interested in these eBooks
Materials for Opto- and Microelectronics, Bio-Based Materials, Processing and Forming Technologies View Preview

Info:

Periodical:

Key Engineering Materials (Volume 1059)

Pages:

67-72

DOI:

https://doi.org/10.4028/p-cIarq7

Citation:

Cite this paper

Online since:

June 2026

Authors:

Chin Lung Chiang*, Wen Rui Zheng

Keywords:

Composite, Epoxy, Flame Retardant, Wild Rice Shoot Shell

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2026 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] G. Tang, Y. Tao, Q. Wu, H. Shen, J. Sun, D. Deng, X. Liu, Polym. Bull. 81,6131–6148(2024).

Google Scholar

[2] A. Javaid, S. Hashmi, Fire Technol. 58, 1493–1507(2022).

Google Scholar

[3] X. Shi, F. Shi, C. Luo, C. Zhang, L. Shang, Materials Today Chemistry, 46, 102755 (2025).

Google Scholar

[4] I.Gunderen, O. Aslanturk, G. Sagdic, E. Çakmakçı, T. Demirel, M.E. Üreyen, U.S. Gunay, H. Durmaz , V. Kumbaraci, Progress in Organic Coatings, 207, 109396 (2025).

DOI: 10.1016/j.porgcoat.2025.109396

Google Scholar

[5] Y. Lv, H. Li, Z.B. Shao, Z. Jiang, Polymer, 320, 128087 (2025).

Google Scholar

[6] Y.F., Shih, Mater. Sci. Eng. A, 445–446, 289-295 (2007).

Google Scholar

[7] C.F. Kuan, W. J. Chen, Y.L. Li, C. H. Chen, H. C. Kuan, C. L. Chiang, Journal of Physics and Chemistry of Solids, 71, 539-543 (2010).

Google Scholar

[8] S. E. Lee, E. Jeong, M. Y.Lee, M. K. Lee, Y.S. Lee, Polymer. , Volume 33, 73-79 (2016).

Google Scholar

[9] M. Yu, J. Yao, Y. Chen, Z. Gao, W. Xie, L. Fang, M. Ren, J. Sun, Reactive and Functional Polymers, 216, 106407(2025).

DOI: 10.1016/j.reactfunctpolym.2025.106407

Google Scholar

[10] H. Nabipour, S. Rohani, Journal of Environmental Chemical Engineering, 13, 116932(2025).

Google Scholar

[11] Y. Cui, Y. Jiao, G. Zhang, Z. Huo, Jun Sun b, H. Qu, J. Xu, Polymer Degradation and Stability 234, 111207 (2025).

Google Scholar

[12] J.S. Yeo. O.Y. Kim. S.H. Hwang, Journal of Industrial and Engineering Chemistry, 45, 301-306 (2017).

Google Scholar
