The Effects of β-Si₃N₄ Whisker Content and Orientation on R-Curve Behaviors of Si₃N₄ Ceramics

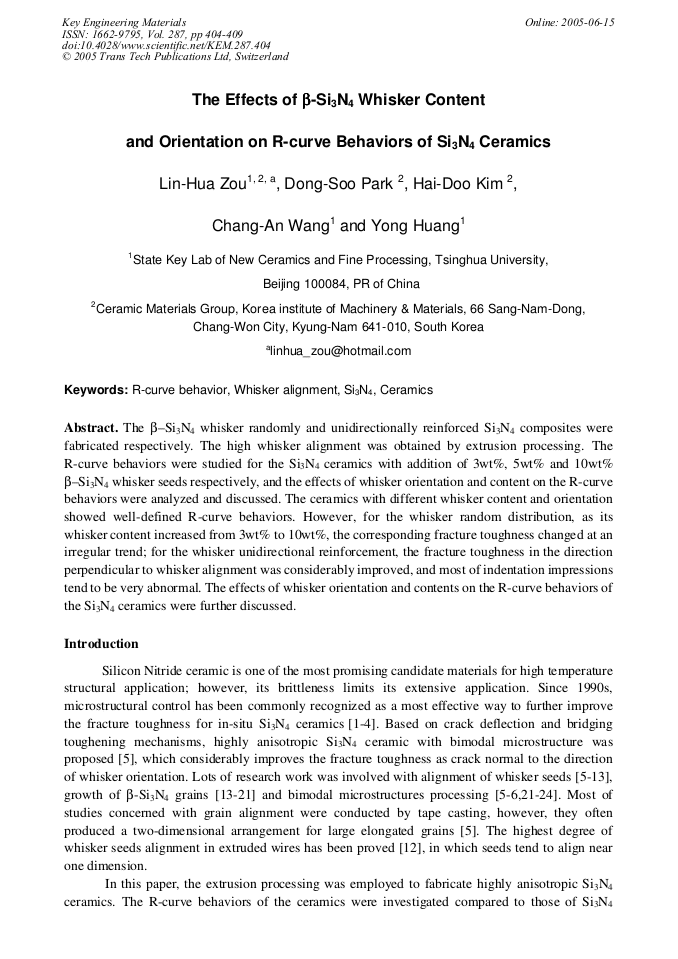

Article Preview

Abstract:

The b–Si3N4 whisker randomly and unidirectionally reinforced Si3N4 composites were fabricated respectively. The high whisker alignment was obtained by extrusion processing. The R-curve behaviors were studied for the Si3N4 ceramics with addition of 3wt%, 5wt% and 10wt% b–Si3N4 whisker seeds respectively, and the effects of whisker orientation and content on the R-curve behaviors were analyzed and discussed. The ceramics with different whisker content and orientation showed well-defined R-curve behaviors. However, for the whisker random distribution, as its whisker content increased from 3wt% to 10wt%, the corresponding fracture toughness changed at an irregular trend; for the whisker unidirectional reinforcement, the fracture toughness in the direction perpendicular to whisker alignment was considerably improved, and most of indentation impressions tend to be very abnormal. The effects of whisker orientation and contents on the R-curve behaviors of the Si3N4 ceramics were further discussed.

You might also be interested in these eBooks

Advanced Si-Based Ceramics and Composites

Info:

Periodical:

Key Engineering Materials (Volume 287)

Pages:

404-409

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.287.404

Citation:

Cite this paper

Online since:

June 2005

Authors:

Lin-Hua Zou, Dong Soo Park, Hai Doo Kim, Chang An Wang, Yong Huang

Keywords:

Ceramic, R-Curve Behaviour, Whisker Alignment

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2005 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

[1] P. F. Becher: J. Am. Ceram. Soc., Vol. 74 (1991), 255-69.

[2] P. F. Becher, E. Y. Sun, K. P. Plucknett, K. B. Alexander, C. -H. Hsueh, H. -T. Lin, S. B. Waters, et al. Part 1: J. Am. Ceram. Soc., Vol. 81 (1998), 2821-30.

[3] E. Y. Sun, P. F. Becher, K. P. Plucknett, C. -H. Hsueh, K. B. Alexander, S. B. Waters, K. Hirao, and M. E. Brito, Part 2: J. Am. Ceram. Soc., Vol. 81 (1998), 2831-40.

[4] P. F. Becher, S.L. Hwang, and C.H. Hsueh: MRS Bulletin, Vol. 20 (1995), 23-27.

[5] K. Hirao, M. Ohashi, M. E. Brito, and S. Kanzaki: J. Am. Ceram. Soc., Vol. 78 (1995), 1687-90.

[6] T. Ohji, K. Hiro, and S. Kanzaki: J. Am. Ceram. Soc., Vol. 78 (1995), 3125-28.

[7] K. Hirao, K. Watari, M. E. Brito, et al: J. Am. Ceram. Soc., Vol. 79 (1996), 2485-88.

[8] M.X. Wu and G.L. Messing: J. Am. Ceram. Soc., Vol. 77 (1994), 2586-92.

[9] D. S. Park, T. W. Roh, B. D. Han, H. D. Kim, C. Park: J. Eur. Ceram. Soc., Vol. 20 (2000), 2673-2677.

[10] D. S. Park and C. W. Kim: J. Am. Ceram. Soc., Vol. 83 (2000), 663-65.

[11] Y. Goto and A. Tsuge: J. Am. Ceram. Soc., Vol. 76 (1993), 1420-24.

[12] C. A. Wang, Y. Huang, and Z. P. Xie: J. Am. Ceram. Soc., Vol. 84 (2001), 161-64.

[13] D. Muscat, M. D. Pugh, and Robing A. L. Drew: J. Am Ceram. Soc., Vol. 75 (1992), 2713-18.

[14] M. Kramer, M. J. Hoffmann, and G. Petzow: J. Am. Ceram. Soc., Vol. 76 (1993), 2778-84.

[15] M. Kramer, M. J. Hoffmann and G. Petzow: Acta Metall. Mater., Vol. 41 (1993), 2939-2947.

[16] M. Mitomo, M. Tsutsumi, et al: J. Am. Ceram. Soc., Vol. 73 (1990), 2441-45.

[17] K. Hirao, T. Nagaoka, et al: J. Am. Ceram. Soc., Vol. 77 (1994) 1857-62.

[18] H. Emoto and M. Mitomo: J. Eur. Ceram. Soc., Vol. 17(1997), 797-804.

[19] P. Sajgalik, J. Dusza, and M. J. Hoffmann: J. Am. Ceram. Soc., Vol. 78 (1995), 2619-24.

[20] W. Dressler, H. J. Kleebe, M. J. Hoffmann, et al: J. Eur. Ceram. Soc., Vol. 16 (1996), 3-14.

[21] M. Mitomo, S. Uenosono: J. Am. Ceram. Soc., Vol. 75 (1992), 103-108.

[22] H.D. Kim, B.D. Han, D.S. Park, B.T. Lee, and P. F. Becher: J. Am. Ceram. Soc., Vol. 85 (2002), 245-52.

[23] M. Mitomo: Key Eng. Mater., Vol. 161-163(1999), 53-58.

[24] Y. Goto and G. Thomas: J. Mater. Sci., Vol. 30 (1995), 2194-2200.

[25] L. H. Zou, Y. Huang, D. S. Park, B. U. Cho, H. D. Kim, B. D. Han: Ceramic International, In Press (Elsevier Reference: CERI 1934).

[26] J. C. Newman, Jr., and I. S. Raju: An Empirical Stress-Intensity Factor Equation for the Surface Crack, Eng. Fract. Mech. Vol. 15 (1981), 185-92.

[27] N. Kondo, E. Sato, T. Ohji, F. Wakai: Materials Science and Engineering A244 (1998) 161-167.

[28] N. Kondo, F. Wakai: Journal of Materials Science Letters 14(1995) 1369-1371.
