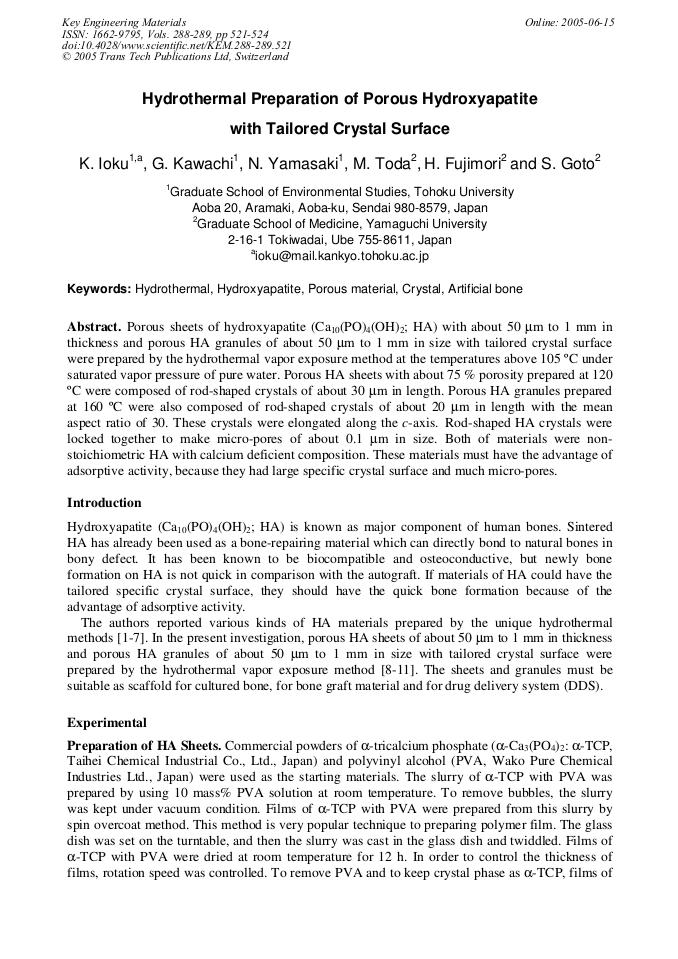

Hydrothermal Preparation of Porous Hydroxyapatite with Tailored Crystal Surface

Abstract:

Porous sheets of hydroxyapatite (Ca10(PO)4(OH)2; HA) with about 50 µm to 1 mm in thickness and porous HA granules of about 50 µm to 1 mm in size with tailored crystal surface were prepared by the hydrothermal vapor exposure method at the temperatures above 105 °C under saturated vapor pressure of pure water. Porous HA sheets with about 75 % porosity prepared at 120 °C were composed of rod-shaped crystals of about 30 µm in length. Porous HA granules prepared at 160 °C were also composed of rod-shaped crystals of about 20 µm in length with the mean aspect ratio of 30. These crystals were elongated along the c-axis. Rod-shaped HA crystals were locked together to make micro-pores of about 0.1 µm in size. Both of materials were nonstoichiometric HA with calcium deficient composition. These materials must have the advantage of adsorptive activity, because they had large specific crystal surface and much micro-pores.

• Periodical: Key Engineering Materials (Volumes 288-289)
• Pages: 521-524
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.288-289.521
• Online since: June 2005
• Authors: Alin Iuga, Giichiro Kawachi, Nakamichi Yamasaki, M. Toda, Hirotaka Fujimori, Seishi Goto
• Keywords: Artificial Bone, Crystal, Hydrothermal, Hydroxyapatite (HAP), Porous Material

References

[1] K. Ioku, M. Yoshimura and S. Somiya: Nippon Kagaku Kaishi (J. Chem. Soc. Japan) No. 9 (1988), p.1565.

[2] K. Ioku, M. Yoshimura and S. Somiya: Bioceramics Vol. 1 (Ishiyaku EuroAmerica, Tokyo and St. Louis 1989), p.62.

[3] K. Ioku, M. Yoshimura and S. Somiya: Biomaterials Vol. 11 (1990), p.57.

[4] M. Yoshimura, H. Suda, K. Okamoto and K. Ioku: J. Mater. Sci. Vol. 29 (1994), p.3399.

[5] K. Ioku, K. Yamamoto, K. Yanagisawa and N. Yamasaki: Phosphorus Res. Bull. Vol. 4 (1994), p.65.

[6] K. Ioku, A. Oshita, H. Fujimori, S. Goto and M. Yoshimura: Trans. Mater. Res. Soc. Japan Vol. 26 (2001), p.1243.

[7] K. Ioku, S. Yamauchi, H. Fujimori, S. Goto and M. Yoshimura: Solid State Ionics, Vol. 151 (2002), p.147.

[8] K. Ioku, S. Nishimura, Y. Eguchi and S. Goto: Rev. High Pressure Sci. Technol., Vol. 7 (1998), p.1398.

[9] K. Ioku, M. Fukuhara, H. Fujimori and S. Goto: Korean J. Ceram. Vol. 5 (1999), p.115.

[10] K. Ioku, H. Misumi, H. Fujimori, S. Goto and M. Yoshimura: Proc. 5th Int. Conf. SolvoThermal Reactions (Rutgers, The State Univ. of NJ, USA 2002), p.233.

[11] K. Ioku, M. Toda, H. Fujimori, S. Goto and M. Yoshimura: Key Engineering Materials Vols. 254-256 (Bioceramics Vol. 16) (2004), p.19.

DOI: 10.4028/www.scientific.net/kem.254-256.19

[12] H. Monma and T. Kanazawa, J. Ceram. Soc. Japan, Vol. 84 (1976), p.209.

[13] K. Ioku, T. Murakami, Y. Ikuma, and M. Yoshimura: J. Ceram. Soc. Japan Int. Edition Vol. 100 (1992), p.1015.

[14] W. Paul and C. P. Sharma: J. Mater. Sci.: Mater. Med. Vol. 10 (1999), p.383.

[15] V. S. Komlev and S. M. Barinov: J. Mater. Sci.: Mater. Med. Vol. 13 (2002), p.295.
