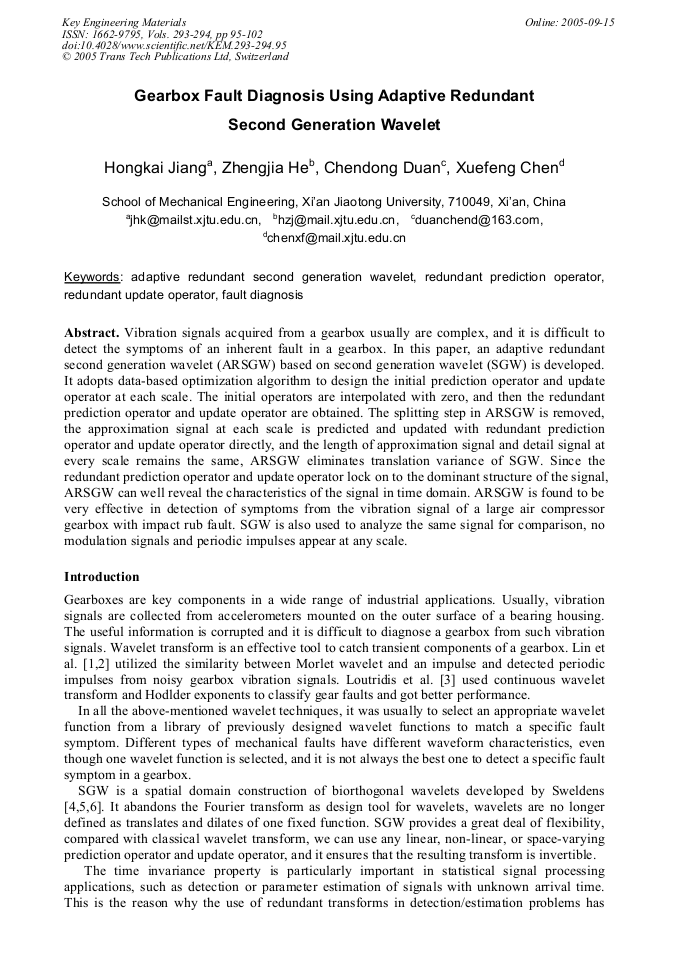

Gearbox Fault Diagnosis Using Adaptive Redundant Second Generation Wavelet

Abstract:

Vibration signals acquired from a gearbox usually are complex, and it is difficult to detect the symptoms of an inherent fault in a gearbox. In this paper, an adaptive redundant second generation wavelet (ARSGW) based on second generation wavelet (SGW) is developed. It adopts data-based optimization algorithm to design the initial prediction operator and update operator at each scale. The initial operators are interpolated with zero, and then the redundant prediction operator and update operator are obtained. The splitting step in ARSGW is removed, the approximation signal at each scale is predicted and updated with redundant prediction operator and update operator directly, and the length of approximation signal and detail signal at every scale remains the same, ARSGW eliminates translation variance of SGW. Since the redundant prediction operator and update operator lock on to the dominant structure of the signal, ARSGW can well reveal the characteristics of the signal in time domain. ARSGW is found to be very effective in detection of symptoms from the vibration signal of a large air compressor gearbox with impact rub fault. SGW is also used to analyze the same signal for comparison, no modulation signals and periodic impulses appear at any scale.

• Periodical: Key Engineering Materials (Volumes 293-294)
• Pages: 95-102
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.293-294.95
• Online since: September 2005
• Authors: Hongkai Jiang, Zheng Jia He, Chendong Duan, Xue Feng Chen
• Keywords: Adaptive Redundant Second Generation Wavelet, Fault Diagnosis, Redundant Prediction Operator, Redundant Update Operator

References

[1] J. Lin and L. Qu: Journal of Sound and Vibration Vol. 234 (2000), p.135.

[2] J. Lin and M.J. Zuo: Mechanical System and Signal Processing Vol. 17 (2003), p.1259.

[3] S. Loutridis and A. Trochidis: Mechanical System and Signal Processing Vol. 18 (2004), p.1009.

[4] W. Sweldens: App. Comput. Harmonic Analysis Vol. 3 (1996), p.186.

[5] W. Sweldens: SIAM J. Math. Anal Vol. 29 (1997), p.511.

[6] I. Daubechies and W. Sweldens: J. Fourier Anal. Appl Vol. 4 (1998), p.245.

[7] J. -C. Pesquet, H. Krim and H. Carfantan: IEEE Transactions on Signal Processing Vol. 44 (1996), p. (1964).

DOI: 10.1109/78.533717

[8] Q. Pan, L. Zhang, G. Dai and H. Zhang: IEEE Transactions on Signal Processing Vol. 47 (1999), p.3401.

[9] R. Claypoole, G. Davis and W. Sweldens: IEEE Transactions on Image Processing Vol. 12 (2003), p.1449.

[10] R. Claypoole: Adaptive Wavelet Transforms via lifting (Thesis: Doctor of Philosophy, Electrical and Computer Engineering, Rice University, Houston, Texas, USA 1999).

[11] Z.J. He, Y.Y. Zi, Q.F. Meng et al: Fault diagnosis principle of non-stationary signal and applications to mechanical equipment (Higher Education Press, China 2001).
