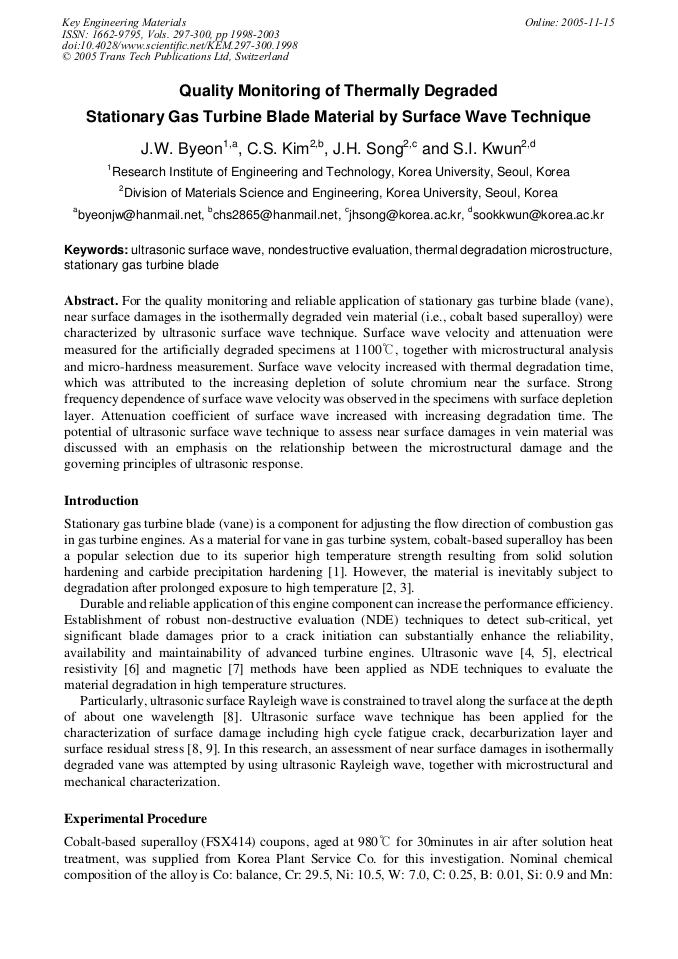

Quality Monitoring of Thermally Degraded Stationary Gas Turbine Blade Material by Surface Wave Technique

Abstract:

For the quality monitoring and reliable application of stationary gas turbine blade (vane), near surface damages in the isothermally degraded vein material (i.e., cobalt based superalloy) were characterized by ultrasonic surface wave technique. Surface wave velocity and attenuation were measured for the artificially degraded specimens at 1100°C, together with microstructural analysis and micro-hardness measurement. Surface wave velocity increased with thermal degradation time, which was attributed to the increasing depletion of solute chromium near the surface. Strong frequency dependence of surface wave velocity was observed in the specimens with surface depletion layer. Attenuation coefficient of surface wave increased with increasing degradation time. The potential of ultrasonic surface wave technique to assess near surface damages in vein material was discussed with an emphasis on the relationship between the microstructural damage and the governing principles of ultrasonic response.

• Periodical: Key Engineering Materials (Volumes 297-300)
• Pages: 1998-2003
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.297-300.1998
• Online since: November 2005
• Authors: Jai Won Byeon, C.S. Kim, J.H. Song, S.I. Kwun
• Keywords: Non-Destructive Evaluation (NDE), Stationary Gas Turbine Blade, Thermal Degradation Microstructure, Ultrasonic Surface Waves

References

[1] S.T. Sims, N.S. Stoloff and W.C. Hagel: Superalloy II (John Wiley & Sons Inc., USA 1987).

[2] General Electric Company: Advance Technology Gas Turbine Metallographic Handbook for FSX414 Nozzle Alloy (1984).

[3] KEPRI Technical Memo 99GC03. M2000. 323: Development of Life Assessment Technology for Gas Turbine Blade and Nozzle (2000).

[4] J.W. Byeon, J.H. Song and S.I. Kwun: Key Enging. Mater. Vol. 270-273 (2004), p.120.

[5] D. Schneider, A. Krell, T. Weiss and T. Reich: Acta Metall. Mater. Vol. 40 (1992), p.971.

[6] J.W. Byeon and S.I. Kwun: Mater. Trans. Vol. 44 (2003), p.1204.

[7] J.W. Byeon and S.I. Kwun: Mater. Letters Vol. 58 (2004), p.94.

[8] J. Krautkrämer and H. Krautkrämer: Ultrasonic Testing of Materials (Springer-Verlag, German 1990).

[9] O.V. Abramov: Ultrasound in Liquid and Solid Metals (CRC Press Inc., USA 1994).

[10] I.K. Park, U.S. Park, H.K. Ahn, S.I. Kwun and J.W. Byeon: Proc. 15th WCNDT, Rome (2000), p.125.

[11] J.F. Shackerford: Introduction to Materials Science for Engineers (Macmillan Publishing Company, New York, 1988).

[12] V.V. Murav'ev: Soviet J. of NDT Vol. 25 (1989), p.135.

[13] M. Vasudevan and S. Venkadesan: Scripta Metall. Mater. Vol. 30 (1994), p.1479.
