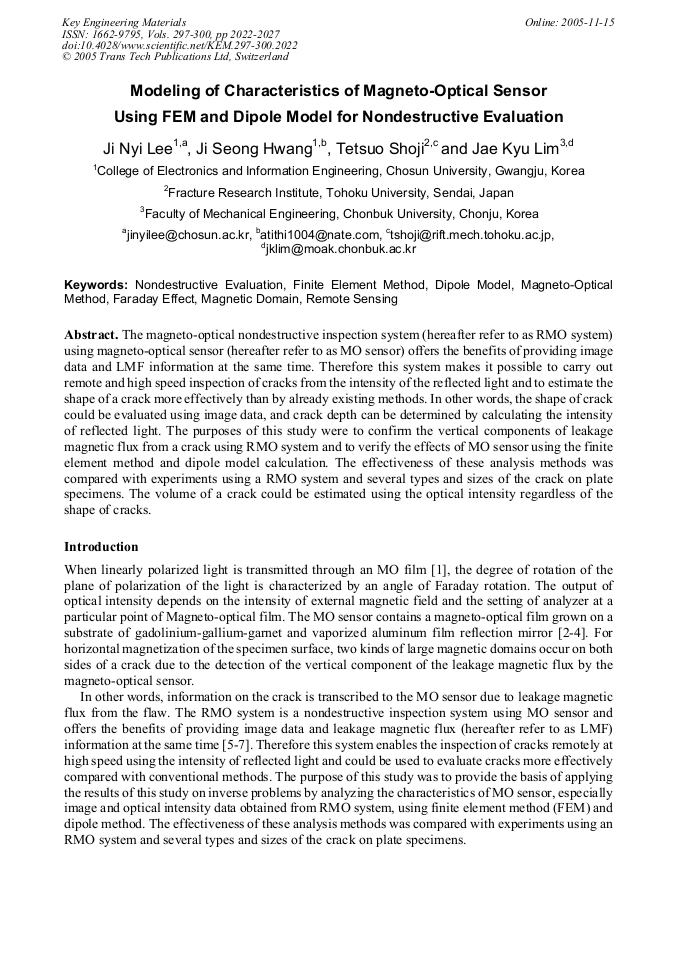

Modeling of Characteristics of Magneto-Optical Sensor Using FEM and Dipole Model for Nondestructive Evaluation

Abstract:

The magneto-optical nondestructive inspection system (hereafter refer to as RMO system) using magneto-optical sensor (hereafter refer to as MO sensor) offers the benefits of providing image data and LMF information at the same time. Therefore this system makes it possible to carry out remote and high speed inspection of cracks from the intensity of the reflected light and to estimate the shape of a crack more effectively than by already existing methods. In other words, the shape of crack could be evaluated using image data, and crack depth can be determined by calculating the intensity of reflected light. The purposes of this study were to confirm the vertical components of leakage magnetic flux from a crack using RMO system and to verify the effects of MO sensor using the finite element method and dipole model calculation. The effectiveness of these analysis methods was compared with experiments using a RMO system and several types and sizes of the crack on plate specimens. The volume of a crack could be estimated using the optical intensity regardless of the shape of cracks.

• Periodical: Key Engineering Materials (Volumes 297-300)
• Pages: 2022-2027
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.297-300.2022
• Online since: November 2005
• Authors: Jin Yi Lee, Ji Seoung Hwang, Tetsuo Shoji, Jae Kyoo Lim
• Keywords: Dipole Model, Faraday Effect, Finite Element Model (FEM), Magnetic Domain, Magneto-Optical Method, Non-Destructive Evaluation (NDE), Remote Sensing

References

[1] D.M. Gualtieri, S.M. Emo and T.R. Kinney: J. Appl. Phys. Vol. 69 (8) (1991), p.5978.

[2] J. Lee, T. Shoji, D. Minkov and M. Ishihara: Trans. JSME Vol. 64 (619) (1998), p.825.

[3] G.L. Fitzpatrick, D.K. Thome, R.L. Skaugset, E.Y. Shih and W.C. Shih: Proc. SPIE Vol. 2001 (1993), p.210.

[4] J. Lim, H. Lee, J. Lee and T. Shoji: KSME Int. J. Vol. 16 (5) (2002), p.591.

[5] J. Lee and T. Shoji: Nondestructive Char. of Mat. Vol. 10 (2000), p.327.

[6] J. Lee and T. Shoji: Proc. ASNT fall conf. (1998), p.183.

[7] J. Lee and T. Shoji: J. JSNDT Vol. 48 (4), p.231.

[8] J. Lee, S. Lyu and Y. Nam: KSME Int. J. Vol. 14 (10) (2000), p. 1072inyi.

[9] D. Minkov, J. Lee and T. Shoji: Mater. Eval. Vol. 58 (5) (2000), p.661.

[10] D. Minkov, J. Lee and T. Shoji: J. Magn. Magn. Mater. Vol. 217 (1-3), p.207.
