A Nondestructive Testing Method for Crack in Carbon Fiber Reinforced Concrete with Infrared Thermography

Abstract:

Based on the functional characteristics of carbon fiber reinforced concrete (CFRC), an improved infrared nondestructive testing method, to detect crack in CFRC by using infrared thermography, is presented in this paper. The principle is that when a CFRC specimen is applied a low voltage, crack existing in the specimen will result in non-homogeneous surface temperature distribution due to the electro-thermal effect of the material. Monitoring the temperature difference on the surface, the crack under the observed surface can be inspected by using infrared thermography. In theory, the mechanism causing the temperature difference comes down to an unsteady heat transfer problem with internal energy sources. In the case of the thermo-physical property of CFRC as given, the sensitivity of this method to the depth of the crack is analyzed by numerical computation.

You might also be interested in these eBooks

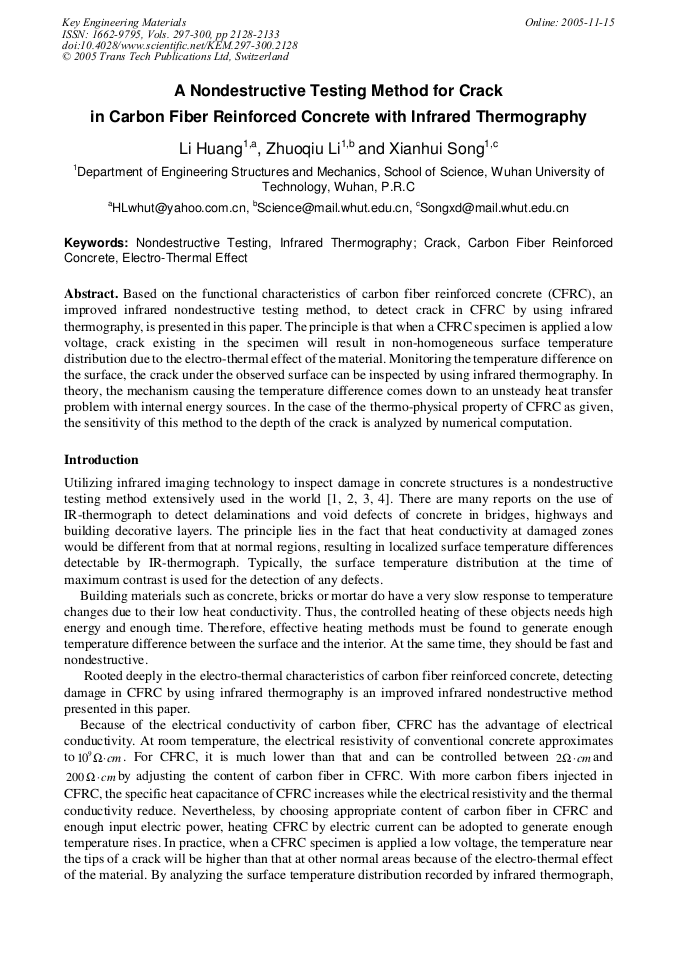

View Preview

Info:

Periodical:

Key Engineering Materials (Volumes 297-300)

Pages:

2128-2133

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.297-300.2128

Citation:

Cite this paper

Online since:

November 2005

Authors:

Li Huang, Zhuo Qiu Li, Xian Hui Song

Keywords:

Carbon Fiber Reinforced Concrete, Crack, Electro-Thermal Effect, Infrared Thermography (IRT), Nondestructive Testing (NDT)

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Oral Büyüköztürk: Imaging of concrete structures, NDT & E International Vol. 31 (1998), pp.233-243.

Google Scholar

[2] H. Wiggenhauser: Active IR-applications in civil engineering. Infrared Physics & Technology Vol. 43 (2002), pp.233-238.

DOI: 10.1016/s1350-4495(02)00145-7

Google Scholar

[3] Ch. Maierhofer, A. Brink and M. Röllig, et al: Transient thermography for structural investigation of concrete and composites in the near surface region, Infrared Physics & Technology Vol. 43 (2002), pp.271-278.

DOI: 10.1016/s1350-4495(02)00151-2

Google Scholar

[4] Terumi Inagaki, Toshimitsu Ishii and Toshikatsu Iwamoto: On the NDT and E for the diagnosis of defects using infrared thermography, NDT & E International Vol. 32 (1999), pp.247-257.

DOI: 10.1016/s0963-8695(98)00059-0

Google Scholar

[5] Lindon C. Thomas: Heat Transfer (Prentice Hall, Englewood Cliffs, New Jersey 1992).

Google Scholar

[6] Z.F. Hou, Z.Q. Li and S.L. Hu: A Finite Element Analysis for the Thermal Conductivity of Electrically Conductive Concrete, Journal of Experimental Mechanics Vol. 17 (2002), pp.464-469.

Google Scholar
