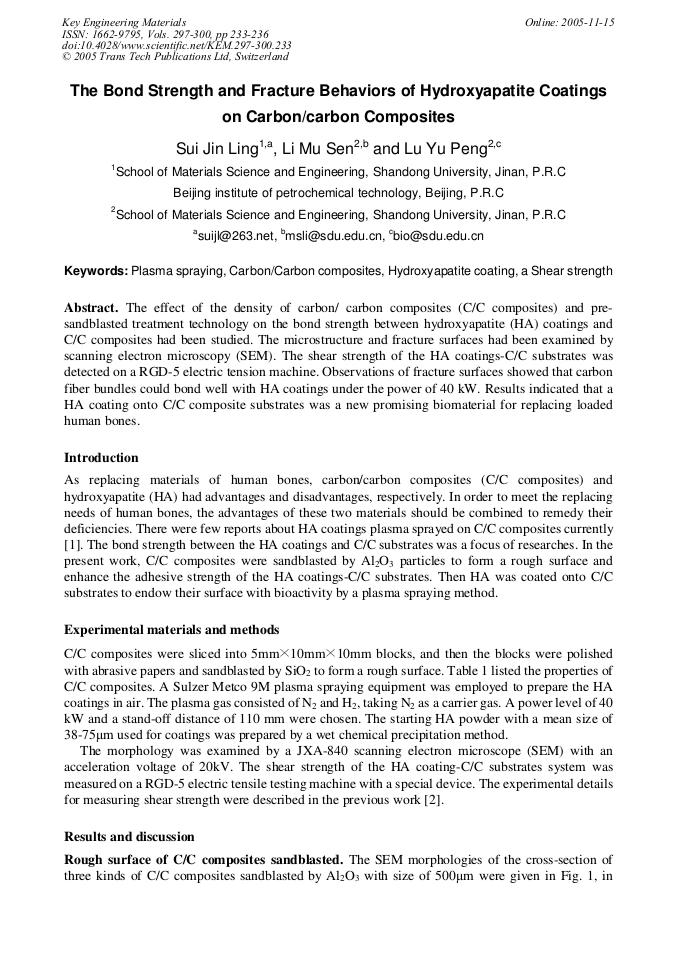

The Bond Strength and Fracture Behaviors of Hydroxyapatite Coatings on Carbon/Carbon Composites

Abstract:

The effect of the density of carbon/ carbon composites (C/C composites) and presandblasted treatment technology on the bond strength between hydroxyapatite (HA) coatings and C/C composites had been studied. The microstructure and fracture surfaces had been examined by scanning electron microscopy (SEM). The shear strength of the HA coatings-C/C substrates was detected on a RGD-5 electric tension machine. Observations of fracture surfaces showed that carbon fiber bundles could bond well with HA coatings under the power of 40 kW. Results indicated that a HA coating onto C/C composite substrates was a new promising biomaterial for replacing loaded human bones.

• Periodical: Key Engineering Materials (Volumes 297-300)
• Pages: 233-236
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.297-300.233
• Online since: November 2005
• Authors: Siu Jin Ling, Mu Sen Li, Lu Yu Peng
• Keywords: Carbon/Carbon Composite, Hydroxyapatite Coating, Plasma Spraying, Shear Strength

References

[1] G.L. Maistrelli, N. Mahomed and D. Garbuz: The Journal of Bone and Joint Surgery Vol. 74-B (1992), p.452.

[2] J.L. Sui, M.S. Li and Y.P. Lu: Surface and Coatings Technology Vol. 176 (2004), p.188.

[3] I.S. Leea, H.E. Kima and S.Y. Kimb: Surface and Coatings Technology Vol. 131 (2000), p.181.

[4] C.G. Zhang, Y. Leng and J.Y. Chen: biomaterials Vol. 22 (2001), p.1357.
