Effect of Interlayer Thickness on Strength and Fracture of Si3N4 and Inconel600 Joint

Min Yang; Zeng Da Zou; Si Li Song; Xin Hong Wang

doi:10.4028/www.scientific.net/KEM.297-300.2435

Paper Titles

An Experimental Measurement of Toughness Locus for a Ductile Material
p.2410

The Effect of Sample Preparation upon the Fracture Toughness of Microsized TiAl
p.2416

Study on the Effect of Compressive Residual Stress on Fracture Toughness of Spring Steel
p.2423

The Effect of Surface Treatment of Ti-6Al-4V Alloy Specimens
p.2429

Effect of Interlayer Thickness on Strength and Fracture of Si₃N₄ and Inconel600 Joint
p.2435

Shear Strength and Fracture Behavior of SiCw/Al2O3 Composite-Carbon Steel Brazed Joints
p.2441

Effect of Strain Rate Variation on Fatigue Life of Spot Welded Joint
p.2447

Effect of Mixing Process on the Fracture Behavior of HA/PLLA Composite Material
p.2453

A Study on Fracture Toughness of 9Al₂O₃2B_·2O₃/AC4CH Alloy Composites
p.2459

HomeKey Engineering MaterialsKey Engineering Materials Vols. 297-300Effect of Interlayer Thickness on Strength and...

Effect of Interlayer Thickness on Strength and Fracture of Si₃N₄ and Inconel600 Joint

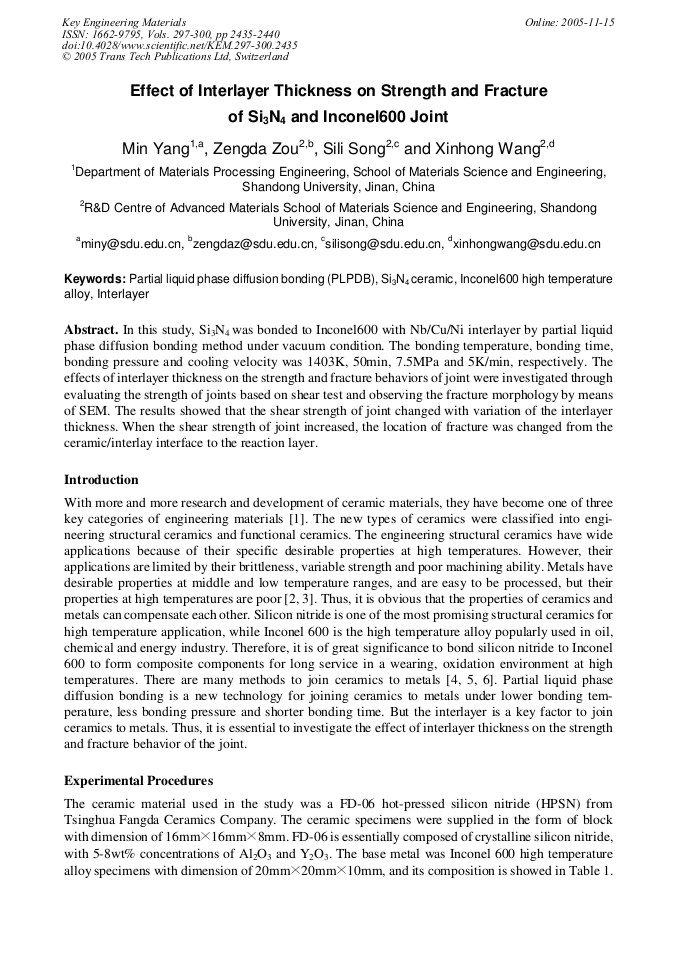

Abstract:

In this study, Si3N4 was bonded to Inconel600 with Nb/Cu/Ni interlayer by partial liquid phase diffusion bonding method under vacuum condition. The bonding temperature, bonding time, bonding pressure and cooling velocity was 1403K, 50min, 7.5MPa and 5K/min, respectively. The effects of interlayer thickness on the strength and fracture behaviors of joint were investigated through evaluating the strength of joints based on shear test and observing the fracture morphology by means of SEM. The results showed that the shear strength of joint changed with variation of the interlayer thickness. When the shear strength of joint increased, the location of fracture was changed from the ceramic/interlay interface to the reaction layer.
