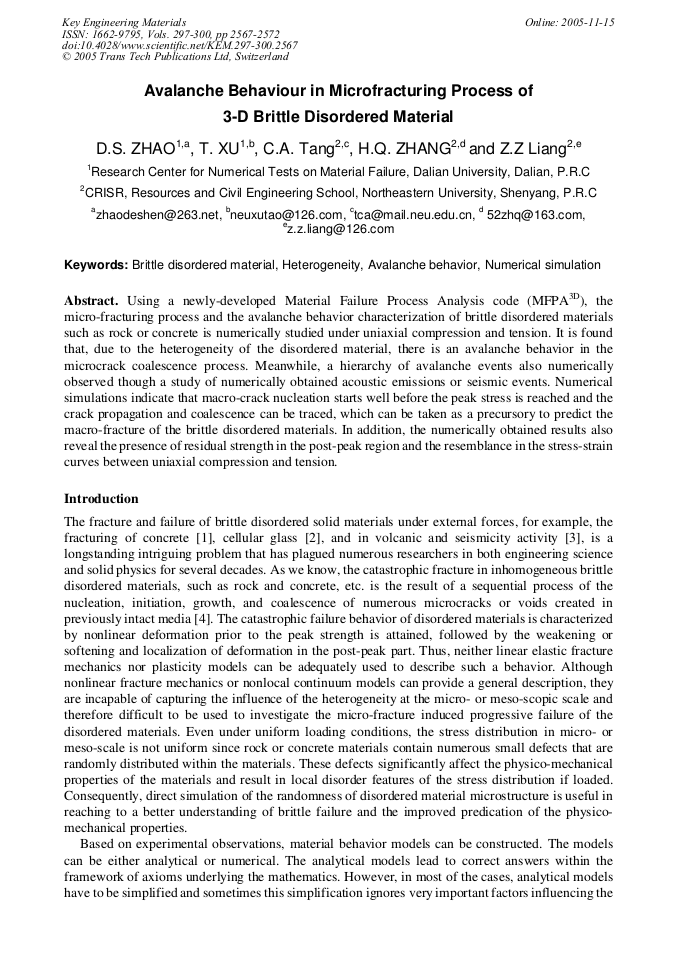

Avalanche Behaviour in Microfracturing Process of 3-D Brittle Disordered Material

Abstract:

Using a newly-developed Material Failure Process Analysis code (MFPA3D), the micro-fracturing process and the avalanche behavior characterization of brittle disordered materials such as rock or concrete is numerically studied under uniaxial compression and tension. It is found that, due to the heterogeneity of the disordered material, there is an avalanche behavior in the microcrack coalescence process. Meanwhile, a hierarchy of avalanche events also numerically observed though a study of numerically obtained acoustic emissions or seismic events. Numerical simulations indicate that macro-crack nucleation starts well before the peak stress is reached and the crack propagation and coalescence can be traced, which can be taken as a precursory to predict the macro-fracture of the brittle disordered materials. In addition, the numerically obtained results also reveal the presence of residual strength in the post-peak region and the resemblance in the stress-strain curves between uniaxial compression and tension.

• Periodical: Key Engineering Materials (Volumes 297-300)
• Pages: 2567-2572
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.297-300.2567
• Online since: November 2005
• Authors: De Shen Zhao, Tao Xu, Chun An Tang, Hou Quan Zhang, Zheng Zhao Liang
• Keywords: Avalanche Behavior, Brittle Disordered Material, Heterogeneity, Numerical Simulation

References

[1] A. Petri, G. Paparo, A. Vespignani, et al: Phys. Rev. Lett. Vol. 73 (1994), p.3423.

[2] C. Maes, A. Van Moffaert, H. Frederix and H. Strauven: Phys Rev. B. Vol. 57 (1998), p.4987.

DOI: 10.1103/physrevb.57.4987

[3] P. Diodati, F. Marchesoni and S. Piazza: Phys. Rev. Lett. Vol. 67 (1991), p.2239.

[4] D.R. Curran, L. Seaman and D.A. Shockey: Phys. Rep. Vol. 147 (1987).

[5] S.C. Blair and N.G.W. Cook: Int. J. Rock Mech. Min. Sci. Vol. 35 (1998), p.837.

[6] J.G.M. Van Mier: Fracture process of concrete (CRC Press, New York 1997), p.253.

[7] P.A. Cundall: Int. J. Rock Mech. Min. Sci. Vol. 25 (1998), p.107.

[8] R. Hart, P.A. Cundall and J. Lemos: Int. J. Rock Mech. Min. Sci. Vol. 25 (1988), p.117.

[9] A.R. Mohamed and W. Hansen: ACI Materials J. Vol. 96 (1999), p.196.

[10] C.A. Tang: Int. J. Rock Mech. Min. Sci. Vol. 34 (1997), p.249.

[11] C.A. Tang, P.K. Kaiser: Int. J. Rock Mech. & Min. Sci. Vol. 35 (1998), p.113.

[12] C.A. Tang, S.Q. Kou: Eng. Fract. Mech. Vol. 61 (1998), p.311.

[13] B.H.G. Brady and E.T. Brown: Rock Mechanics (Chapman & Hall, London 1993).

[14] D.A. Lockner, J.D. Byerlee, V. Kuksenko, et al: Nature Vol. 350 (1991), p.39.

[15] A. Zang, C.F. Wagner and G. Dresen: J. Geophys. Res. Vol. 101 (1996), p.17507.

[16] X.Y. Wu, P. Baud and T.F. Wong: Int. J. Rock Mech. Min. Sci. Vol. 37 (2000), p.143.
