Numerical Approach to Fracture Spacing in Two Layered Material

Xu Chang; Junjie Liu; Chun An Tang; Yong Bin Zhang; Juan Xia Zhang

doi:10.4028/www.scientific.net/KEM.297-300.750

Paper Titles

Analysis of Failure Criterion for Combustion Chamber with Notch Using Effective Distance
p.722

Basic Concept on Structural Design Criteria for Zirconia Ceramics Applying to Nuclear Components
p.728

Finite Element Analysis of Hydrogen Concentration for Blister Growth Estimation of CANDU Pressure Tube
p.734

Fatigue Life Prediction of Ship Welded Materials
p.743

Numerical Approach to Fracture Spacing in Two Layered Material
p.750

Effect of Strength Mismatch on Ductile Crack Initiation Behavior from Notch Root under Static Loading
p.756

Fatigue Life Evaluation Model for Welded Joints with Residual Stresses
p.762

Ductile to Brittle Transition of Pure Al Sheet Constrained by Parallel Bi-Interface with High Strength Al Alloy
p.768

Fatigue Analysis of Nuclear Welded Structures Based on Structural Stress and Elasto-Plastic Fracture Mechanics Approach
p.774

HomeKey Engineering MaterialsKey Engineering Materials Vols. 297-300Numerical Approach to Fracture Spacing in Two...

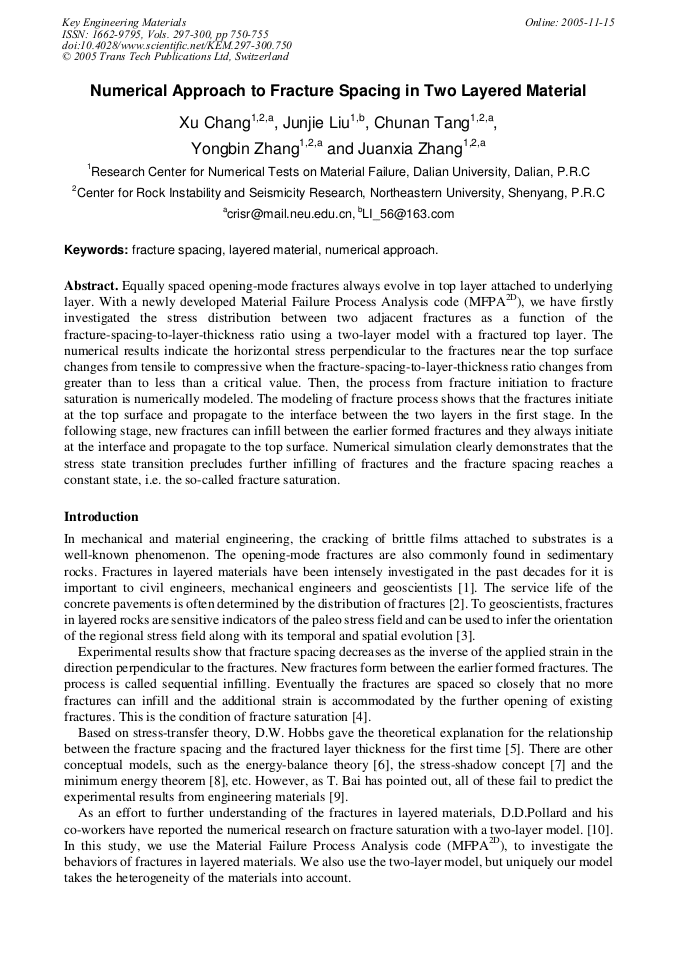

Numerical Approach to Fracture Spacing in Two Layered Material

Abstract:

Equally spaced opening-mode fractures always evolve in top layer attached to underlying layer. With a newly developed Material Failure Process Analysis code (MFPA2D), we have firstly investigated the stress distribution between two adjacent fractures as a function of the fracture-spacing-to-layer-thickness ratio using a two-layer model with a fractured top layer. The numerical results indicate the horizontal stress perpendicular to the fractures near the top surface changes from tensile to compressive when the fracture-spacing-to-layer-thickness ratio changes from greater than to less than a critical value. Then, the process from fracture initiation to fracture saturation is numerically modeled. The modeling of fracture process shows that the fractures initiate at the top surface and propagate to the interface between the two layers in the first stage. In the following stage, new fractures can infill between the earlier formed fractures and they always initiate at the interface and propagate to the top surface. Numerical simulation clearly demonstrates that the stress state transition precludes further infilling of fractures and the fracture spacing reaches a constant state, i.e. the so-called fracture saturation.
