Synthesis and Evaluation of Electrochemical Properties of Mesoporous Anatase Titania

Tomomi Okada; Masaru Miyayama

doi:10.4028/www.scientific.net/KEM.301.151

Paper Titles

Lithium Intercalation Properties of Octatitanates Composed of Nanosheets with Various Dimensions
p.135

High-Rate Charge-Discharge Performances of β-FeOOH-Carbon Composite Electrodes
p.139

Enhancement on Proton Conductivity of Three-Dimensionally Ordered Macroporous Silica Membrane by Surface Sulfonation
p.143

Preferential Orientation Dependent Mechanical and Electrical Properties in Naβ-Alumina Ceramics
p.147

Synthesis and Evaluation of Electrochemical Properties of Mesoporous Anatase Titania
p.151

Evaluation of Electrode Performances of Single-Chamber Solid Oxide Fuel Cells
p.155

High-Rate Charge/Discharge Properties of Li Ion Secondary Battery Using V₂O₅/Carbon Composite Electrodes with Carbon Fiber
p.159

Synthesis and Characterization of (La_1-xSr_x)(Ga_1-yMg_y)O₃ Particles by Spray Pyrolysis
p.163

Synthesis and Lithium Battery Properties of LiM(M=Fe,Al,Mg)_xMn_2-xO₄ Powders by Spray Pyrolysis
p.167

HomeKey Engineering MaterialsKey Engineering Materials Vol. 301Synthesis and Evaluation of Electrochemical...

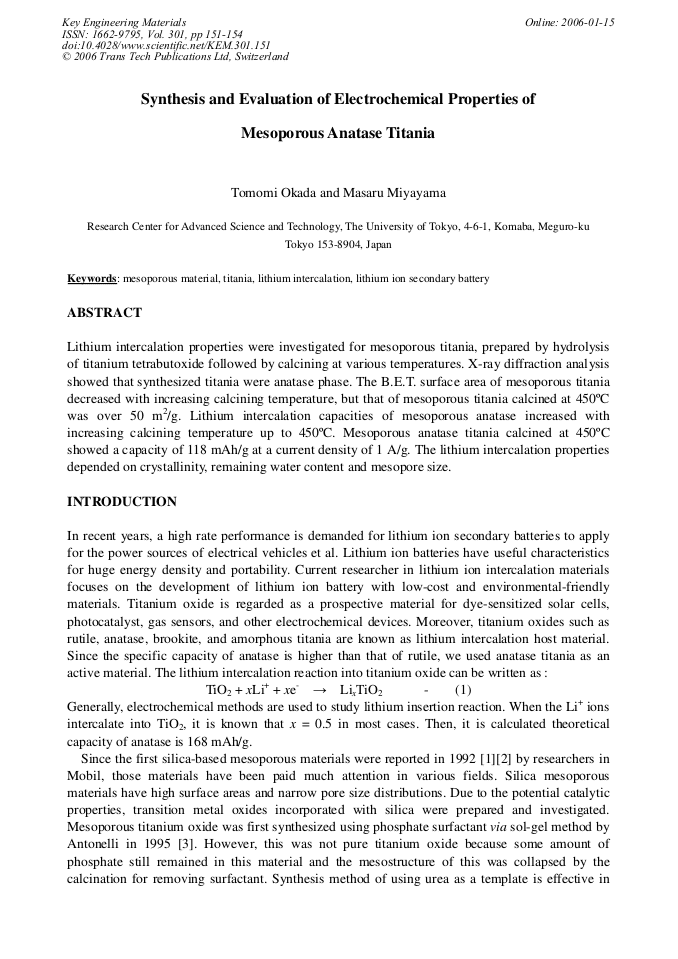

Synthesis and Evaluation of Electrochemical Properties of Mesoporous Anatase Titania

Abstract:

Lithium intercalation properties were investigated for mesoporous titania, prepared by hydrolysis of titanium tetrabutoxide followed by calcining at various temperatures. X-ray diffraction analysis showed that synthesized titania were anatase phase. The B.E.T. surface area of mesoporous titania decreased with increasing calcining temperature, but that of mesoporous titania calcined at 450°C was over 50 m2/g. Lithium intercalation capacities of mesoporous anatase increased with increasing calcining temperature up to 450°C. Mesoporous anatase titania calcined at 450°C showed a capacity of 118 mAh/g at a current density of 1 A/g. The lithium intercalation properties depended on crystallinity, remaining water content and mesopore size.
