Lithium Intercalation Properties of Octatitanates Composed of Nanosheets with Various Dimensions

Shinya Suzuki; Masaru Miyayama

doi:10.4028/www.scientific.net/KEM.301.135

Paper Titles

Fabrication of Microstrip Band Pass Filters in GHz Region by Aerosol Deposition Process
p.117

Measurements of Microwave Dielectric Property of Dielectric Thin Layers Using Micro-Sized Planar Electrodes
p.121

Reflection Intensity Measurement for Dielectric Material Using a Microwave Single Probe and Its Electromagnetic Field Analysis
p.125

Dielectric Spectra of BaTiO₃-Based Ceramics Measured by Impedance Analyzer Using Micro Planar Electrodes
p.129

Lithium Intercalation Properties of Octatitanates Composed of Nanosheets with Various Dimensions
p.135

High-Rate Charge-Discharge Performances of β-FeOOH-Carbon Composite Electrodes
p.139

Enhancement on Proton Conductivity of Three-Dimensionally Ordered Macroporous Silica Membrane by Surface Sulfonation
p.143

Preferential Orientation Dependent Mechanical and Electrical Properties in Naβ-Alumina Ceramics
p.147

Synthesis and Evaluation of Electrochemical Properties of Mesoporous Anatase Titania
p.151

HomeKey Engineering MaterialsKey Engineering Materials Vol. 301Lithium Intercalation Properties of Octatitanates...

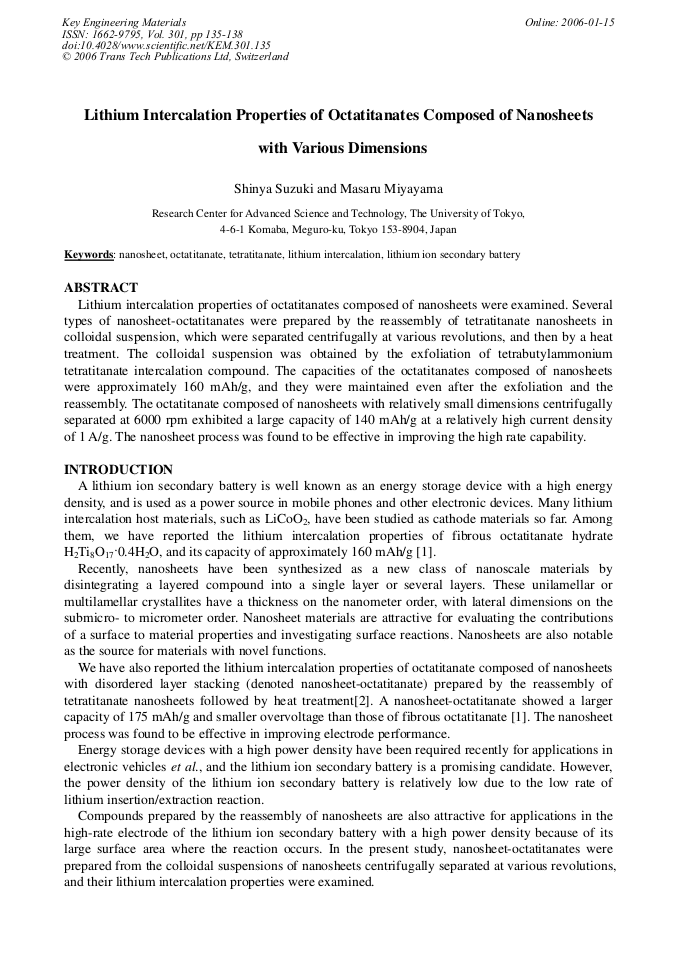

Lithium Intercalation Properties of Octatitanates Composed of Nanosheets with Various Dimensions

Abstract:

Lithium intercalation properties of octatitanates composed of nanosheets were examined. Several types of nanosheet-octatitanates were prepared by the reassembly of tetratitanate nanosheets in colloidal suspension, which were separated centrifugally at various revolutions, and then by a heat treatment. The colloidal suspension was obtained by the exfoliation of tetrabutylammonium tetratitanate intercalation compound. The capacities of the octatitanates composed of nanosheets were approximately 160 mAh/g, and they were maintained even after the exfoliation and the reassembly. The octatitanate composed of nanosheets with relatively small dimensions centrifugally separated at 6000 rpm exhibited a large capacity of 140 mAh/g at a relatively high current density of 1 A/g. The nanosheet process was found to be effective in improving the high rate capability.
