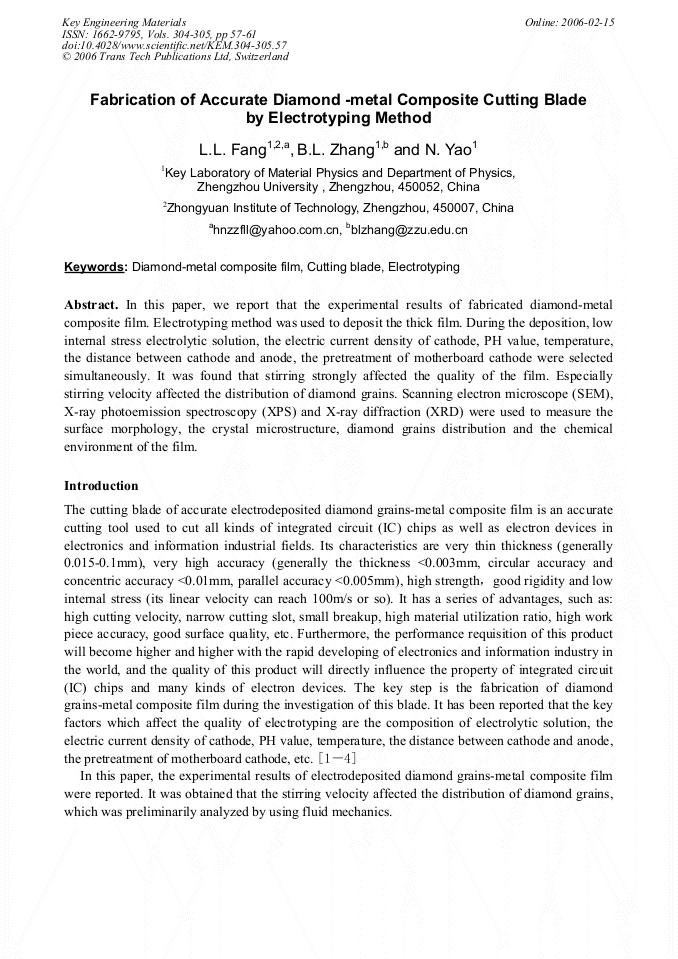

Fabrication of Accurate Diamond - Metal Composite Cutting Blade by Electrotyping Method

Abstract:

In this paper, we report that the experimental results of fabricated diamond-metal composite film. Electrotyping method was used to deposit the thick film. During the deposition, low internal stress electrolytic solution, the electric current density of cathode, PH value, temperature, the distance between cathode and anode, the pretreatment of motherboard cathode were selected simultaneously. It was found that stirring strongly affected the quality of the film. Especially stirring velocity affected the distribution of diamond grains. Scanning electron microscope (SEM), X-ray photoemission spectroscopy (XPS) and X-ray diffraction (XRD) were used to measure the surface morphology, the crystal microstructure, diamond grains distribution and the chemical environment of the film.

• Periodical: Key Engineering Materials (Volumes 304-305)
• Pages: 57-61
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.304-305.57
• Online since: February 2006
• Authors: L.L. Fang, Bing Lin Zhang, Ning Yao
• Keywords: Cutting Blade, Diamond-Metal Composite Film, Electrotyping

References

[1] H.S. Karayianni, G.S. Patermarkis and J.C. Papaioannou: Materials Letters, Vol. 53 (2002), pp.91-101.

[2] Z.R. Liu: Surface Technology Vol. 29 (2000) No. 6, p.30 (Chinese).

[3] I.J. Brown, D. Clift and S. Sotiropoulos: Material Research Bulletin, Vol. 34 (1999) No. 7, pp.1055-1064.

[4] S.E. Hadian and D.R. Gabe: Surface and Coating Technology, Vol. 122 (1999), pp.118-135.

[5] J. Filik, P.W. May, S.R.J. Pearce, R.K. Wild and K.R. Hallam: Diamond and Related Materials, Vol. 12 (2003), pp.974-978.

DOI: 10.1016/s0925-9635(02)00374-6

[6] H.X. Lang, M.Q. Li: China Powder Science and Technology, Vol. 8 (2002) No. 4, pp.1-5.

[7] L.Y. Chu and W.M. Chen: Revolving Stream Apparatus by Waterpower (Chemic Industry Publishing Company, China 1998).
