Preparation of β-TCP/HAP Composite Bioceramics

Tong Jun Liu; De An Yang; Li Zhi Di

doi:10.4028/www.scientific.net/KEM.336-338.1642

Paper Titles

Improvement of Anti-Washout Performance of Calcium Phosphate Cement Using Modified Starch
p.1628

Electrochemically Assisted Co-Precipitation of Electrically Conducting Polymer with Calcium Phosphate Coatings on Ti Alloys
p.1632

Degradation Behavior of Calcium Sulfate/β-Tricalcium Phosphate Composites in Tris
p.1635

Exploring the Osteoinductivity of Calcium Phosphate Ceramics/PLA or Collagen Composites
p.1638

Preparation of β-TCP/HAP Composite Bioceramics
p.1642

Preparation and Characterization of Biodegradable β-TCP-Based Composite Microspheres as Bone Tissue Engineering Scaffolds
p.1646

Degradation Behavior of β-Ca₃ (PO₄)₂/β-Ca₂P₂O₇ Bioceramics
p.1650

Physicochemical and Mechanical Properties of Composite of Chitosan Microspheres/Calcium Phosphate Cement
p.1654

Rheological Properties of an Injectable Calcium Phosphate Bone Cement and their Relationship with the Phase Evolution
p.1658

HomeKey Engineering MaterialsKey Engineering Materials Vols. 336-338Preparation of β-TCP/HAP Composite Bioceramics

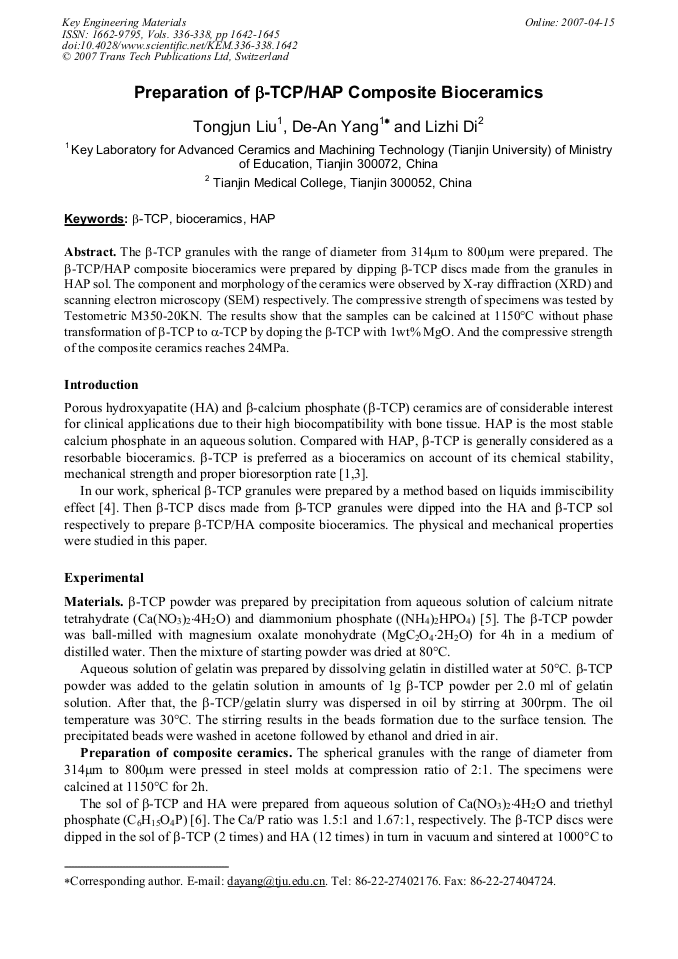

Preparation of β-TCP/HAP Composite Bioceramics

Abstract:

The β-TCP granules with the range of diameter from 314μm to 800μm were prepared. The β-TCP/HAP composite bioceramics were prepared by dipping β-TCP discs made from the granules in HAP sol. The component and morphology of the ceramics were observed by X-ray diffraction (XRD) and scanning electron microscopy (SEM) respectively. The compressive strength of specimens was tested by Testometric M350-20KN. The results show that the samples can be calcined at 1150°C without phase transformation of β-TCP to α-TCP by doping the β-TCP with 1wt% MgO. And the compressive strength of the composite ceramics reaches 24MPa.
