Preparation of TiO2 Nanocrystalline Films by Electrophoretic Deposition and their Application in Dye-Sensitized Solar Cells

Ning Wang; Hong Lin; Jian Bao Li; Xiao Zhan Yang; Luo Zheng Zhang; Yin Dou

doi:10.4028/www.scientific.net/KEM.336-338.2193

Paper Titles

Fabrication of LaNiO₃ Chain-Like Ceramics from Nanocable Precursors
p.2179

Preparation and Characterization of Cerium Hydrate Fiber
p.2182

Preparation of a Novel Carbon Nano-Material Studded Iron Granules from Needle Coke by Arc Method
p.2186

Synthesis and Characterization of Refluxed Sols and TiO₂ Thin Films Using TiOSO₄
p.2189

Preparation of TiO₂ Nanocrystalline Films by Electrophoretic Deposition and their Application in Dye-Sensitized Solar Cells
p.2193

Dye-Sensitized Nanocrystalline TiO₂ Ceramic Film and its Photoelectricity Property
p.2196

In Situ Template Synthesis of TiO₂ Nanotube Array Films
p.2200

Anticorrosion Behaviours of the TiO₂ / WO₃ Composite Photoelectrodes for 304 Stainless Steel
p.2203

Hydrothermal Conversion Deposition of ZnFe₂O₄ Doped TiO₂ Thin Films and their Photovoltaic Response
p.2207

HomeKey Engineering MaterialsKey Engineering Materials Vols. 336-338Preparation of TiO2 Nanocrystalline Films by...

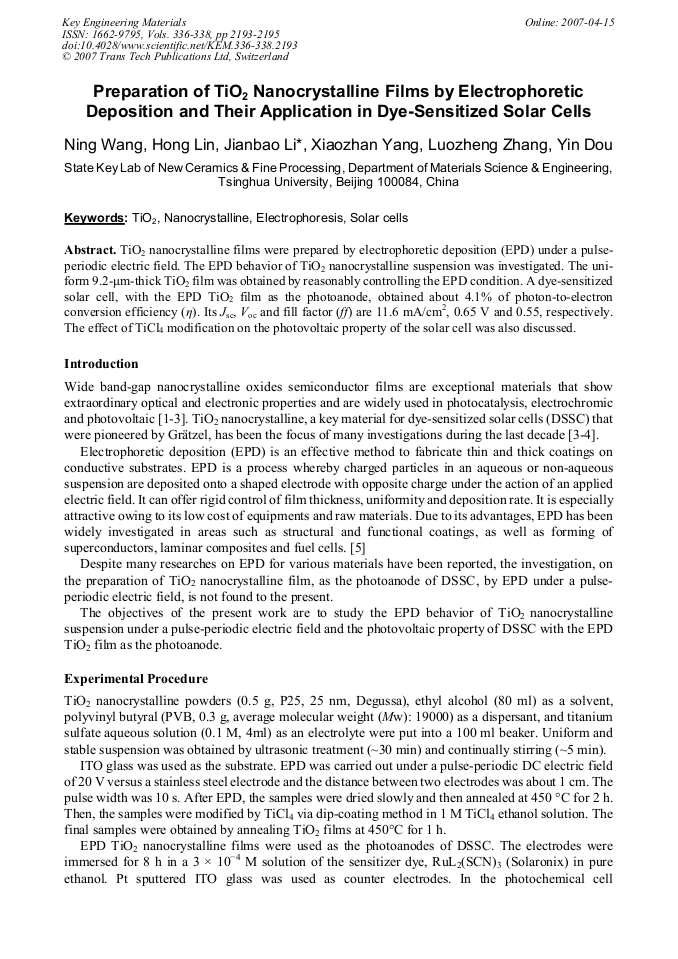

Preparation of TiO₂ Nanocrystalline Films by Electrophoretic Deposition and their Application in Dye-Sensitized Solar Cells

Abstract:

TiO2 nanocrystalline films were prepared by electrophoretic deposition (EPD) under a pulseperiodic electric field. The EPD behavior of TiO2 nanocrystalline suspension was investigated. The uniform 9.2-μm-thick TiO2 film was obtained by reasonably controlling the EPD condition. A dye-sensitized solar cell, with the EPD TiO2 film as the photoanode, obtained about 4.1% of photon-to-electron conversion efficiency (η). Its Jsc, Voc and fill factor (ff) are 11.6 mA/cm2, 0.65 V and 0.55, respectively. The effect of TiCl4 modification on the photovoltaic property of the solar cell was also discussed.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Key Engineering Materials (Volumes 336-338)

Pages:

2193-2195

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.336-338.2193

Citation:

Cite this paper

Online since:

April 2007

Authors:

Ning Wang, Hong Lin, Jian Bao Li, Xiao Zhan Yang, Luo Zheng Zhang, Yin Dou

Keywords:

Electrophoresis, Nanocrystalline, Solar Cell, Titania (TiO₂)

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] K. Vinodaopal, S. Hotchandani and P.V. Kamat: J. Phys. Chem. Vol. 97 (1993), p.9040.

Google Scholar

[2] X. Marguerettaz, R. O'Neill and D. Fitzmaurice: J. Am. Chem. Soc. Vol. 116 (1994), p.2629.

Google Scholar

[3] B. O'Regan and M. Grätzel: Nature Vol. 353 (1991), p.737.

Google Scholar

[4] M. K. Nazeeruddin, A. Kay, I. Rodicio, et al.: J. Am. Chem. Soc. Vol. 115 (1993), p.6382.

Google Scholar

[5] P. Sarkar and P. S. Nicholson: J. Am. Ceram. Soc. Vol. 79 (8) (1996), pp. (1987).

Google Scholar

[6] D. De and P. S. Nicholson: Ibid. Vol. 82 (11) (1999), p.3031.

Google Scholar

[7] C. J. Barbé, F. Arendse, P. Comte, et al.: J. Am. Ceram. Soc. Vol. 80 (1997), p.3157. Fig. 4 Photocurrent-photovoltage curves for our DSSC with TiCl4 modification (dashed line) and without (solid line).

Google Scholar
