Analysis of the Process of AA-6201 Feedstock Using Continuous Casting and Extrusion

Abstract:

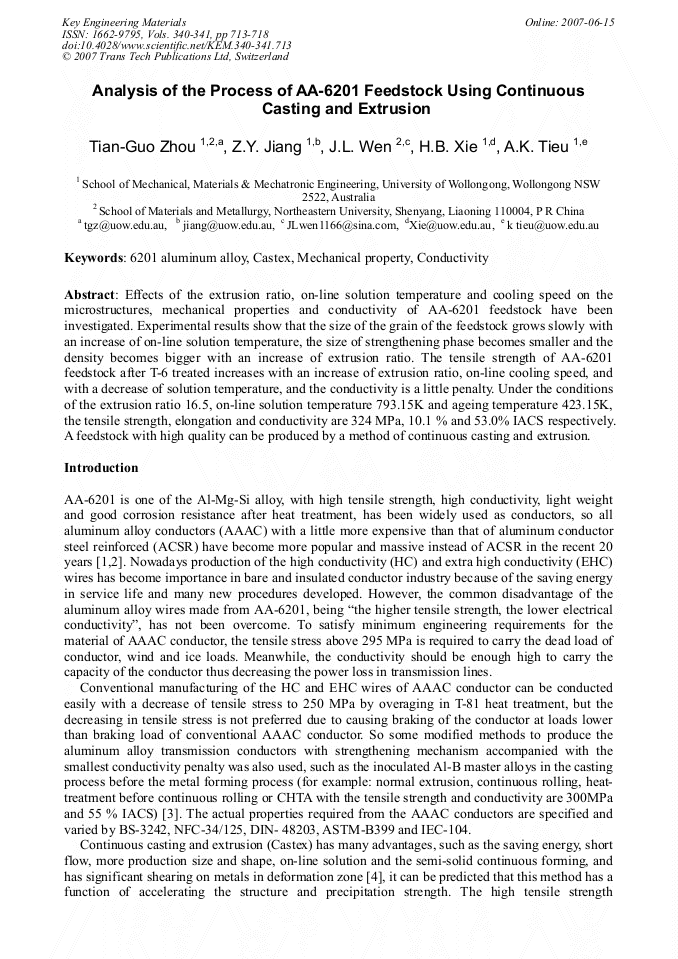

Article Preview

Effects of the extrusion ratio, on-line solution temperature and cooling speed on the microstructures, mechanical properties and conductivity of AA-6201 feedstock have been investigated. Experimental results show that the size of the grain of the feedstock grows slowly with an increase of on-line solution temperature, the size of strengthening phase becomes smaller and the density becomes bigger with an increase of extrusion ratio. The tensile strength of AA-6201 feedstock after T-6 treated increases with an increase of extrusion ratio, on-line cooling speed, and with a decrease of solution temperature, and the conductivity is a little penalty. Under the conditions of the extrusion ratio 16.5, on-line solution temperature 793.15K and ageing temperature 423.15K, the tensile strength, elongation and conductivity are 324 MPa, 10.1 % and 53.0% IACS respectively. A feedstock with high quality can be produced by a method of continuous casting and extrusion.

Info:

Periodical:

Key Engineering Materials (Volumes 340-341)

Edited by:

N. Ohno and T. Uehara

Pages:

713-718

Citation:

T. G. Zhou et al., "Analysis of the Process of AA-6201 Feedstock Using Continuous Casting and Extrusion", Key Engineering Materials, Vols. 340-341, pp. 713-718, 2007

Online since:

June 2007

Export:

Price:

$38.00

[1] Sedat Karabay: Materials & Design, in press (2006).

[2] S. Karabay, M. Zeren, M. Yilmaz: Journal of Materials Processing Technology Vol. 135(2003), p.101.

[3] Y.Z. Zhang, H. ZHang, D.A. Peng, Y.Y. Liu: The Chinese Journal of Nonferrous Metal Vol. 10(4) (2000), p.525.

[4] J.L. Wen, R.G. Guan, X.H. Liu: Chinese Journal of Materials Research Vol. 17(1) (2003), p.55.

[5] X.J. Duan, T. Sheppard: Material Science and Engineering Vol. A351 (2003), p.282.

[6] J.L. Cavazos, R. Colás: Materials Science and Engineering Vol. A363 (2003), p.171.

[7] J.L. Cavazos, R. Colás: Materials Characterization Vol. 47(2001), p.175.

[8] M. Murayama, K. Hono: Acta mater Vol. 47(5) (1999), p.1537.

[9] A.K. Gupta, D.J. Lloyd, S.A. Court: Materials Science and Engineering Vol. A316 (2001), p.11.

[10] R.A. Siddiqui, H.A. Abdullah: Journals of Materials Processing Technology Vol. 102 (2000), p.234.
