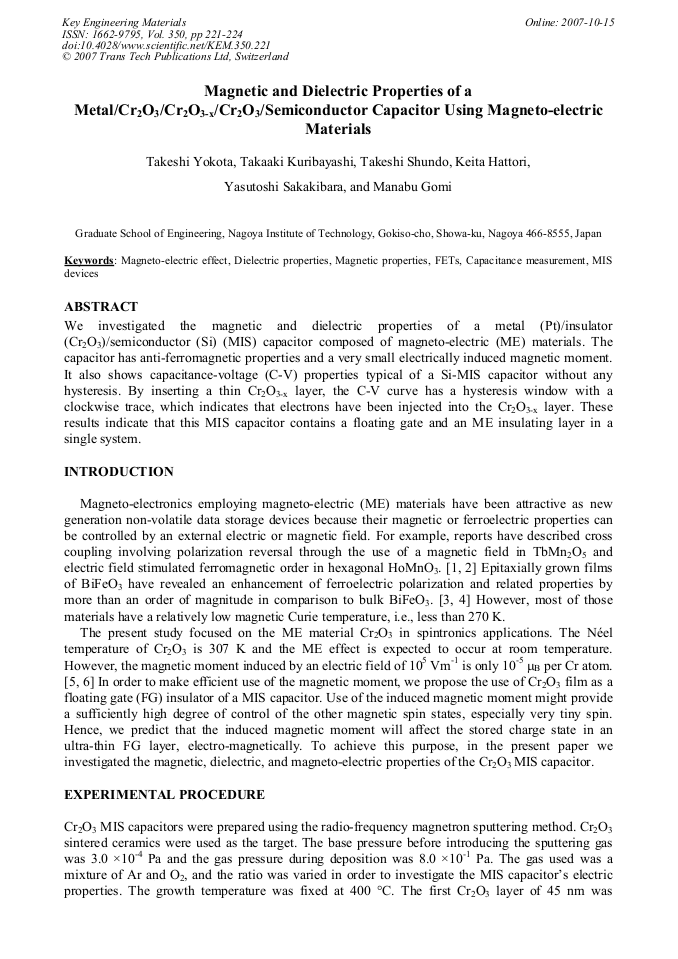

Magnetic and Dielectric Properties of a Metal/ Cr₂O₃/Cr₂O_3-x/Cr₂O₃/Semiconductor Capacitor Using Magneto-Electric Materials

Abstract:

We investigated the magnetic and dielectric properties of a metal (Pt)/insulator (Cr2O3)/semiconductor (Si) (MIS) capacitor composed of magneto-electric (ME) materials. The capacitor has anti-ferromagnetic properties and a very small electrically induced magnetic moment. It also shows capacitance-voltage (C-V) properties typical of a Si-MIS capacitor without any hysteresis. By inserting a thin Cr2O3-x layer, the C-V curve has a hysteresis window with a clockwise trace, which indicates that electrons have been injected into the Cr2O3-x layer. These results indicate that this MIS capacitor contains a floating gate and an ME insulating layer in a single system.

• Periodical: Key Engineering Materials (Volume 350)
• Pages: 221-224
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.350.221
• Online since: October 2007
• Authors: Takeshi Yokota, Takaaki Kuribayashi, Takeshi Shundo, Keita Hattori, Yasutoshi Sakakibara, Manabu Gomi
• Keywords: Capacitance Measurement, Dielectric Property, FET, Magnetic Property, Magneto-Electric Effect, MIS Devices

References

[1] N. Nur, S. Park, P. A. Sharma, J. S. Ahn, S. Guha, and S-W. Cheong, Nature 429(2004), p.392.

[2] T. Lottermoser, T. Lonkai, U. Amann, D. Hohlwein, J. Ihringer, and M. Fiebig, Nature 430(2004), p.541.

DOI: 10.1038/nature02728

[3] J. Wang, J. B. Neaton, H. Zheng, V. Nagarajan, S. B. Ogale, B. Liu, D. Viehland, V. Vaithyanathan, D. G. Schlom, U. V. Waghmare, N. A. Spaldin, K. M. Rabe, M, Wuttig, R. Ramesh, Science 299(2003), p.1719.

DOI: 10.1126/science.1080615

[4] Y. K. Yun, M. Noda, and M. Okuyama, Appl. Phys. Lett. 83(2003), p.3981.

[5] S. Shtrikman and D. Treves, Phys. Rev. 130(1963), p.986.

[6] E. Kita, A. Tasaki, and K. Siratori, Jpn. J. Appl, Phys. 18(1979), p.1361.

[7] T. Yokota, T. Kuribayashi, M. Gomi, T. Shundo, and Y. Sakakibara, Advanced Materials Research 11-12(2006), p.133.

[8] A, K, Agyei and J. L. Birman, J. Phys.: Condens. Matter 2(1990), p.3007.

[9] P. H. Fang and W. S. Brower, Phys. Rev. 129(1963), p.1561.

[10] S. Minami and Y. Kamigaki, IEEE Trans. Electron Devices 38(1991), p.2519.

[11] S. Nakata, K. Saito, and M. Shimada, Appl. Phys. Lett. 87(2005), p.2231101.
