Measurement of Delamination Strength of Thermal Barrier Coating at High Temperature by Edge-Indent Test

Keijiro Nakasa; Masahiko Kato; Bo Zhang; Noriyuki Akitake

doi:10.4028/www.scientific.net/KEM.353-358.1290

Paper Titles

Investigation on the Primary Si Phase Solidification and the Properties of SiC_w/Al-18Si Composites
p.1275

Effect of Interphase on Properties of Reaction Sintering C_f/SiC Composites
p.1279

Influence of Extrusion Temperature on Microstructures and Mechanical Properties of Bi₂O₃-Coated Al₁₈B₄O₃₃ Whisker Reinforced Al Composites
p.1283

Effect of Temperature on Strain Softening Behavior of Composites with Small Misaligned Whiskers
p.1287

Measurement of Delamination Strength of Thermal Barrier Coating at High Temperature by Edge-Indent Test
p.1290

Analytical Solutions for Residual Stresses of Functionally Graded Medium with Inhomogeneity
p.1294

Damage Monitoring of Thick CFRP Beam Using Electrical Impedance Changes
p.1298

Biodegradable Composites Based on Polylactic Acid (PLA) and China Jute Fiber
p.1302

Free Vibration of Composite Annular Plates Embedded with SMA Fibers in the Circumferential Direction
p.1306

HomeKey Engineering MaterialsKey Engineering Materials Vols. 353-358Measurement of Delamination Strength of Thermal...

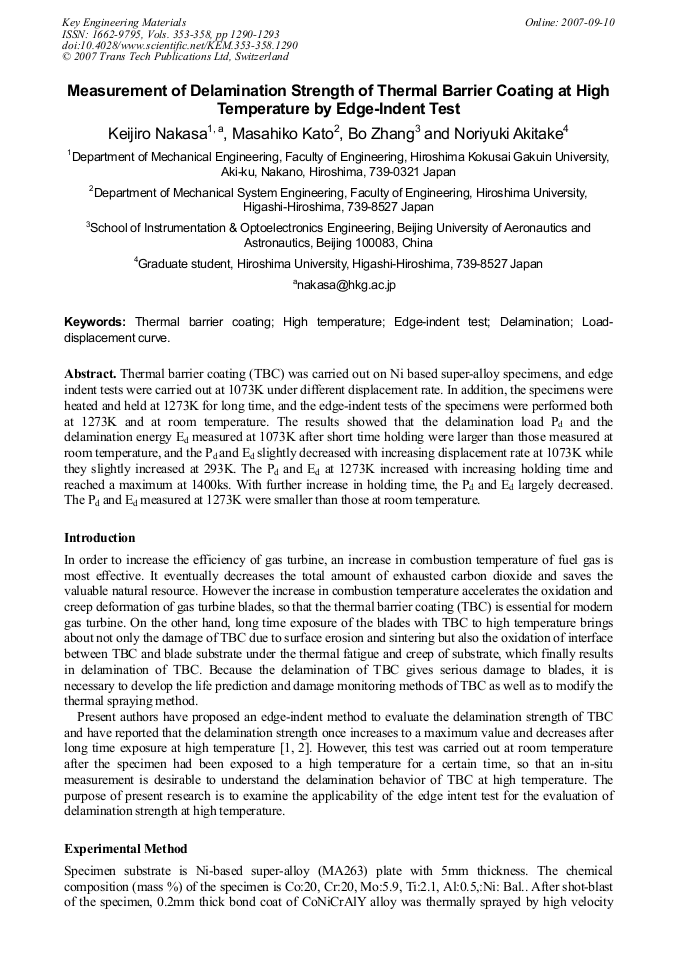

Measurement of Delamination Strength of Thermal Barrier Coating at High Temperature by Edge-Indent Test

Abstract:

Thermal barrier coating (TBC) was carried out on Ni based super-alloy specimens, and edge indent tests were carried out at 1073K under different displacement rate. In addition, the specimens were heated and held at 1273K for long time, and the edge-indent tests of the specimens were performed both at 1273K and at room temperature. The results showed that the delamination load Pd and the delamination energy Ed measured at 1073K after short time holding were larger than those measured at room temperature, and the Pd and Ed slightly decreased with increasing displacement rate at 1073K while they slightly increased at 293K. The Pd and Ed at 1273K increased with increasing holding time and reached a maximum at 1400ks. With further increase in holding time, the Pd and Ed largely decreased. The Pd and Ed measured at 1273K were smaller than those at room temperature.
