Influence of Fiber Orientation and Volume Fraction on Tensile Strength and Fatigue Life of CARALL Hybrid Composite

Abstract:

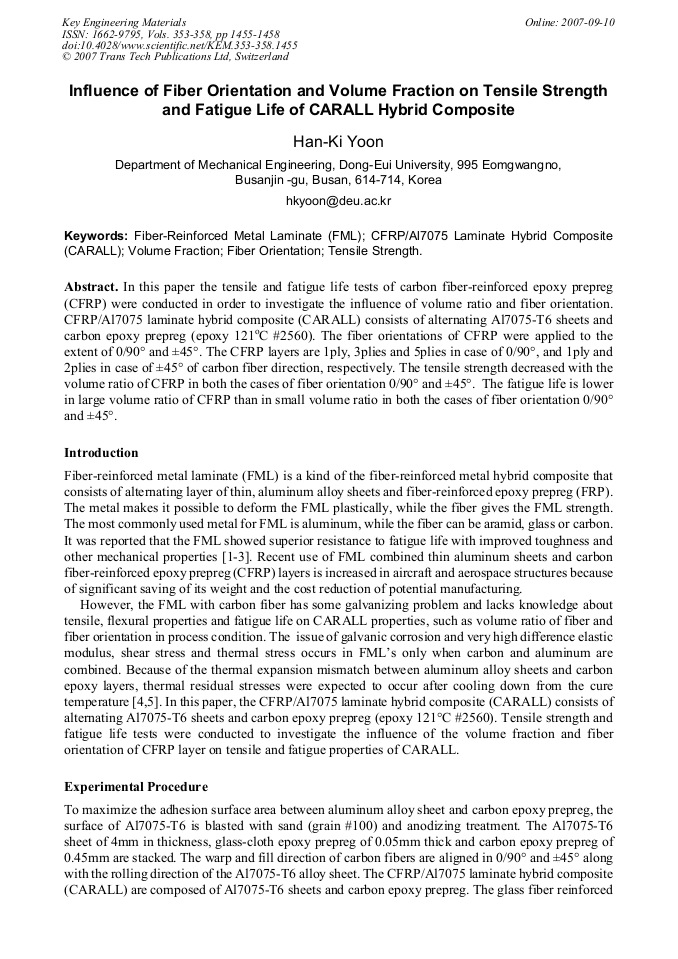

Article Preview

In this paper the tensile and fatigue life tests of carbon fiber-reinforced epoxy prepreg (CFRP) were conducted in order to investigate the influence of volume ratio and fiber orientation. CFRP/Al7075 laminate hybrid composite (CARALL) consists of alternating Al7075-T6 sheets and carbon epoxy prepreg (epoxy 121oC #2560). The fiber orientations of CFRP were applied to the extent of 0/90° and ±45°. The CFRP layers are 1ply, 3plies and 5plies in case of 0/90°, and 1ply and 2plies in case of ±45° of carbon fiber direction, respectively. The tensile strength decreased with the volume ratio of CFRP in both the cases of fiber orientation 0/90° and ±45°. The fatigue life is lower in large volume ratio of CFRP than in small volume ratio in both the cases of fiber orientation 0/90° and ±45°.

Info:

Periodical:

Key Engineering Materials (Volumes 353-358)

Edited by:

Yu Zhou, Shan-Tung Tu and Xishan Xie

Pages:

1455-1458

Citation:

H. K. Yoon "Influence of Fiber Orientation and Volume Fraction on Tensile Strength and Fatigue Life of CARALL Hybrid Composite", Key Engineering Materials, Vols. 353-358, pp. 1455-1458, 2007

Online since:

September 2007

Authors:

Export:

Price:

$38.00

[1] K. Y. Rhee, J. H. Yang, C. S. Yoon, N. S. Choi: A Study on the CFRP Treatment by Ion Assisted Reaction Method to Improve T-peel Strength of CFRP/Aluminum Composites. Journal A of KSME. (2002), pp.570-575.

DOI: https://doi.org/10.3795/ksme-a.2002.26.3.570

[2] S.W. Oh, H.K. Yoon, W.J. Park, K.B. Lee and C.W. Hur. The effect of bridging on fatigue crack growth behavior in Aramid Patched Aluminum alloy (APAL). Journal of KSME. Vol. 8. No. 4, (1994), pp.375-384.

DOI: https://doi.org/10.1007/bf02944710

[3] Osamu Haga and Minoru Kimura. Tensile properties of Al/CFRP multi layered hybrid composite materials. J. of materials. Japan. Vol. 35. No. 399, (1986), pp.1411-1417.

DOI: https://doi.org/10.2472/jsms.35.1411

[4] R. Marissen. Flight simulation behavior of aramid reinforced aluminum laminates(ARALL). Engineering Fracture Mechanics. Vol. 19. No. 2. (1984), pp.261-277.

DOI: https://doi.org/10.1016/0013-7944(84)90021-3

[5] L. B. Vogelesang. Designing a new hybrid materials by combining high strength aluminum alloys and aramid fibers (preliminary results). Delft University Report B2-80-6. (1980).

[6] G. Roderic. Crack propagation in aluminum sheets reinforced with boron-epoxy. Ph. D. 1978. Old Dominion University. University Microfilms International. Ann. Arbor. Michigan. U.S.A., London, England, (1978).
