In Situ X-Ray Stress Measurement in Electrodeposited Cu Foils under Tensile and Fatigue Loading

Yoshiaki Akiniwa; Tsuyoshi Suzuki; K. Tanaka

doi:10.4028/www.scientific.net/KEM.353-358.2395

Paper Titles

Development of Signal Processing Circuit of a Magnetic Camera for the NDT of a Paramagnetic Material
p.2379

Development of Numerical Analysis Software for the NDE by Using Dipole Model
p.2383

Understanding and Detecting Early Stages of SCC Initiation in Sensitized Stainless Steel by Means of Electrochemical Potential Transients
p.2387

Non-Destructive Evaluation of Creep Damage of Ni-Based Superalloy Using A Scanning Blue Laser Microscope
p.2391

In Situ X-Ray Stress Measurement in Electrodeposited Cu Foils under Tensile and Fatigue Loading
p.2395

Analysis of High Active AE Signal by Continuous Waveform Recorder
p.2399

In-Process Damage Monitoring and Stress Analysis of Thermal Spray Coating
p.2403

Pressurized Water Corrosion Resistance of Carbon Steels and Their Nondestructive Characterization
p.2407

An Evaluation on Corrosion Effect of Carbon Steel Using the NDT
p.2411

HomeKey Engineering MaterialsKey Engineering Materials Vols. 353-358In Situ X-Ray Stress Measurement in...

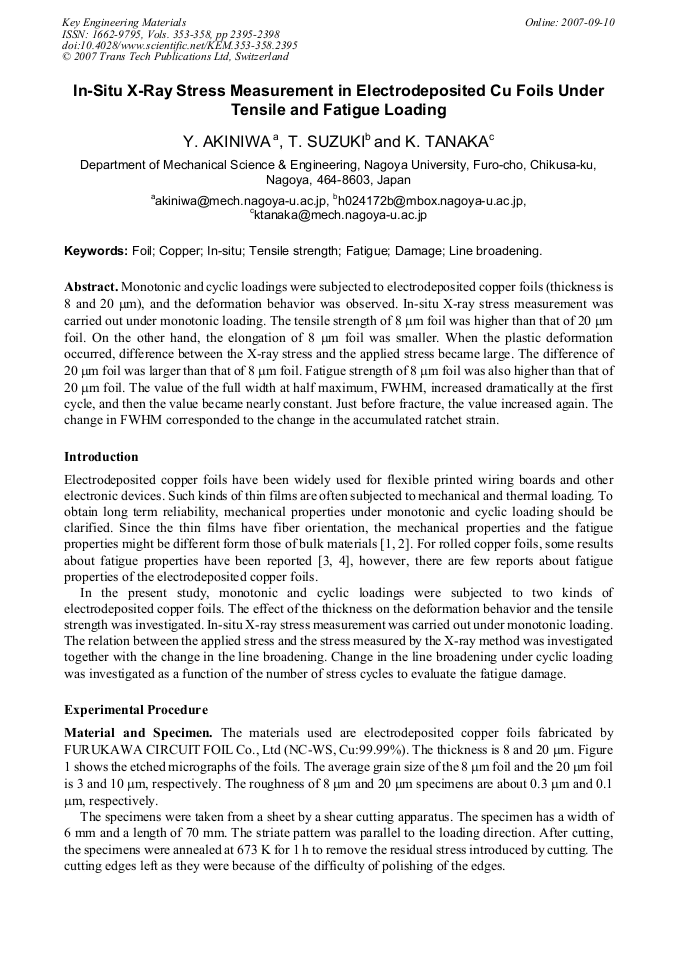

In Situ X-Ray Stress Measurement in Electrodeposited Cu Foils under Tensile and Fatigue Loading

Abstract:

Monotonic and cyclic loadings were subjected to electrodeposited copper foils (thickness is 8 and 20 μm), and the deformation behavior was observed. In-situ X-ray stress measurement was carried out under monotonic loading. The tensile strength of 8 μm foil was higher than that of 20 μm foil. On the other hand, the elongation of 8 μm foil was smaller. When the plastic deformation occurred, difference between the X-ray stress and the applied stress became large. The difference of 20 μm foil was larger than that of 8 μm foil. Fatigue strength of 8 μm foil was also higher than that of 20 μm foil. The value of the full width at half maximum, FWHM, increased dramatically at the first cycle, and then the value became nearly constant. Just before fracture, the value increased again. The change in FWHM corresponded to the change in the accumulated ratchet strain.

You might also be interested in these eBooks

Progresses in Fracture and Strength of Materials and Structures

View Preview

Info:

Periodical:

Key Engineering Materials (Volumes 353-358)

Pages:

2395-2398

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.353-358.2395

Citation:

Cite this paper

Online since:

September 2007

Authors:

Yoshiaki Akiniwa, Tsuyoshi Suzuki, K. Tanaka

Keywords:

Copper (Cu), Damage, Fatigue, Foil, In Situ, Line Broadening, Tensile Strength

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] M. Hommel and O. Kraft, Acta Materialia, Vol. 49 (2001), p.3935.

Google Scholar

[2] M. Klein, A. Hadrboletz, B. Weiss and G. Khatibi, Materials Science and Engineering, Vol. A319-321(2001), p.924.

Google Scholar

[3] T. Torii, K. Shimizu and A. Nakamura, The Japan Society of Mechanical Engineers (A), Vol. 65, No. 631(1999), p.46.

Google Scholar

[4] K. Shimizu and T. Torii, The Japan Society of Mechanical Engineers (A), Vol. 69, No. 679(2003), p.654.

Google Scholar

[5] R. Z. Valiev, I. V. Alexandrov, Y. T. Zhu and T. C. Lowe, Journal of Materials Research, Vol. 17, No. 1(2002), p.5 Fig. 6 Change in FWHM with fatigue cycles Fig. 7 Change in FWHM with nominal strain.

Google Scholar
