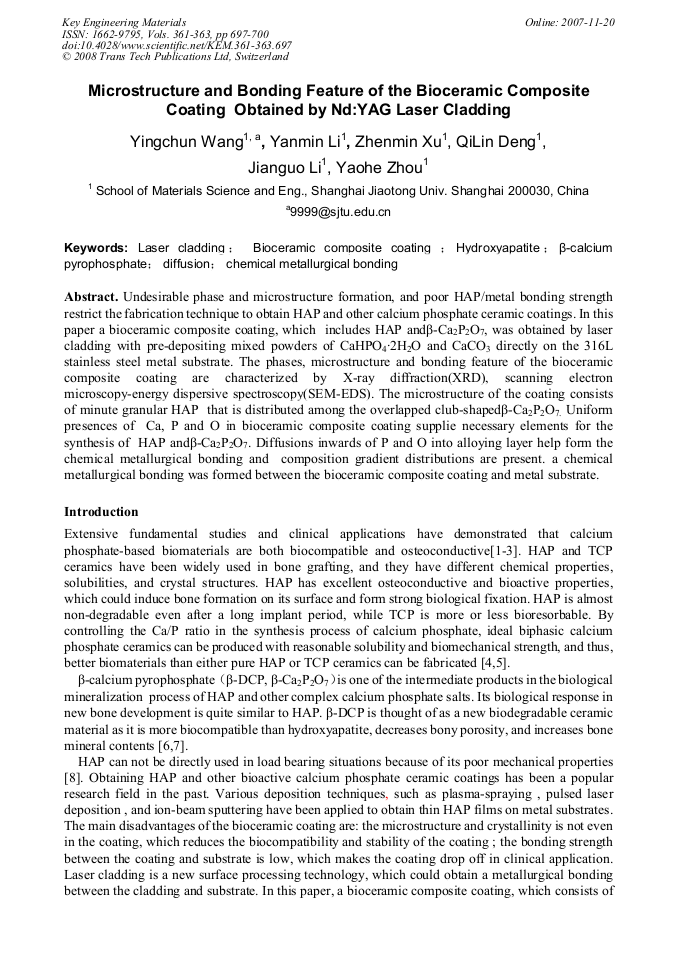

Microstructure and Bonding Feature of the Bioceramic Composite Coating Obtained by Nd: YAG Laser Cladding

Abstract:

Undesirable phase and microstructure formation, and poor HAP/metal bonding strength restrict the fabrication technique to obtain HAP and other calcium phosphate ceramic coatings. In this paper a bioceramic composite coating, which includes HAP andβ-Ca2P2O7, was obtained by laser cladding with pre-depositing mixed powders of CaHPO4·2H2O and CaCO3 directly on the 316L stainless steel metal substrate. The phases, microstructure and bonding feature of the bioceramic composite coating are characterized by X-ray diffraction(XRD), scanning electron microscopy-energy dispersive spectroscopy(SEM-EDS). The microstructure of the coating consists of minute granular HAP that is distributed among the overlapped club-shapedβ-Ca2P2O7. Uniform presences of Ca, P and O in bioceramic composite coating supplie necessary elements for the synthesis of HAP andβ-Ca2P2O7. Diffusions inwards of P and O into alloying layer help form the chemical metallurgical bonding and composition gradient distributions are present. a chemical metallurgical bonding was formed between the bioceramic composite coating and metal substrate.

• Periodical: Key Engineering Materials (Volumes 361-363)
• Pages: 697-700
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.361-363.697
• Online since: November 2007
• Authors: Ying Chun Wang, Yan Min Li, Zhen Min Xu, Qi Lin Deng, Jian Guo Li, Yao He Zhou
• Keywords: Beta-Calcium Pyrophosphate, Bioceramic Composite Coating, Chemical Metallurgical Bonding, Diffusion, Hydroxyapatite (HAP), Laser Cladding

References

[1] T. Kitsugi, T. Yamamuro, T. Nakamura, S. Kotani, T. Toshiaki Kokubo and H. Takeuchi: Biomaterials Vol. 14(1993）p.216.

DOI: 10.1016/0142-9612(93)90026-x

[2] L. Clèries, J.M. Fernndez-Pradas and J. L. Morenza: J. Biomed. Mater. Res. Vol 49(1) (2000) 43-52.

[3] X. Zhang: Bioceramics and the Human Body (Elsevier Science, Amsterdam 1991).

[4] F.H. Lin, C.C. Lin and C.M. Lu: Biomaterials Vol. 16(1995), p.793.

[5] C.Y. Wang, Y. R. Duan and B. Markovic: Biomaterials Vol. 25(2004), p.2507.

[6] F.H. Lin, C.C. Lin and C.M. Lu: Biomaterials Vol. 16(1995), p.793.

[7] J.S. Sun, Y.H. Tsuang and C.J. Liao: J. Biomed. Mater. Res. Vol. 37 (1997), p.324.

[8] L.L. Hench, J. Wilson: An Introduction to Bioceramics (World Scientific, Singapore 1993) Ca P O Fe Cr Mn Ni Ti a - 10. 00 25. 91 42. 03 10. 75 0. 47 10. 84 - b 6. 28 3. 23 53. 84 26. 17 9. 41 1. 85 1. 22 - c 24. 23 6. 17 54. 32 5. 24 4. 31 - - 1. 61 Table1. EDS analysis of a, b and c position between the bioceramic coating and alloying layer.
