Evaluating Frequency Error Property of Wavefront of Large Optics by PSD Collapse

Abstract:

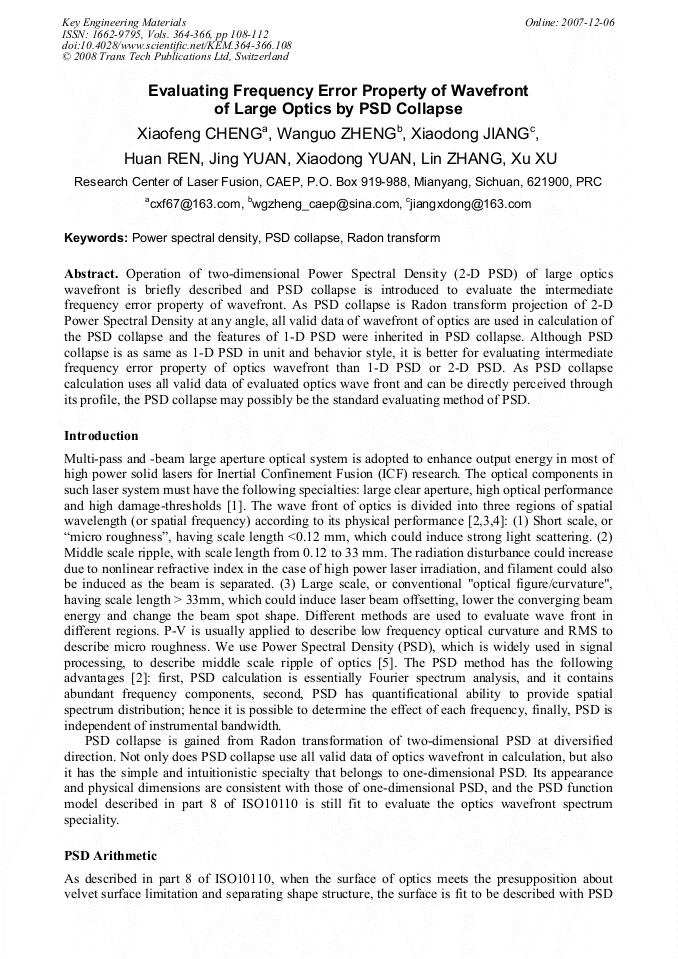

Article Preview

Operation of two-dimensional Power Spectral Density (2-D PSD) of large optics wavefront is briefly described and PSD collapse is introduced to evaluate the intermediate frequency error property of wavefront. As PSD collapse is Radon transform projection of 2-D Power Spectral Density at any angle, all valid data of wavefront of optics are used in calculation of the PSD collapse and the features of 1-D PSD were inherited in PSD collapse. Although PSD collapse is as same as 1-D PSD in unit and behavior style, it is better for evaluating intermediate frequency error property of optics wavefront than 1-D PSD or 2-D PSD. As PSD collapse calculation uses all valid data of evaluated optics wave front and can be directly perceived through its profile, the PSD collapse may possibly be the standard evaluating method of PSD.

Info:

Periodical:

Key Engineering Materials (Volumes 364-366)

Edited by:

Guo Fan JIN, Wing Bun LEE, Chi Fai CHEUNG and Suet TO

Pages:

108-112

Citation:

X. F. Cheng et al., "Evaluating Frequency Error Property of Wavefront of Large Optics by PSD Collapse", Key Engineering Materials, Vols. 364-366, pp. 108-112, 2008

Online since:

December 2007

Export:

Price:

$41.00

[1] Qiao Xu, Yuanyuan Gu and Lin Cai: High Power Laser and Particle Beams. 2001(3), p.344.

[2] Yingjie YU, Guopei LI: ACTA METROLOGICA SINICA. 2003(4), p.103.

[3] Weixing Shen, Deyan Xu: High Power Laser and Particle Beams. 2000(8), p.392.

[4] R. E. English: Optical Sytem Design[R], UCRL-LR-105821-97-3, p.122.

[5] D. M. Aikens, C. R. Wolfe, J. K. Lawson: Proc. SPIE, Vol. 2576(1995), p.281.

[6] ISO10110, Optics and optical instruments-Preparation of drawings for optical elements and systems-Part8: Surface Texture [S], (1997).

[7] J. M. Elson, J. M. Bennett: Applied Optics, Vol. 34(1995), p.201.

[8] Li Yang: Advanced optics manufacturing technology. Science publishing company, Beijing (2001), in press.

[9] R. Galigekere, D. Holdsworth, M. Swamy: Opt. Eng., Vol. 39(2000), p.1088.

[10] Kun Zhou, Junquan Yuan, Xiangyi Gong: MATLAB 6. x Signal Processing. Tsinghua University Publishing Company, Beijing(2002), in press.

[11] Rongzhu Zhang, Chunlin Yang, qiao Xu: High Power Laser and Particle Beams. 2004 (8), p.1021.

[12] Yongjian Liu: Signal and Linearity System (recension). The People's Post Publishing Company, Beijing(2002), in press.

[13] J. K. Lawson, C. R. Wolfe: Proc SPIE, Vol. 2536(1995), p.33.
